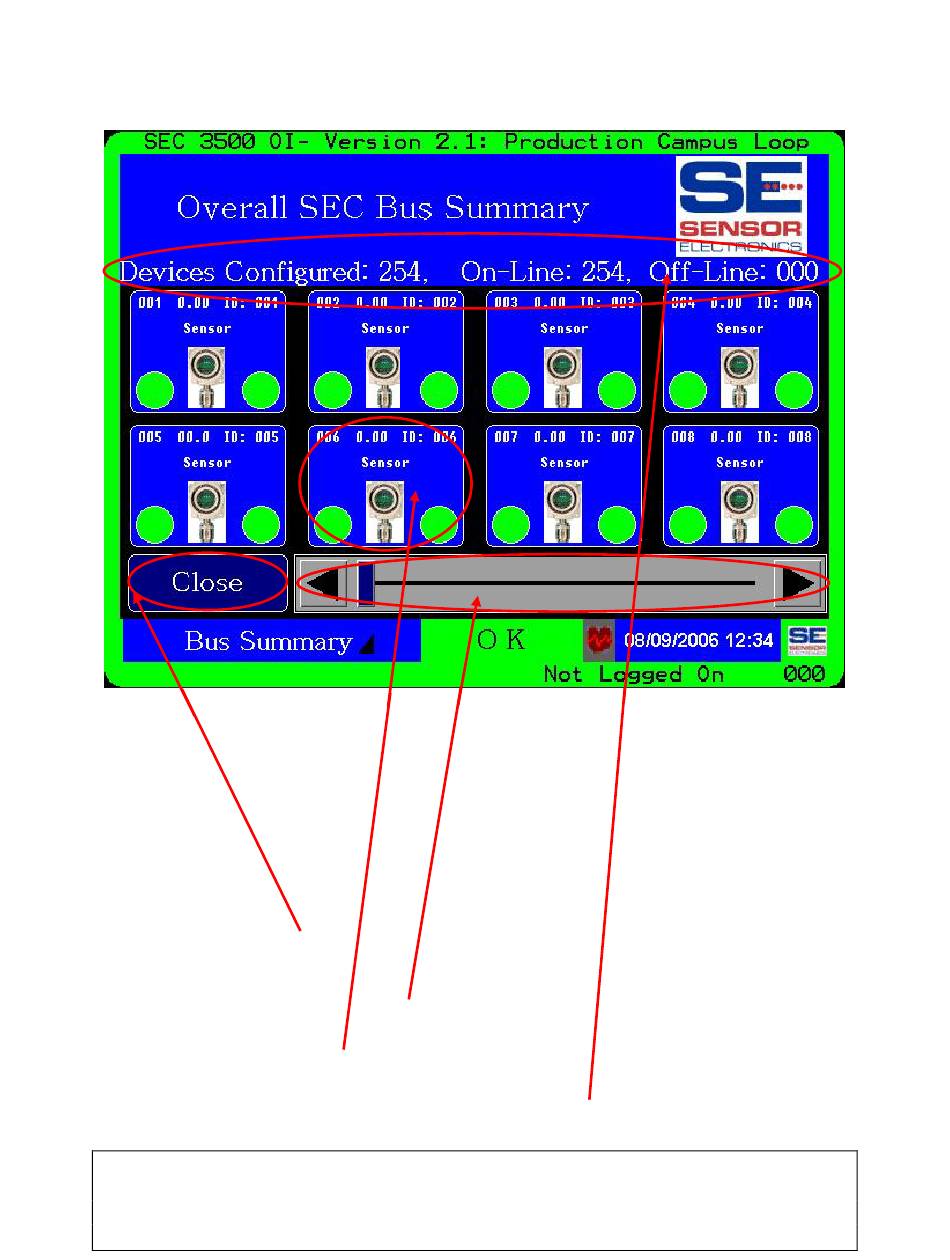

Bus Summary Screen

1) The Bus Summary Screen displays all Level 1 status information for all devices
connected to the SEC 3500 Modbus Loop for this panel, regardless of zone
assignments.
2 ) The borders of the screen act identically to all other normal operational screens such
as the Main Zone Summary screen- they indicate the global loop alarm status.
3) Likewise, the bottom status bar acts just as the Main Zone Summary screen, in that it
indicates the Login status, clock, communication activity, Global Loop alarm status
text, screen title, main menu SEC logo and navigation toggling between this screen
and Main Zone Summary by pressing the screen title button above.
4) By pressing the "Close" button, as previously described in section 4.3.2. The Main
Zone Summary screen will be returned to as well.
5) Just as in the Zone Details screen, up to eight icons depict the device status of each
device, eight at a time and scrollable from beginning to end, eight at a time.
6) Navigation to the Device Summary screen is also identical to the Zone Details screen,
just select the desired device box and press it- the Device Summary Screen will
appear. Likewise, the same information is also displayed in the device status boxes.
7) The top information box indicates the TOTAL devices configured on this panel's
Modbus 485 loop, as well as those on-line and off-line.
