Device Summary Screen; Top Level Device Information - Sensor Electronics SEC Millenium Series Instruction And Operation Manual

4.7

Device Summary Screen

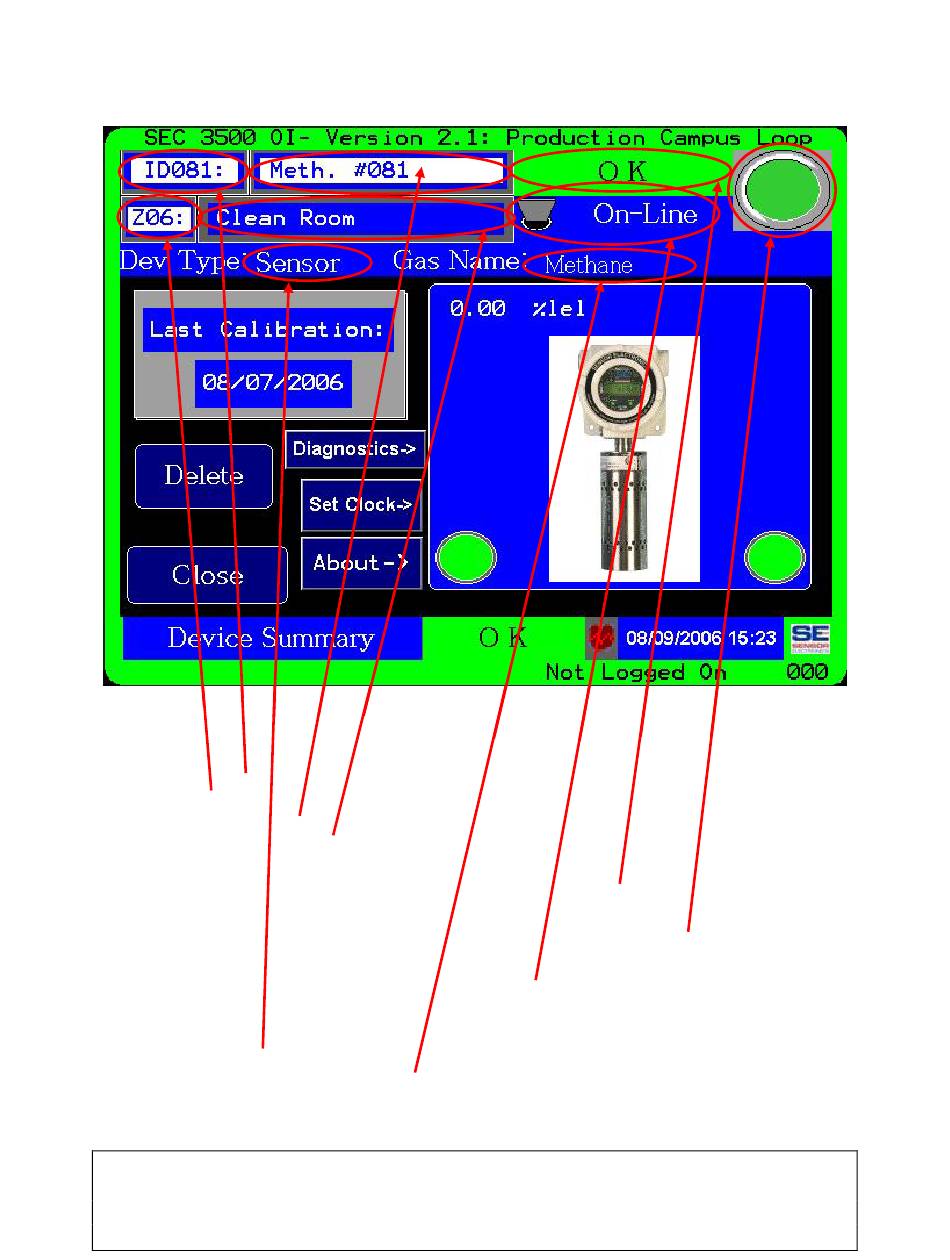

4.7.1 Top Level Device Information

1) Network ID- This is the SEC 3500 Modbus 485 Loop network ID for this device.
2) Zone ID- This is the SEC 3500 Zone this device is assign
3) Device Description- This is a short name given to describe the device.
4) Zone Name- This is same name that appears on Zone Details and Zone Summary, and
can be modified be selecting it here and entering a new name with the popup keypad.
5 ) Device Alarm Status Text- This is the specific device alarm status- NOT the zone or
global alarm status text!
6) Device Alarm Status Icon- This is the specific device alarm status- NOT the zone or
glob al alarm status text! Note: Pressing this icon will mute the alarm speaker.
7) Device On-Line Status- Indicates if the
panel, or is deemed off-line by the panel. This Icon is Up when on-line, down when
off-line.
8) Device Type Text- Short name indicating type (Sensor or one of the Relay Modules).
9) Gas Short Name (for sensors) - Short name indicating the type of gas measured by the
sensor.
