Electronics

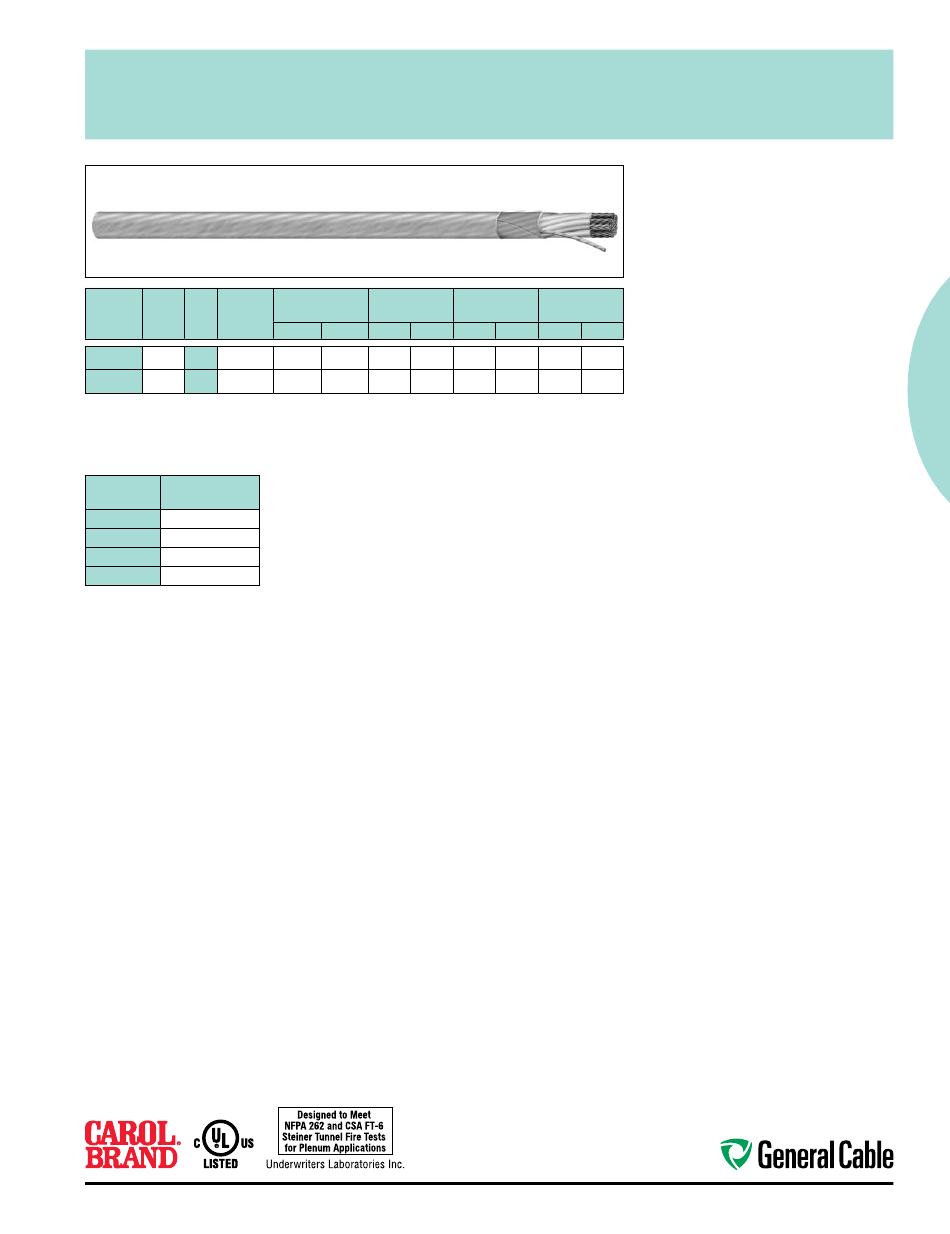

Multi-Conductor, Foil Shield
NEC Type CMP (UL) c(UL)
CATALOG NO. OF AWG COND.
NUMBER COND. SIZE STRAND
C8106
3 18 19/30 TC 0.007
C8114
4 18 19/30 TC 0.007
*A – Capacitance between conductors
*B – Capacitance between one conductor and other conductors connected to shield
Color Code Chart
NO. OF
COND. COLOR
1
Black
2
White
3
Red
4
Green
NOM. INSULATION NOM. JACKET
THICKNESS THICKNESS
INCHES mm INCHES mm
0.18 0.014 0.36
0.18 0.014 0.36
Communication & Control Cable, Multi-Conductor
NOM. CAP.*
NOMINAL O.D. pF/ft
INCHES mm A B
0.178 4.27 54.0 95.0
0.185 4.70 30.0 55.0
Product Construction:
Conductor:
• 18 AWG fully annealed stranded tinned
copper per ASTM B-33
Insulation:
• Premium-grade, coIor-coded FEP
• Color code: See chart below
Separator:
• Polyester tape with 25% overlap
Shield:
• 100% Flexfoil aluminum/polyester foil
®
with 25% overlap
• Stranded tinned copper drain wire
Jacket:
• FEP, red or as requested
• Temperature range: -40°C to +200°C
Applications:
• Computer systems
• Remote control circuits
• Process control and instrumentation
• Suggested voltage rating: 300 volts
Compliances:
• NEC Article 800
• Designed to meet NFPA 262 and CSA
FT-6 Steiner Tunnel Fire Tests for Plenum
Applications
Features:
• Fire-retardant, low-smoke jacket
• Suitable for outdoor and direct burial
• Chemical-resistant
Packaging:
• Please contact Customer Service for
packaging and color options
