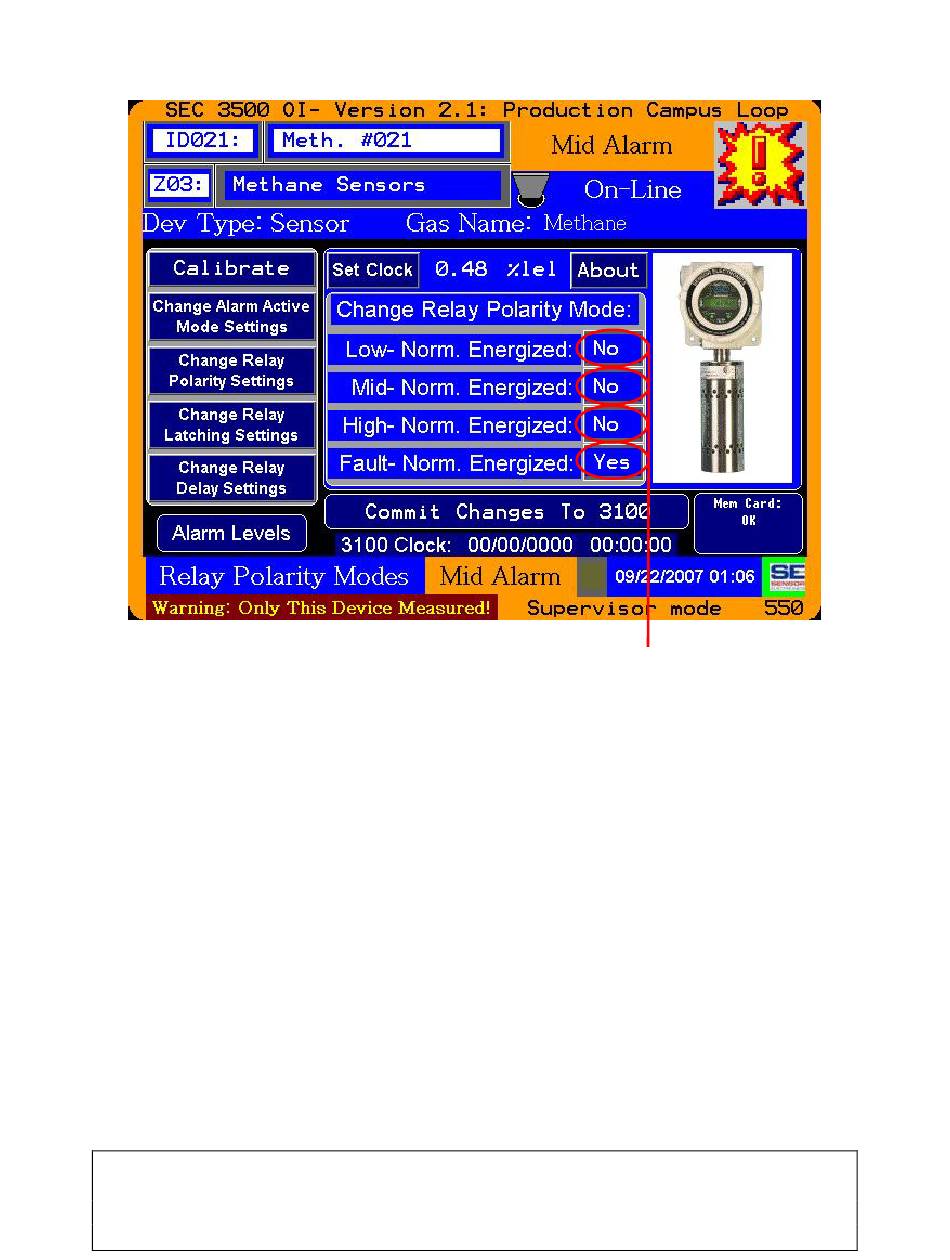

Will display the "Relay Polarity Modes" Screen:
By choosing one of the relay polarity mode text bo
touching the associated current value, th
keypad. You ma y continue to change the ot
remain on this screen. If you wish to cancel the changes, simply press the "Alarm Levels"
button to navigate back to the "Alarm Levels" Screen.
This setting changes the behavior of the SEC 3100 relays, such that when normally
energized is set to "Yes", the relay coil is always on when the relay is de-activated, but
de-energized when the relay is activated. When set to "No", the relay coil is always off
when the relay is de-activated, and energized when activated.
To commit the changes and write them to the SEC 3100, simply press the "Commit
Changes To 3100" button. A popup status box then appears, indicating the progress of
updating the Relay Polarity Mode settings in the 3100, as shown on the following page.
Once the update process is complete, the screen will return back to normal as it was prior
to the changes, except it will contain the changed values on the display.
