Just touch the text field for the alarm mode you wish to change, and select the desired
mode (above or below) using the popup keypad. You may continue to change the other
alarm active mode states as long as you remain on this screen. To cancel the changes,
sim ly return to the "Change Alarm Levels" screen by pressing the "Alarm Levels" p
button. When you are ready to commit the changes and write them to the SEC 3100
device, simply press the "Commit Changes To 3100" button.

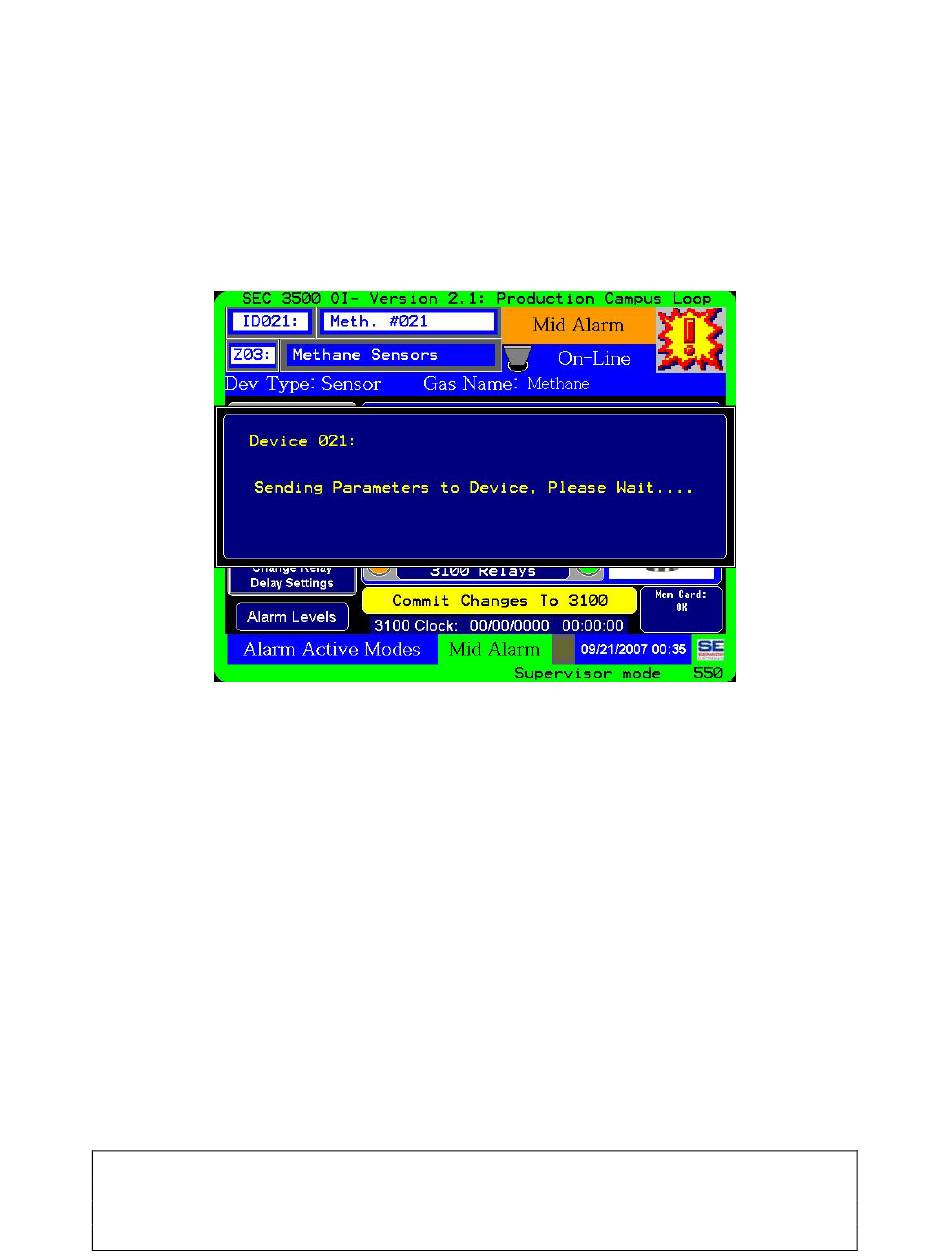

As the changes are written to the 3100, a popup status
process:
Once com pleted, the "Alarm Active Modes" Screen is re-displayed as it was when
first en tered before any changes were made; only the new active mode settings will be
shown.
Special Note: So far, this manual has described the "Alarm Active Modes" Screen
covering all necessary information related to configuration. However; the depicted screen
shown relates to SEC 3100 versions earlier than 2.1.0095. Starting in version 2.1.0095, a
different set of screens has been added to support Audible Alarm Latch Modes in the
SEC 3100 device. The SEC 3500 OI detects the device version and displays the
appropriate screens for the feature version of the device. For this screen, what has b
described so far is functionally the same, however for device version 2.1.0095 (feature
version 6+) and up, the fault alarm may also have its active mode changed instead of
hard-coded (as previously shown). This essentially is not very useful, but was added to
keep feature-locked with the SEC 3100. The extra alarm selection for Fault Active Mode
is s hown on the next page:
