The "On" and "Off" states are determined by the state of the polarity, shown by the The "On" and "Off" states are determined by the state of the polarity, shown by the
relationship dotted lines between the On/Off button to the Polarity Button: relationship dotted lines between the On/Off
Hence when the relay polarity is s
the coil, otherwise it would de-energize the coil (as shown above) in the "On" state. The
"Off" state in the Norm
energizes the coil in Norma
state.

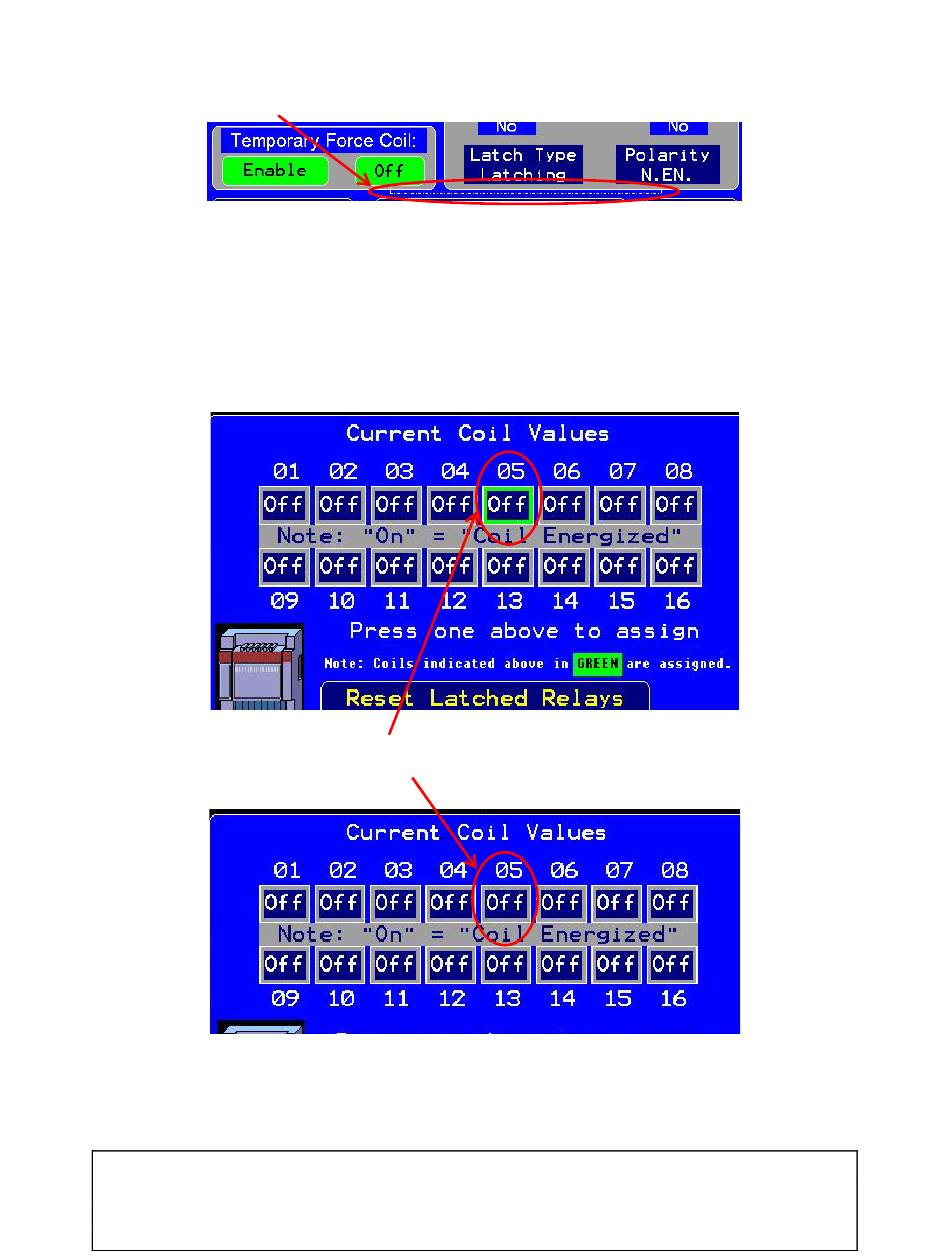

When forcing a coil that has not been assigned, it works exactly the same except the
Device Summary screen will not show a green box around the coil you select:
Pictured above is coil #5 assigned, shown with a green box surrounding its current
state. Below is depicted coil #5 un-assigned, and therefore not having the green box
surrounding the current coil state:
Pressing coil #5 when it is not assigned will result in the following Coil Assignm
screen as depicted on the following page:
