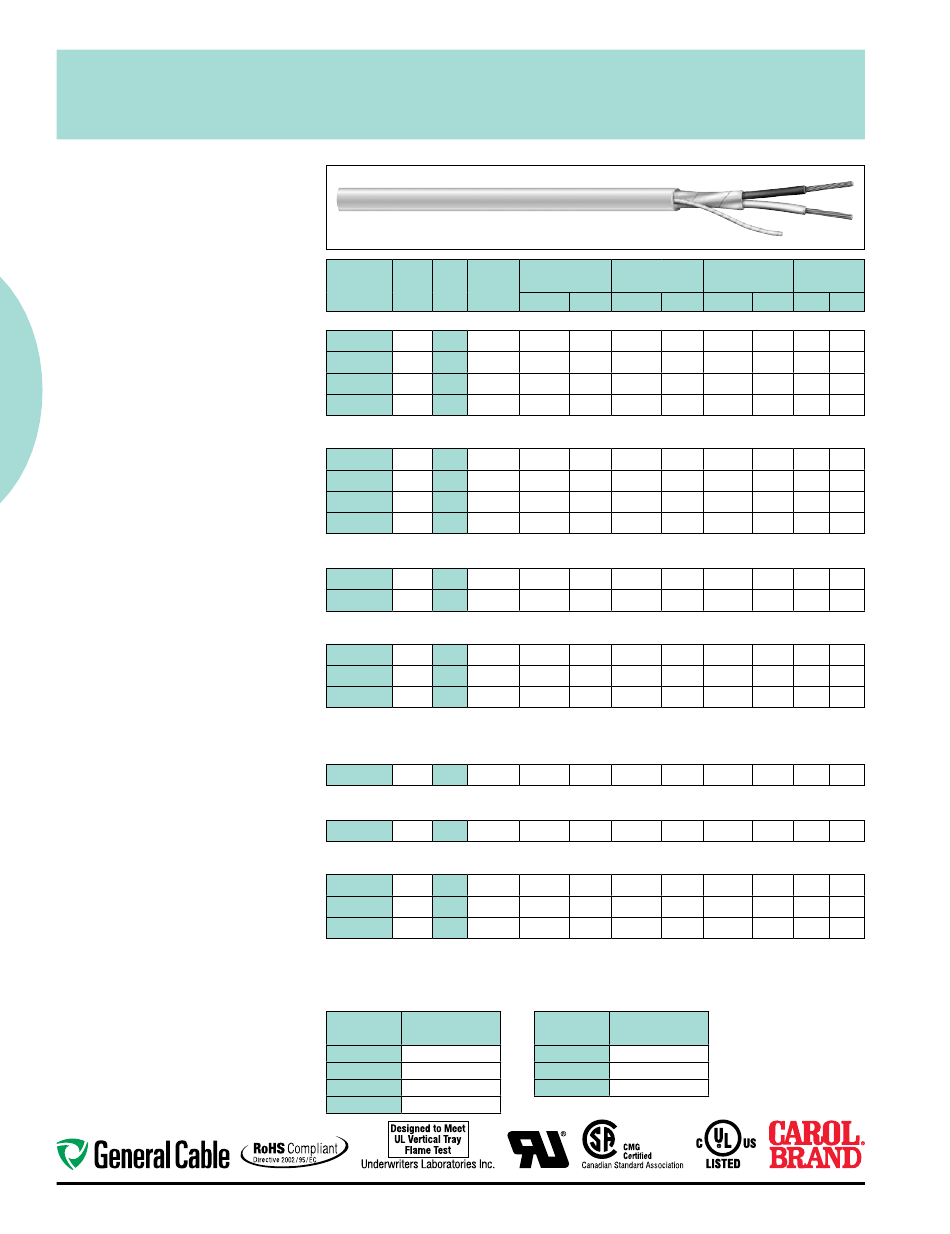

Communication & Control Cable, Multi-Conductor
Multi-Conductor, Foil Shield
NEC Type CL2 and CM (UL) c(UL) CMH
Product Construction:
Conductor:
• 24 thru 12 AWG fully annealed solid or
stranded tinned copper per ASTM B-33
Insulation:
• Premium-grade, coIor-coded
polyethylene
• Premium-grade, coIor-coded
polypropylene
• Color code: See charts below
Shield:
• 100% Flexfoil ® aluminum/polyester,
25% overlap, foil facing out
• Stranded tinned copper drain wire
Jacket:
• PVC, gray
• Temperature range: -20°C to +75°C
Applications:
• Recording studios and sound stages
• Broadcast and sound systems
• Computers
• Industrial equipment control
• Suggested voltage rating: 300 or 600
volts
Features:
• Excellent electrical properties
• Superior shielding effectiveness
• 25% shield overlap provides excellent
shielding efficiency
• Good flexibility
Compliances:
• UL Style 2092 (UL: 60°C, 300V)
• UL Style 2093 (UL: 60°C, 300V)
• UL Style 2094 (UL: 60°C, 300V)
• UL Style 2106 (UL: 60°C, 600V)
• UL Style 2107 (UL: 60°C, 600V)
• UL Style 2464 (UL: 80°C, 300V)
• NEC Article 725 Type CL2 (UL: 75°C)
• NEC Article 800 Type CM (UL: 75°C)
• RoHS Compliant Directive 2002/95/EC
• Designed to meet UL 70,000 BTU
Vertical Tray Flame Test
• CSA CMH (CSA: 60˚C)
• Passes CSA CMH Flame Test
Packaging:
• Please contact Customer Service for
packaging and color options
23
CATALOG NO. OF AWG COND.
NUMBER COND. SIZE STRAND
UL STYLE 2092, CM (UL) C(UL) CMH, 300V
C2513A
2 24 7/32
C2514A
2 22 7/30
C2524A
2 20 7/28
C2534A
2 18 16/30
Polyethylene Insulation, Color Code Chart #1
UL STYLE 2093, CM (UL) c(UL) CMH, 300V
C2526A
3 22 7/30
C2528A
3 20 7/28
C2525A
3 20 7/28
C2535A
3 18 16/30
Polyethylene Insulation, Color Code Chart #1
UL STYLE 2094, CM (UL) c(UL) CMH, 300V
C2523A
4 22 7/30
C2555A
4 20 7/28
Polyethylene Insulation, Color Code Chart #1
UL STYLE 2106, CSA, 600V
C2536A*
2 16 19/.0117 0.031
C2538A**
2 14 19/.0147 0.031
C2539A**
2 12 19/.0185 0.032
* CM (UL) c(UL) CMH
** CL2
Polyethylene Insulation, Color Code Chart #1
UL STYLE 2107, CM (UL) c(UL) CMH, 600V
C2537A
3 16 19/.0117 0.031
Polyethylene Insulation, Color Code Chart #1
UL STYLE 2464, CL2/CM (UL) c(UL) CMH, 300V
C2540A
2 20 7/28
PVC Insulation, Color Code Chart #2
C2515A
2 22 Solid
C2516A
2 22 7/30
C2517A
3 22 7/30
Polypropylene Insulation, Color Code Chart #2
***A – Capacitance between conductors
***B – Capacitance between one conductor and other conductors connected to shield
Color Code Chart 1
NO. OF
COND. COLOR
1
Black
2
Natural
3
Red
4
Green
NOM. INSULATION NOM. JACKET
THICKNESS THICKNESS
INCHES mm INCHES mm
0.016 0.41 0.026 0.66
0.016 0.41 0.020 0.51
0.016 0.41 0.020 0.51
0.016 0.41 0.020 0.51
0.016 0.41 0.030 0.76
0.016 0.41 0.030 0.76
0.016 0.41 0.030 0.76
0.016 0.41 0.020 0.51
0.016 0.41 0.030 0.76
0.016 0.41 0.030 0.76
0.79 0.032 0.81
0.79 0.032 0.81
0.81 0.032 0.81
0.79 0.032 0.81
0.013 0.33 0.032 0.81
CM (UL) c(UL) CMH, 300V
0.007 0.18 0.020 0.51
0.008 0.20 0.020 0.51
0.008 0.20 0.020 0.51
Color Code Chart 2
NO. OF
COND. COLOR
1
Black
2
Red
3
Clear
Electronics
NOMINAL O.D. NOM. CAP.***
pF/ft
INCHES mm A B
0.167 4.24 18.0 33.0
0.167 4.24 20.0 36.0
0.183 4.65 22.5 40.5
0.201 5.21 25.5 45.5
0.196 4.98 18.5 33.5
0.210 5.34 21.0 37.5
0.213 5.41 21.0 37.0
0.213 5.56 23.0 41.0
0.213 5.41 18.5 33.5
0.234 5.94 20.5 36.5
0.307 7.80 20.0 36.0
0.335 8.51 23.0 42.0
0.376 9.55 26.0 46.0
0.325 8.26 19.0 34.0
0.194 4.9 49.7 89.5
0.124 3.15 30.0 55.0
0.137 3.48 28.0 51.0
0.144 3.36 25.0 45.0
