4.4

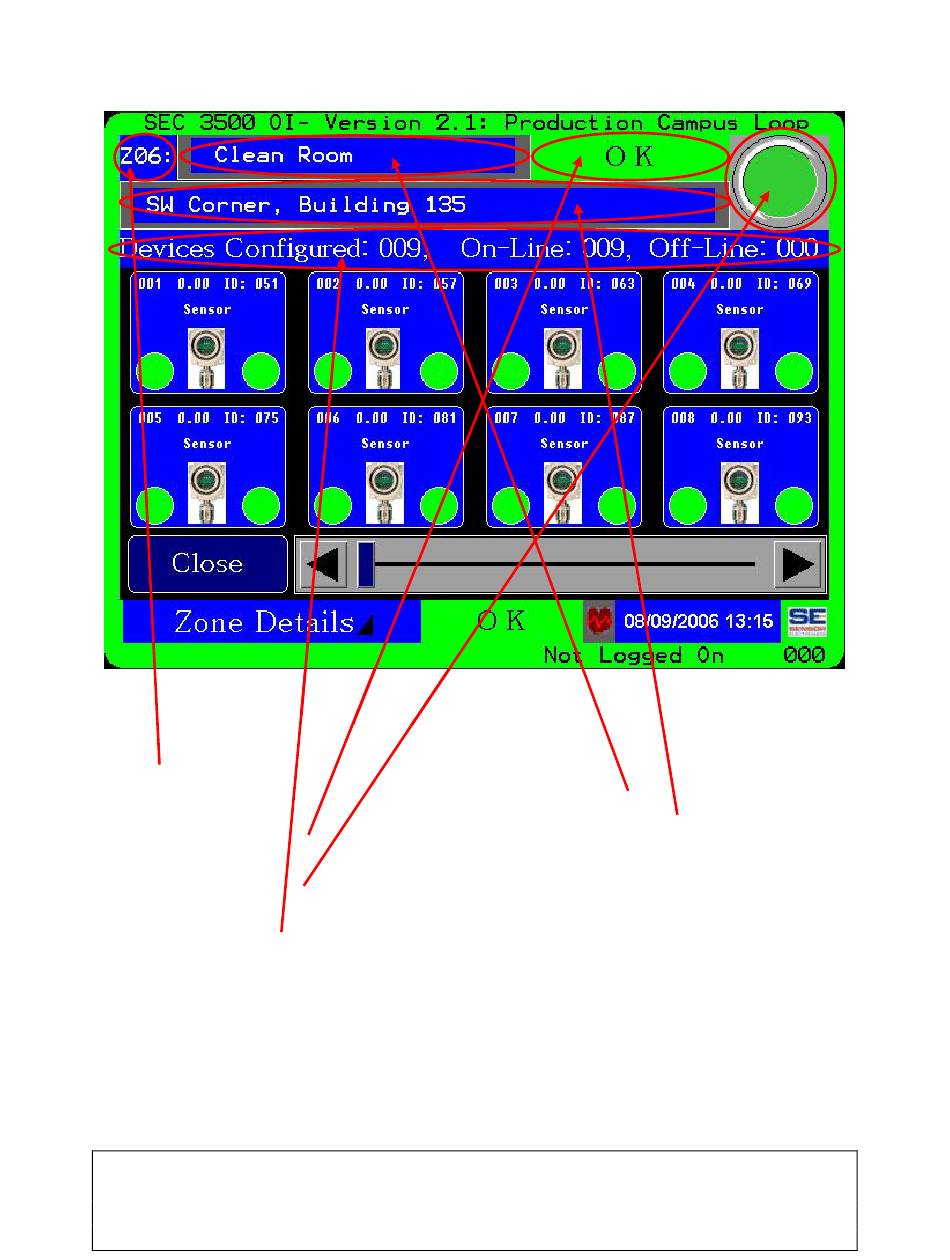

The Zone Details Screen

4.4.1 Zone Details Top Level Infor
1) Zone Number.
2) Zone Name (can be modified- press the name, use the keypad).
3) Zone Location (can be modified- press the location, use the keypad).
4) Zone Alarm Status Text (As described in section 4.1.1), however it is NOT the global
status alarm text, which is in the bottom status bar.
5) Zone Alarm Status Icon (As described in section 4.1.2, Item 1d), however it is NOT
the global status alarm icon.
6) Zone Device Configuration, On-Line, Off-Line status list.
