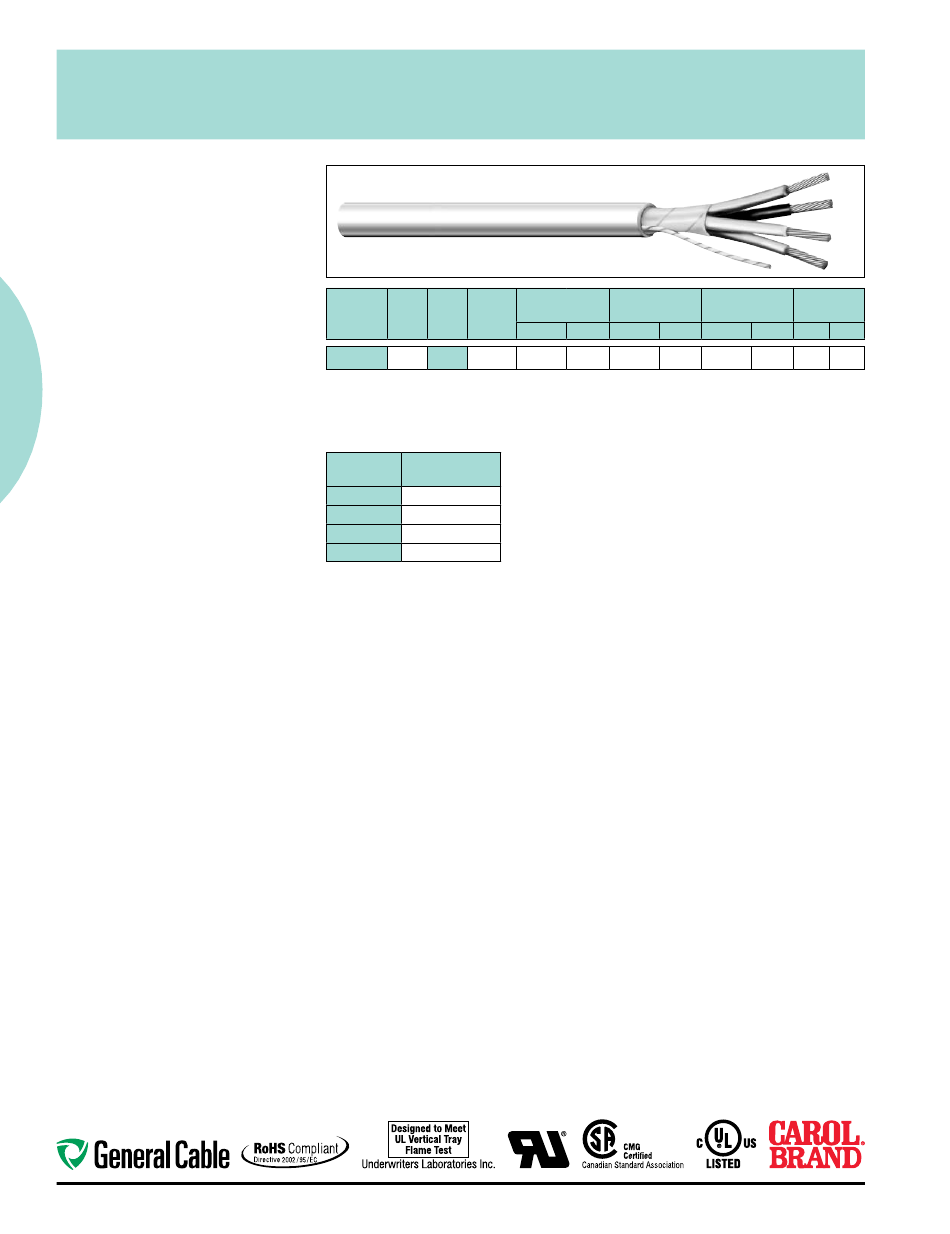

Communication & Control Cable, Multi-Conductor
Multi-Conductor, Foil Shield
UL 2464, NEC Type CM (UL) c(UL), CSA CMG
Product Construction:
Conductor:
• 18 AWG fully annealed stranded tinned
copper per ASTM B-33
Insulation:
• Premium-grade, coIor-coded S-R PVC
• Color code: See chart below
Shield:
• 100% Flexfoil aluminum/polyester,
®
25% overlap, foil facing out
• Stranded tinned copper drain wire
Jacket:
• PVC, gray
• Temperature range: -20°C to +80°C
Applications:
• Audio, broadcast, instrumentation and
sound systems
• Suggested voltage rating: 300 volts
Compliances:
• NEC Article 800 Type CM (UL: 75˚C)
• UL Style 2464 (UL: 80˚C, 300V)
• CSA CMG (60°C)
• RoHS Compliant Directive 2002/95/EC
• Designed to meet UL 70,000 BTU
Vertical Tray Flame Test
• Passes CSA CMG Flame Test
Packaging:
• Please contact Customer Service for
packaging and color options
25
CATALOG NO. OF AWG COND.
NUMBER COND. SIZE STRAND
C2543A
4 18 19/30
*A – Capacitance between conductors
*B – Capacitance between one conductor and other conductors connected to shield
Color Code Chart
NO. OF
COND. COLOR
1
Black
2
Red
3
White
4
Green
NOM. INSULATION NOM. JACKET
THICKNESS THICKNESS
INCHES mm INCHES mm
0.010 0.25 0.032 0.81
Electronics
NOM. CAP.*
NOMINAL O.D. pF/ft
INCHES mm A B
0.238 6.05 47 84.5
