If so, then this is either the first time the 3500 has been powered on, or you do not
have the Gas Monitorin
SEC 3500 compatible devices yet. Otherwise, if at least one compatible device is

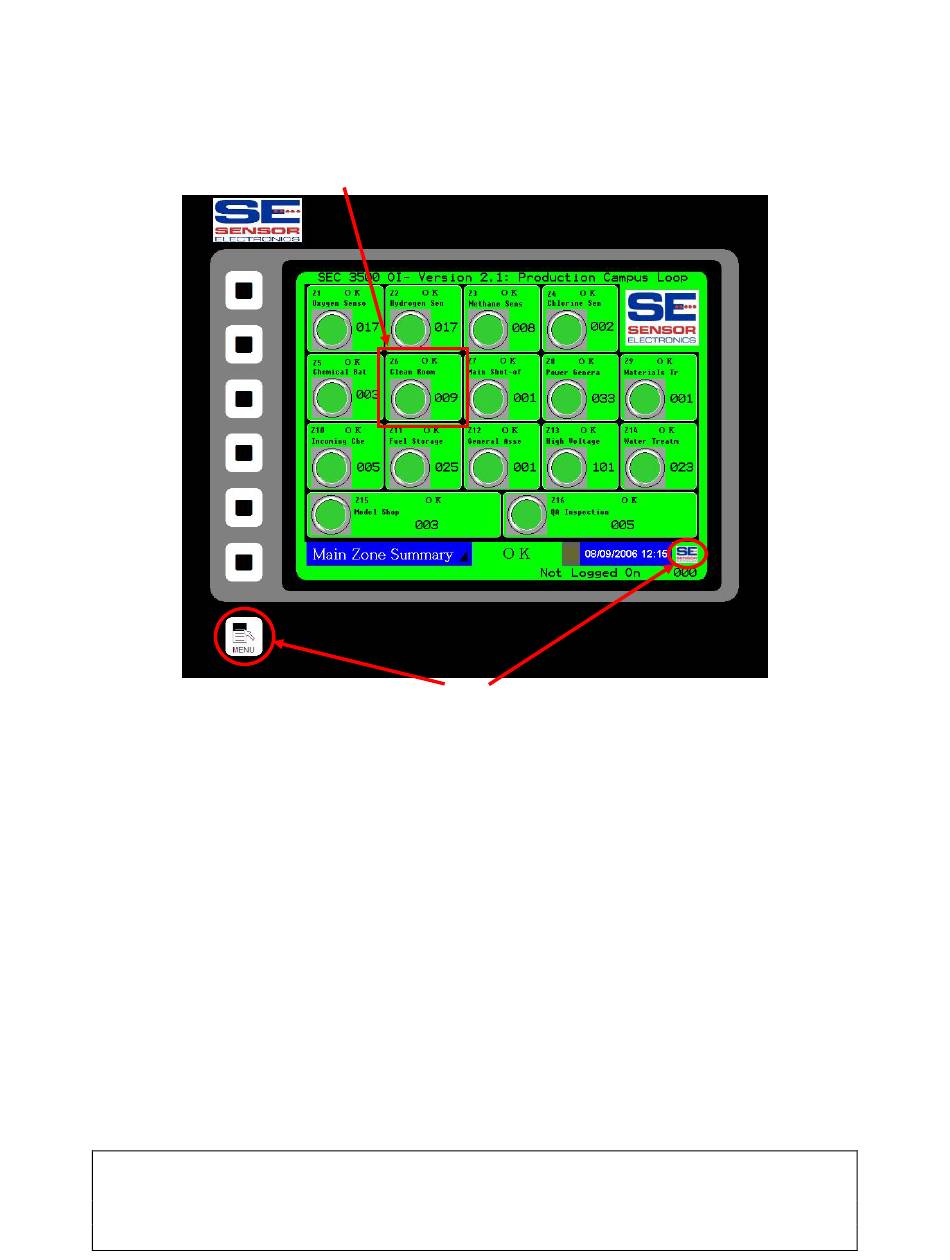

connected, online and had been setup previously, then at least one of the sixteen zone
summary boxes would be green- see below:
If this is the first tim
"Startup Basics Guide
changing Device IDs and so forth.
4.0 Configuring the Device & Zone ID and Names
The goal of this section is to describe how to configure the de
as the device name of both SEC 3100 Gas Transmitters and
associated zone nam e using the SEC 3500 HMI. These values are perm
their flash storage (e xcept for the zone name- this is stored in the HMI on
4.1

Configuring Device and Zone IDs

The process is designed to prevent duplicate device IDs, however it is still possible to
circumvent it and cause duplications to occur. In such a case, both devices will be
inaccessible on the network. Still in other unintentional circumstances, it is possible with
the Relay module to wind up with duplicates when adding a new module to the network,
since there is no manual configuration method without the HMI. See the Startup Basics
Guide regarding this issue. In the case of the SEC 3100, duplicates can be corrected
manually by changing the troubled devices at their own menu interface.
