- Page 1 SEC 3100 Transmitter Instruction and Operation Manual Sensor Electronics Corporation 12730 Creek View Avenue Savage, Minnesota 55378 USA (952) 938-9486 Fax (952) 938-9617 Web site www.sensorelectronics.com Part Number: 1460105 REV: A...
- Page 2 Page 2 of 29 Sensor Electronics Corporation Sensor Electronics Corporation (SEC) designs and manufactures innovative fixed system gas detection equipment, for combustible gases, oxygen, carbon dioxide and toxic gases. Commitment Our quality and service are uncompromising. We back each of our products with a two-year warranty on all materials and workmanship.
-
Page 3: Table Of Contents
Table of Contents SPECIFICATIONS GENERAL DESCRIPTION III. OPERATION Installation and Startup Fault Codes IV. MAGNETIC SWITCH OPERATION FIGURES Figure 1 – Overall Layout Figure 2 – SEC 3100 Wiring Figure 3 – SEC Sensor Separation Kit Part Number: 1460105 REV: A... -
Page 4: Specifications
SEC 3100 Transmitter For use with: SEC Millenium and SEC Signature series infrared sensors and SEC 3000 Toxic and Oxygen gas sensors. Part Number: SEC 3100-XXX-XXXXXX Output (analog): 4-20 mA (Source type), max. 1000 Ohm load at 24 VDC supply voltage... -
Page 5: General Description

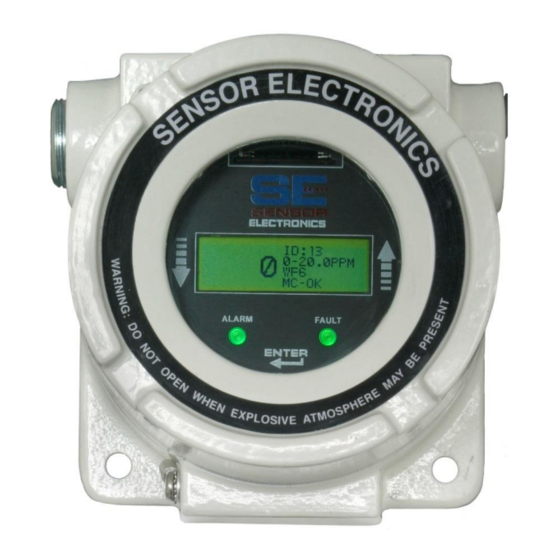

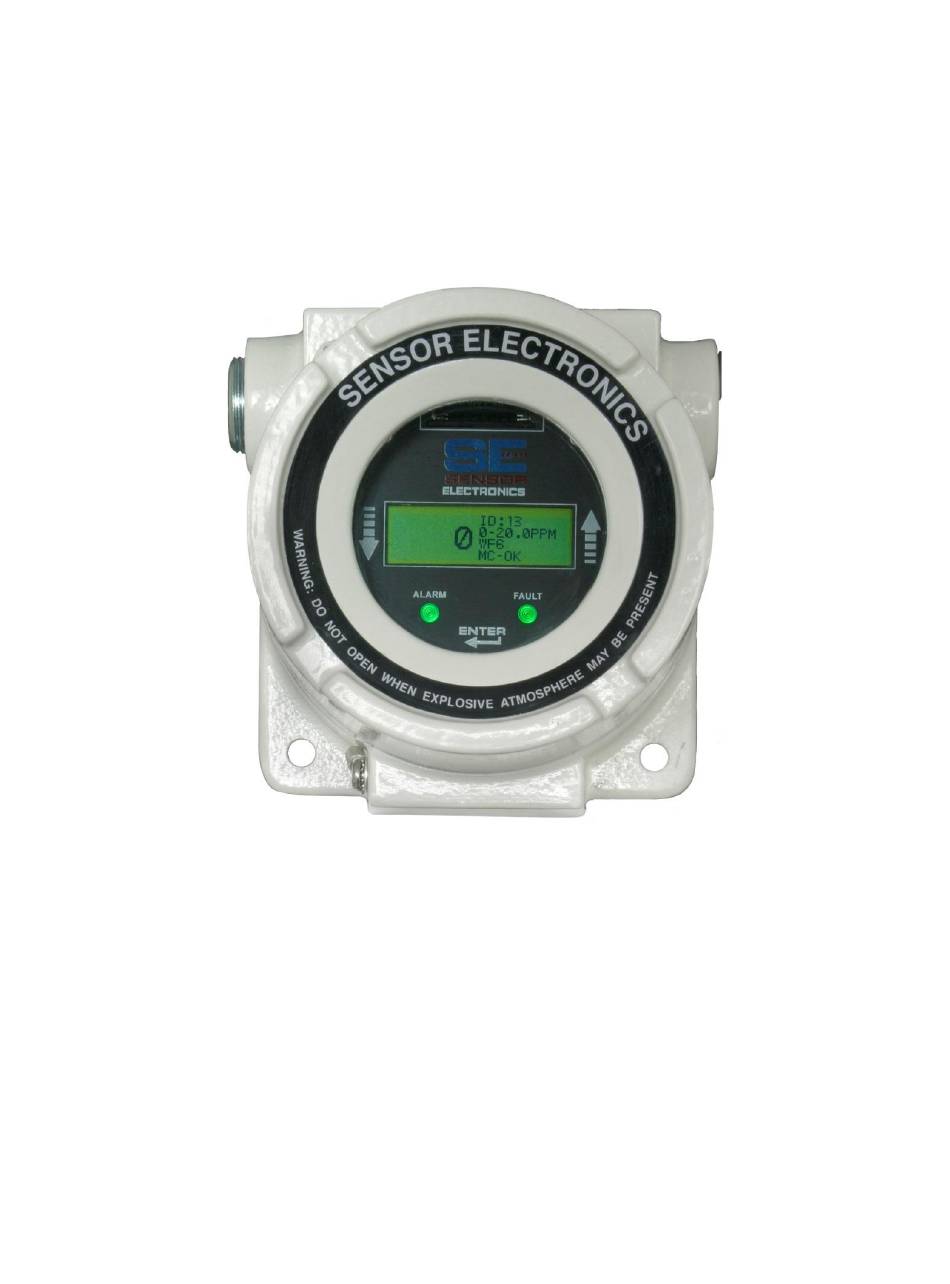

The LCD of the SEC 3100 displays the gas concentration and sensor status. The SEC 3100 has one (1) “Alarm” LED and one (1) “Status” LED. The SEC 3100 also has three (3) magnetic switches located around the circumference of the unit. - Page 6 Wire insulation should be temperature rated for greater than or equal to 70°C. There are 2 earth screws on the SEC 3100. One is on the outside of the enclosure and the other is located on the inside of the enclosure. Both are marked with earth ground symbols and green screws.
- Page 7 Warm-up When power is applied to the SEC 3100, it enters a one (1) minute warm-up mode. The output current will be 0.8 mA during the warmup time period. At the end of the warm-up period with no faults present, the SEC 3100 automatically enters the normal operating mode (4.0 mA with no gas present).
-
Page 8: Magnetic Switch Operation
Hard Fault or Unit Zero with gas IV. MAGNETIC SWITCH OPERATION The SEC 3100 has three (3) magnetic switch pickups on the Display PCB. The picture below shows the location of the magnetic switches labeled UP, DOWN and ENTER. Placing a magnet in close proximity to one of the switches will cause the following operations to occur. - Page 9 Switch Operation ENTER Enter Menu Mode, Selects a menu to Enter Moves up through Menu selections DOWN Moves down through Menu selections For further details on gas sensor calibration refer to the appropriate SEC sensor instruction manual. The LCD contrast potentiometer, (POT1) is located under the protective faceplate shown above on the front side (LCD side) of PCB to the left of the LCD.
- Page 10 During Warm Up, FAULT LED will be solid Blue and ALARM LED will be falshing Yellow – Blue. MC – REMOVED indicates the MEMORY CARD (MC) in not installed in the SEC 3100. Other MC indications are OK, FAULT, FULL.
- Page 11 SN- XXXXXXXXXXXXXXX VER- X X.XXX.XXX SN is the SEC 3100 serial number. VER is the SEC 3100 software version number. Selecting Enter again will return the display to the main info menu. Sensor Status Menu TYP: Sensor type (0.0 is a SEC 3000, 32.0 is SEC Millenium) SN: Sensor serial number.
- Page 12 Main Menu and Sub Menus EJECT MEMORY CARD Enter Calibration Menu * CALIBRATION INFO ALARM Used to calibrate * MAIN MENU RELAY the gas sensor. Down Arrow Alarm Menu CALIBRATION Used to set * ALARM alarm level set RELAY points and parameters.
- Page 13 Calibration Menu * CALIBRATION Enter ALARM RELAY Using the Up and Down arrows allows the operator to move the cursor (*) to select a function. * ZERO SPAN CAL. VAL EXIT To Zero the sensor apply clean air (N2 for an oxygen sensor) and select enter. The following will be displayed.
- Page 14 This completes the calibration and the device can be put back into the normal operating mode. Arrow Down to ZERO SPAN CAL. VAL * EXIT Enter * EXIT Enter again and the SEC 3100 returns to normal operation. Part Number: 1460105 REV: A...
- Page 15 Alarm Menu CALIBRATION Enter * ALARM RELAY * LOW * FAULT EXIT Select the Alarm Relay (LOW, MID, HI, FAULT) using the down arrow. Once the cursor is on the alarm relay you wish to configure, hold the magnet over Enter. The example LOW will be used. The same operations can be used to set the MID, HI or FAULT relays.
- Page 16 This menu will allow the operator to select another relay to program. Or select Fault or Exit and the next display will be: FAULT * EXIT Selecting Enter on this display will put the SEC 3100 back into normal operation. Part Number: 1460105 REV: A...
- Page 17 Relay Menu CALIBRATION ALARM * RELAY Selecting Enter will advance to the following menu. * LOW Arrow down to the next screen will be * FAULT EXIT Select the Alarm Relay (LOW, MID, HI, FAULT) that is to be configured using the down arrow. Once the cursor is on the correct alarm relay, hold the magnet over Enter.
- Page 18 This menu will allow the operator to select another relay to program. Or select Exit and the next display will * FAULT EXIT Arrow Down to Exit FAULT * EXIT Enter * EXIT Selecting Enter will return the SEC 3100 into normal operation. Part Number: 1460105 REV: A...
- Page 19 HIDE Select Enter * ZONE ONLINE EXIT Select Enter to change the Zone number of the SEC 3100. * ZONE ONLINE EXIT Use the Up and Down Arrows change the Zone number (0-255). Once the correct Zone number is displayed select Enter.
- Page 20 DATE TIME Selecting Enter for the Self Test will make the sensor generate a 4-20 mA input into the SEC 3100 from 4 mA to 20 mA (0-fullscale). In the self test mode the SEC 3100 outputs are fully functional. The SEC 3100 will display the rising gas level, the 4-20 mA output will increase to 20 mA, the relays will actuate and the RS485 information will be transmitted to the control system.
- Page 21 Time Date Menu SELF TEST * DATE TIME Entering this menu will allow the operator to set the time and date of the SEC 3100 real time clock. * DATE / 30 / 2006 TIME EXIT Selecting Enter will locate a cursor (*) above the number allowing the operator to use the Up Down arrows to increase or decrease the numbers.
- Page 22 Select Enter * EXIT Selecting Enter again will return the SEC 3100 to normal operation. Part Number: 1460105 REV: A...
- Page 23 0 SET 4 MA SET 20 MA * DEFAULTS EXIT Arrow down and select Enter to return to the SEC 3100 to 4-20 MA CAL main menu.. SET 4 MA SET 20 MA DEFAULTS Part Number: 1460105 * EXIT...
-
Page 24: Figures
Figure 1 – Overall Layout Figure 2 – SEC 3100 Wiring Figure 3 – SEC Sensor Separation Kit Figure 4 – Mounting SEC 3100 and SEC Millenium Figure 5 – Mounting SEC 3100 and SEC 3000 Part Number: 1460105 REV: A... - Page 25 Mid Alarm High Alarm Gas Sensor Port (1 x ¾” SEC 3000 SEC Millenium SENSOR ELECTRONICS CORPORATION 12730 Creek View Avenue FIGURE 1 Savage, Minnesota 55378 USA (T) 952.938.9486 (F) 952.938.9617 SEC 3100 OVERVIEW sales@sensorelectronic.com Part Number: 1460105 REV: A...
- Page 26 (3) FAULT (N.E.) N.C. (2) FAULT (N.E.) COMMON (1) FAULT (N.E.) N.O. SENSOR ELECTRONICS CORPORATION 12730 Creek View Avenue FIGURE 2 Savage, Minnesota 55378 USA BACK VIEW OF SEC 3100 (T) 952.938.9486 (F) 952.938.9617 SEC 3100 WIRING sales@sensorelectronic.com Part Number: 1460105 REV: A...
- Page 27 SENSOR ELECTRONICS CORPORATION FIGURE 3 12730 Creek View Avenue SEC SENSOR SEPARATION KIT Savage, Minnesota 55378 USA (T) 952.938.9486 (F) 952.938.9617 sales@sensorelectronic.com Part Number: 1460105 REV: A...
- Page 28 FIGURE 4 SEC 3100 – SEC Millenium Mounting Part Number: 1460105 REV: A...
- Page 29 FIGURE 5 SEC 3100 – SEC 3000 Mounting Part Number: 1460105 REV: A...
