Mapping and Assigning Relay Coils

To configure or manually control the Relay Module coils, you must launch the Relay

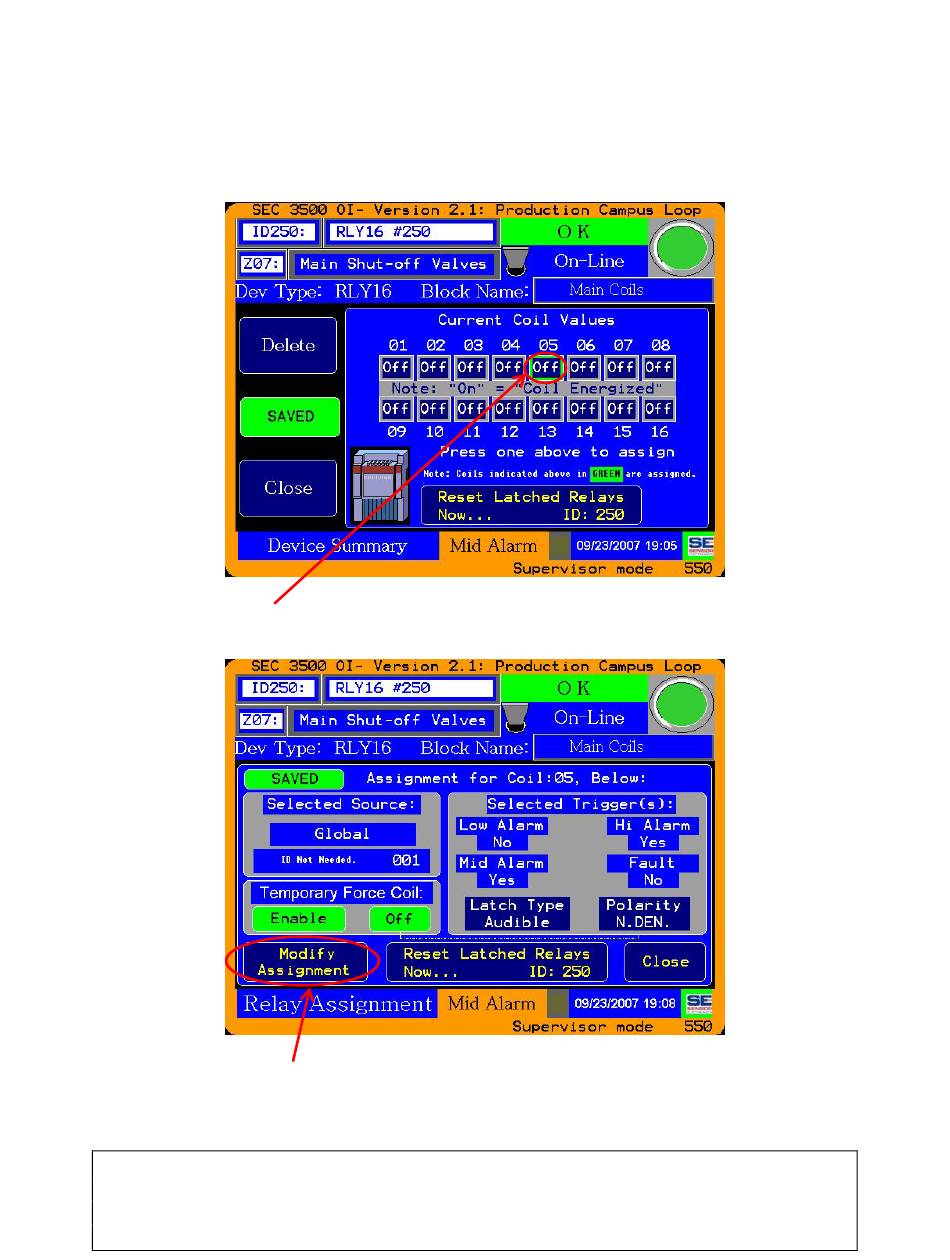

Module Assignment Screen from the Relay Module Device Summary screen shown
below (only when logged on as Supervisor):
By selecting a coil that you wish to assign or modify, the Relay Module Assignment
Screen appears as shown below (in the following example, coil #5 is pressed):
By pressing the "Modify Assignment" button, the Coil Assignment Screen will be
shown, allowing configuration and mapping of the coil as shown on the following page:
