How to Programme
Operating variable
Parameter 16-51 Pulse Reference
2 2
Parameter 16-52 Feedback[Unit]
Parameter 16-53 Digi Pot Reference
Parameter 16-60 Digital Input
Parameter 16-61 Terminal 53 Switch Setting V
Parameter 16-62 Analog Input 53
Parameter 16-63 Terminal 54 Switch Setting V
Parameter 16-64 Analog Input 54
parameter 16-65 Analog Output 42 [mA]
Parameter 16-66 Digital Output [bin]
Parameter 16-67 Pulse Input #29 [Hz]
Parameter 16-68 Freq. Input #33 [Hz]
Parameter 16-69 Pulse Output #27 [Hz]
Parameter 16-70 Pulse Output #29 [Hz]
Parameter 16-71 Relay Output [bin]
Parameter 16-72 Counter A
Parameter 16-73 Counter B
16-80 Fieldbus CTW 1
16-82 Fieldbus REF 1
16-84 Comm. Option STW
16-85 FC Port CTW 1
16-86 FC Port REF 1
16-90 Alarm Word
16-92 Warning Word
Parameter 16-94 Ext. Status Word
Table 2.1 Measurements

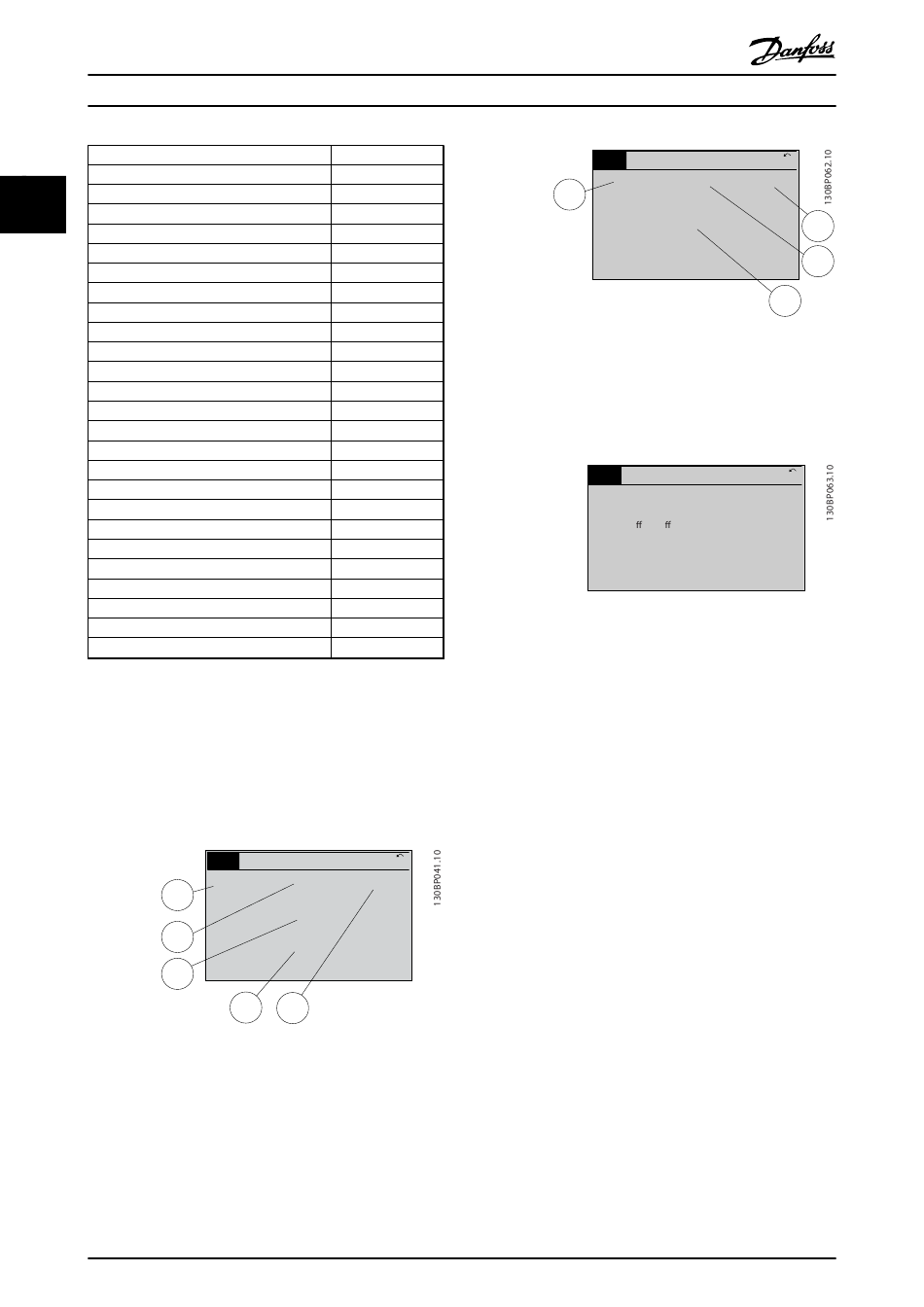

Status Screen I
This read-out state is standard after start-up or initiali-
sation.
Press [Info] to obtain information about the measurement
links to the displayed operating variables (1.1, 1.2, 1.3, 2
and 3).
See the operating variables shown in Illustration 2.10.
Illustration 2.10 Status Screen I
Status Screen II
See the operating variables (1.1, 1.2, 1.3 and 2) shown in
Illustration 2.11.
In the example, speed, motor current, motor power and
frequency are selected as variables in the first and second
lines.
16
Unit
[Unit]
bin
[mA]
[bin]
[Hz]
[Hz]
[Hz]
[Hz]
hex
hex
hex
hex
hex
Status
799 RPM 7.83 A
1.1
0.000
1.2
53.2 %
Auto Remote Ramping
2
3
1.3
®
VLT AutomationDrive FC 301/302 Programming Guide
Illustration 2.11 Status Screen II
Status Screen III
This state displays the event and action of the Smart Logic
Control. For further information, see
chapter 3.14 Parameters: 13-** Smart Logic Control.
Illustration 2.12 Status Screen III

2.1.5 Parameter Set-Up

The frequency converter can be used for practically all
assignments. The frequency converter offers a choice
between 2 programming modes - a Main Menu and a
Quick Menu mode.
The former provides access to all parameters. The latter
takes the user through a few parameters making it
possible to start operating the frequency converter.
Change a parameter in either Main Menu mode or Quick
Menu mode.
1 (1)
36.4 kw

2.1.6 Quick Menu Key Functions

Press [Quick Menus] to see a list of different areas
contained in the Quick menu.
Select My Personal Menu to display the selected personal
parameters. These parameters are selected in
parameter 0-25 My Personal Menu. Up to 50 different
parameters can be added in this menu.
MG33MI02 - Rev. 2013-11-20
Status
207RPM 5.25A
1.1
6.9
Hz
Auto Remote Running
Status
778 RPM 0.86 A
State: 0 o 0 (o )
When: -
Do: -
Auto Remote Running
1 (1)
24.4 kW
1.3
1.2
2
1 (1)
4.0 kW
