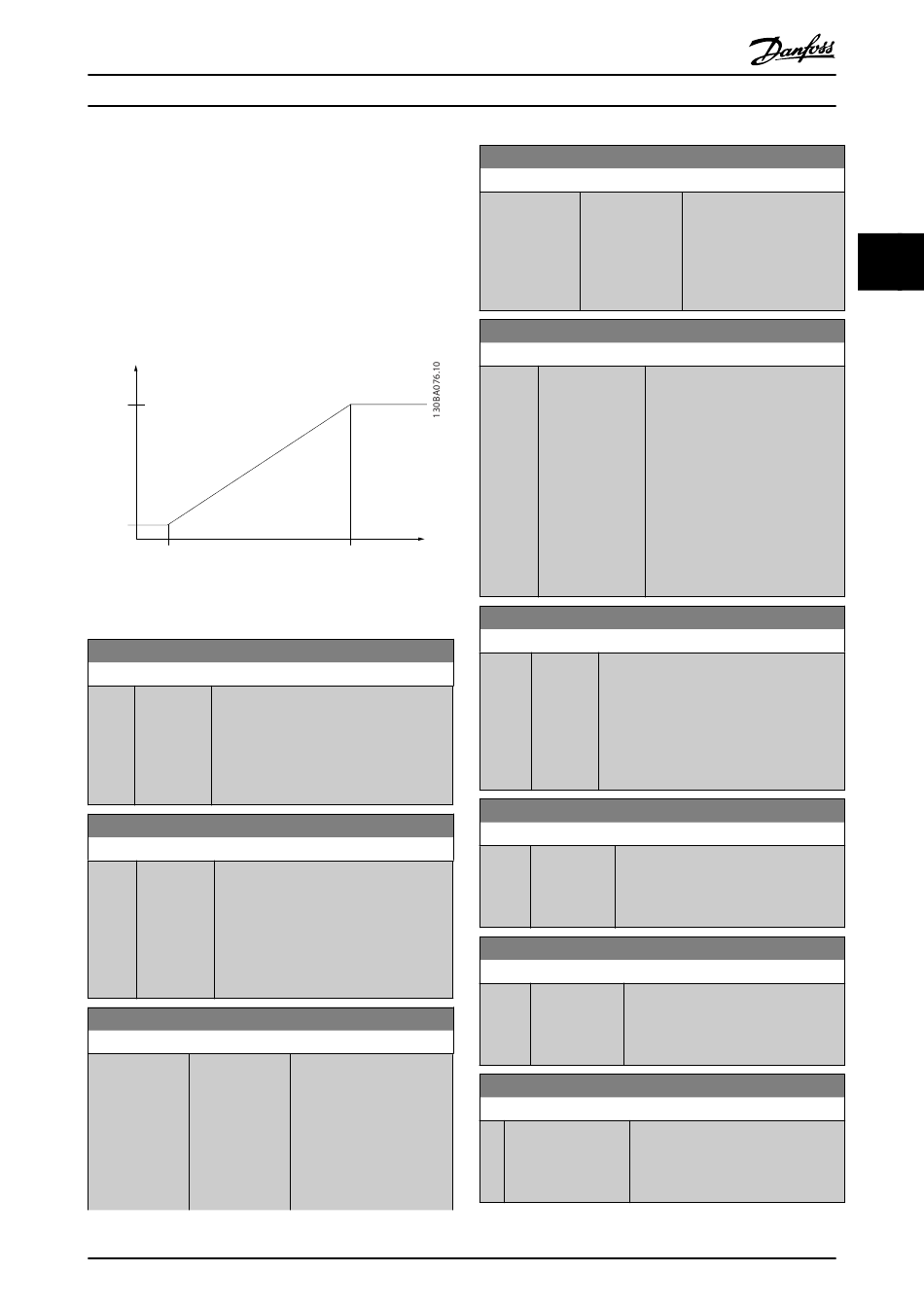

Parameter Descriptions
3.7.5 5-5* Pulse Input
The pulse input parameters are used to define an
appropriate window for the impulse reference area by
configuring the scaling and filter settings for the pulse
inputs. Input terminals 29 or 33 act as frequency reference
inputs. Set terminal 29 (5-13 Terminal 29 Digital Input) or
terminal 33 (5-15 Terminal 33 Digital Input) to [32] Pulse
input. If terminal 29 is used as an input, set
parameter 5-01 Terminal 27 Mode to [0] Input.
Ref.
(RPM)
High
ref.
value
P 5-53/
p 5-58
Low
ref.
value
P 5-52/
p 5-57
Low freq.
P 5-50/
P 5-55
Illustration 3.37 Pulse Input
5-50 Term. 29 Low Frequency
Range: Function:
100 [0 - Enter the low frequency limit
Hz 110000 Hz] corresponding to the low motor shaft
*
speed (i.e. low reference value) in
parameter 5-52 Term. 29 Low Ref./Feedb.
Value. Refer to Illustration 3.37.
This parameter is available for FC 302 only.
5-51 Term. 29 High Frequency
Range: Function:
100 [0 - 110000 Enter the high frequency limit
Hz Hz] corresponding to the high motor shaft
*
speed (i.e. high reference value) in
parameter 5-53 Term. 29 High Ref./Feedb.
Value.
This parameter is available for FC 302
only.
5-52 Term. 29 Low Ref./Feedb. Value
Range:
0 Reference- [-999999.999 -
FeedbackUnit 999999.999
*
ReferenceFeed-
backUnit]
®
VLT AutomationDrive FC 301/302 Programming Guide
High freq. Input
P 5-51/ (Hz)
P 5-56
Function:
Enter the low reference
value limit for the motor
shaft speed [RPM]. This is
also the lowest feedback
value, see also
parameter 5-57 Term. 33 Low
Ref./Feedb. Value. Set
terminal 29 to digital input
MG33MI02 - Rev. 2013-11-20
5-52 Term. 29 Low Ref./Feedb. Value
Range:
5-53 Term. 29 High Ref./Feedb. Value
Range: Function:
Size [-999999.999 - Enter the high reference value
related 999999.999 [RPM] for the motor shaft speed
*
ReferenceFeed- and the high feedback value, see
backUnit] also parameter 5-58 Term. 33 High
Ref./Feedb. Value. Select terminal
29 as a digital input
(parameter 5-02 Terminal 29 Mode
= [0] input (default) and
5-13 Terminal 29 Digital Input =
applicable value).
This parameter is available for FC
302 only.
5-54 Pulse Filter Time Constant #29
Range: Function:
100 [1 - 1000 Enter the pulse filter time constant. The
ms ms] pulse filter dampens oscillations of the
*
feedback signal, which is an advantage, if
there is a lot of noise in the system. A high
time constant value results in better
dampening but also increases the time
delay through the filter.
5-55 Term. 33 Low Frequency
Range: Function:
100 Hz [0 - 110000 Enter the low frequency corresponding
*
Hz] to the low motor shaft speed (i.e. low
reference value) in parameter 5-57 Term.
33 Low Ref./Feedb. Value.
5-56 Term. 33 High Frequency
Range: Function:
100 Hz [0 - 110000 Enter the high frequency
*
Hz] corresponding to the high motor shaft
speed (i.e. high reference value) in
5-58 Term. 33 High Ref./Feedb. Value.
5-57 Term. 33 Low Ref./Feedb. Value
Range: Function:
0 [-999999.999 - Enter the low reference value [RPM]
*
999999.999 ] for the motor shaft speed. This is also
the low feedback value, see also
5-52 Term. 29 Low Ref./Feedb. Value.
Function:
(parameter 5-02 Terminal 29
Mode = [0] input (default)
and 5-13 Terminal 29 Digital
Input = applicable value).
This parameter is available
for FC 302 only.
