How to Programme

2.1.1 The LCD-Display

The LCD-display has backlight and a total of 6 alpha-
numeric lines. The display lines show the direction of
rotation (arrow), the selected set-up as well as the
programming set-up. The display is divided into 3 sections.
Top section
shows up to 2 measurements in normal operating status.
Middle section
The top line shows up to 5 measurements with related
unit, regardless of status (except in the case of alarm/
warning).
Bottom section
always shows the state of the frequency converter in
Status mode.
Status
Top section
43 RPM
Middle section
! Pwr.card temp (W29)
Bottom section
Auto Remote Running

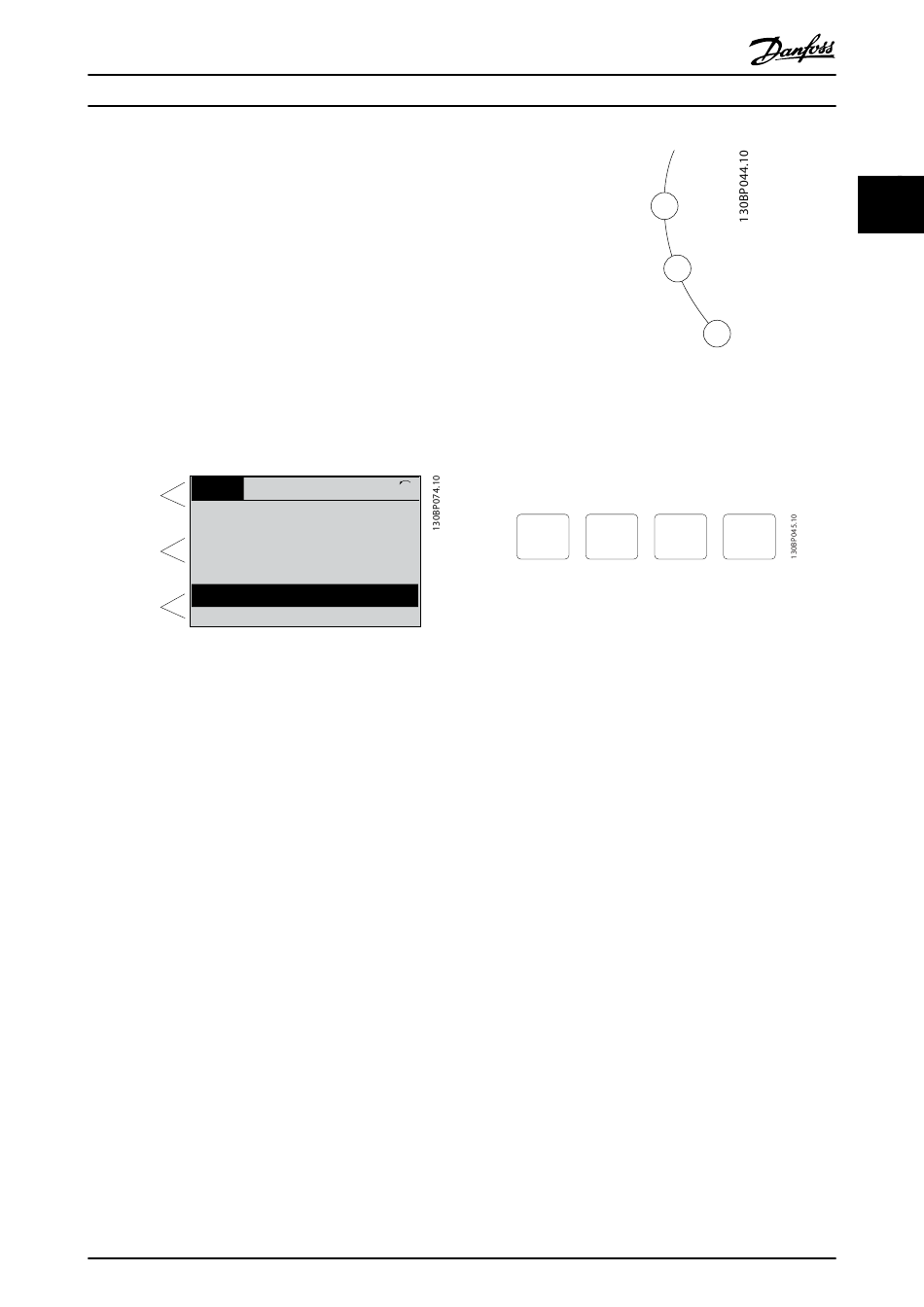

Illustration 2.2 Bottom Section
The active set-up (selected as the active set-up in
parameter 0-10 Active Set-up) is shown. When programming
another set-up than the active set-up, the number of the
programmed set-up appears to the right.
Display contrast adjustment
▲
Press [Status] and [ ] for darker display
▼
Press [Status] and [ ] for brighter display
Most parameter set-ups can be changed immediately via
the LCP, unless a password has been created via
parameter 0-60 Main Menu Password or via
parameter 0-65 Quick Menu Password.
Indicator lights (LEDs)
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear on
the LCP.
The ON LED is activated when the frequency converter
receives mains voltage or via a DC bus terminal or 24 V
external supply. At the same time, the back light is on.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
®
VLT AutomationDrive FC 301/302 Programming Guide
! 1(1)
5.44 A 25.3kW
1.4 Hz
2.9%
MG33MI02 - Rev. 2013-11-20
On
Warn.
Alarm
Illustration 2.3 Indicator lights (LEDs)
LCP Keys
The control keys are divided into functions. The keys
below the display and indicator lamps are used for
parameter Set-up, including choice of display indication
during normal operation.
Quick
Status
Menu
Illustration 2.4 LCP Keys
[Status]
indicates the status of the frequency converter and/or the
motor. Select between 3 different readouts by pressing
[Status]: 5 line readouts, 4 line readouts or Smart Logic
Control.
Press [Status] for selecting the mode of display or for
changing back to Display mode from either the Quick
Menu mode, the Main Menu mode or Alarm mode. Also
use [Status] to toggle single or double read-out mode.
[Quick Menu]
allows quick access to different Quick Menus such as Quick
Menu
•
My Personal Menu
•
Quick Set-up
•
Changes Made
•
Loggings
Press [Quick Menu] to program the parameters belonging
to the Quick Menu. It is possible to switch directly
between Quick Menu mode and Main Menu mode.
[Main Menu]
is used for programming all parameters.
It is possible to switch directly between Main Menu mode
and Quick Menu mode.
Parameter shortcut can be carried out by pressing down
[Main Menu] for 3 seconds. The parameter shortcut allows
direct access to any parameter.
Main Alarm
Menu Log
