Parameter Descriptions
12 13 18
3 3

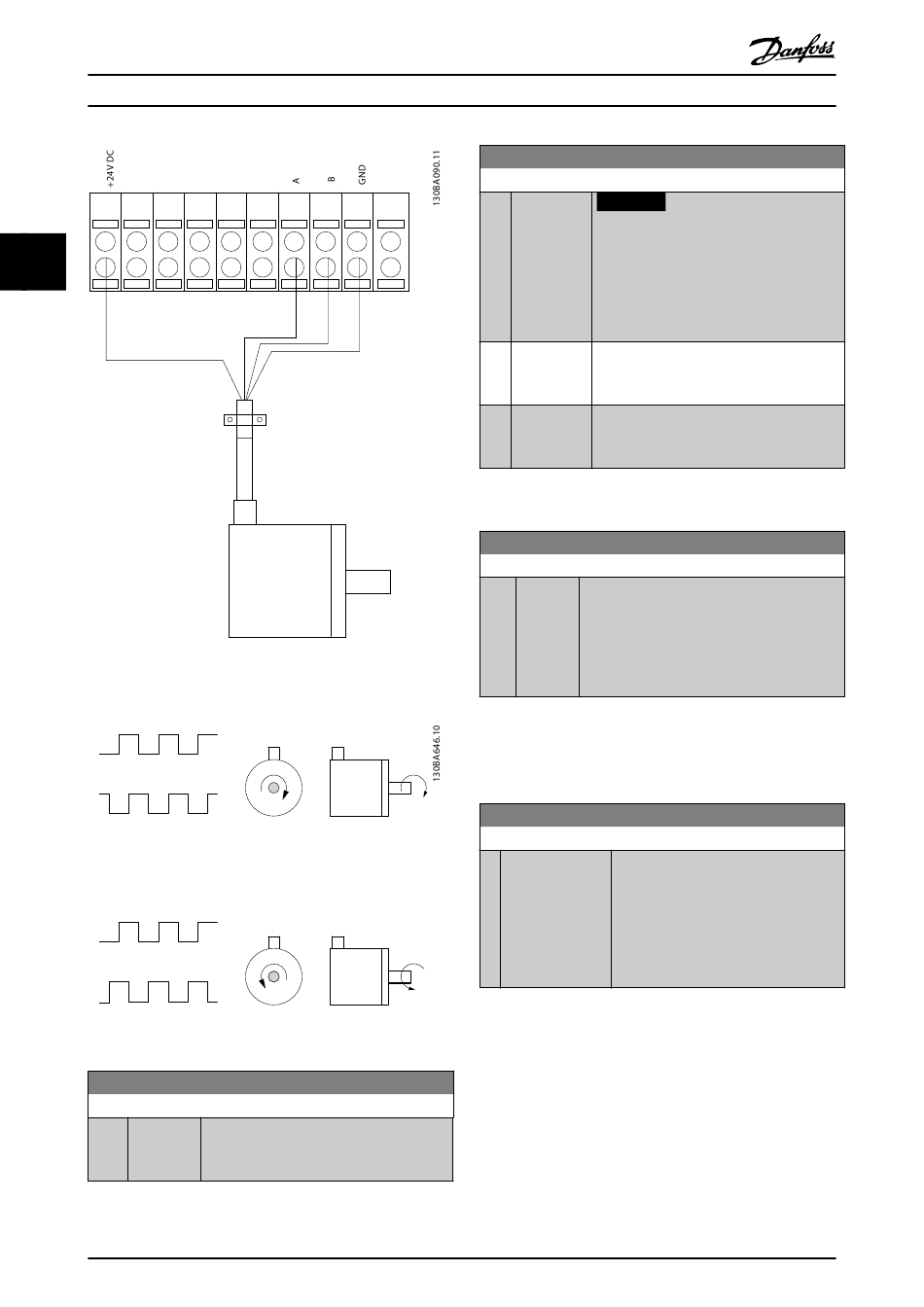

Illustration 3.39 Encoder Connection
A
B
A
B
Illustration 3.40 Encoder Rotation Direction
5-70 Term 32/33 Pulses Per Revolution
Range:
1024 [1 - 4096 ] Set the encoder pulses per revolution on the
*
98
VLT
19 27 29 32 33 20
24V or 10-30V encoder
CW
CCW
Function:
motor shaft. Read the correct value from the
encoder.
®
AutomationDrive FC 301/302 Programming Guide
5-71 Term 32/33 Encoder Direction
Option:
37
[0] Clockwise
*
[1] Counter
clockwise
3.7.8 5-8* I/O Options
5-80 AHF Cap Reconnect Delay
Range:
25 s [1 - 120
*
s]
3.7.9 5-9* Bus Controlled
This parameter group selects digital and relay outputs via
a fieldbus setting.
5-90 Digital & Relay Bus Control
Range:
0 [0 - 2147483647 ] This parameter holds the state of the
*
MG33MI02 - Rev. 2013-11-20
Function:
NOTICE
This parameter cannot be adjusted
while the motor is running.
Change the detected encoder rotation
direction without changing the wiring to the
encoder.
Sets channel A 90° (electrical degrees)
behind channel B upon clockwise rotation of
the encoder shaft.
Sets channel A 90° (electrical degrees) ahead
of channel B upon clockwise rotation of the
encoder shaft.
Function:
Guarantees a minimum off-time for the
capacitors. The timer starts once the AHF
capacitor disconnects and needs to expire
before the output is allowed to be on again. It
will only turn on again if the drive power is
between 20% and 30%.
Function:
digital outputs and relays that is
controlled by bus.
A logical '1' indicates that the output is
high or active.
A logical '0' indicates that the output is
low or inactive.
