CDM-625 Advanced Satellite Modem
Rear Panel Connector Pinouts
3.2

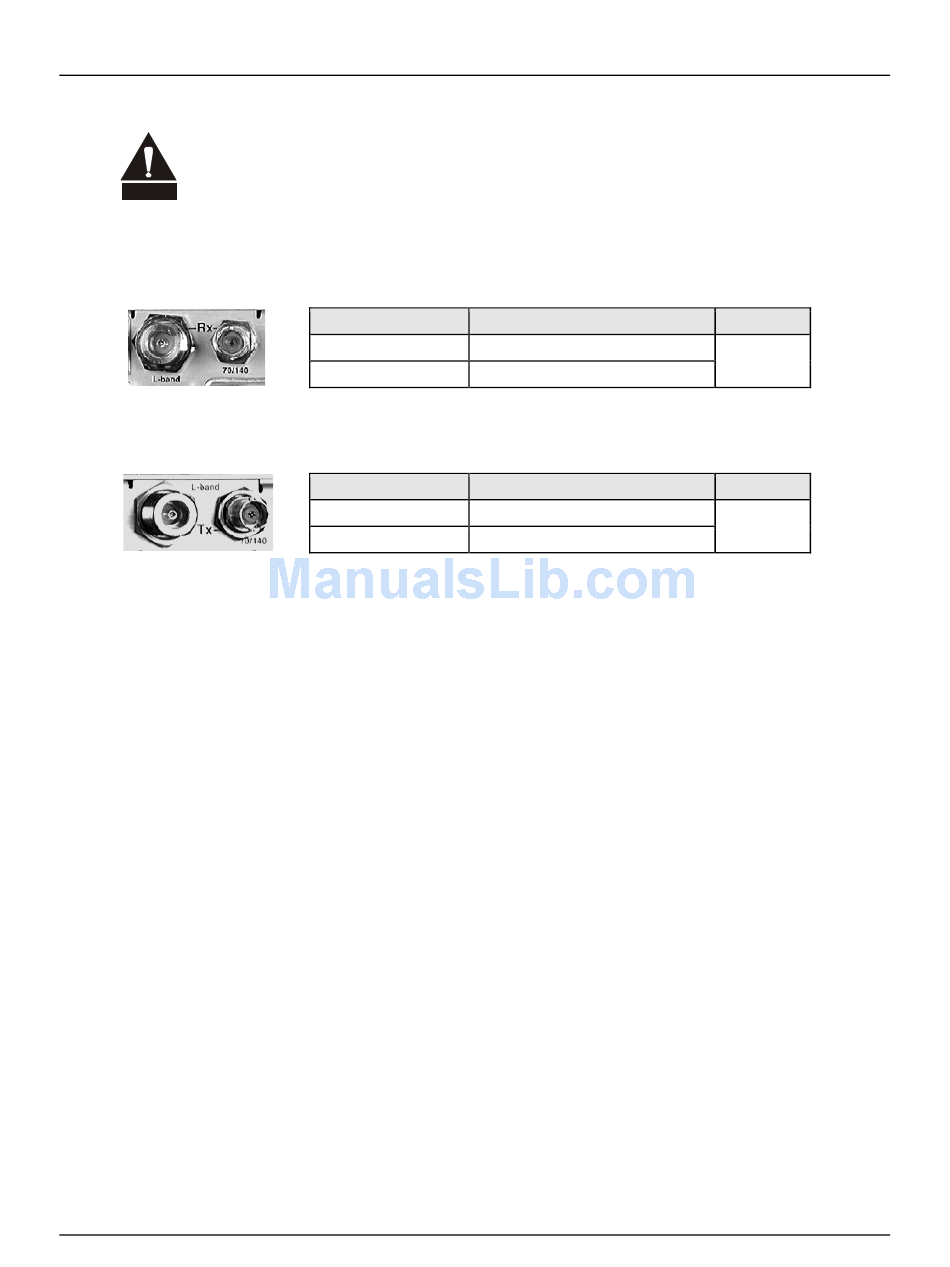

IF Connections


There may be DC voltages present on the Type 'N' Rx and Tx IF connectors, up
to a maximum of 48 volts.
CA UTIO N
3.2.1

Rx IF Connectors

3.2.2

Tx IF Connectors

Connector Type
Description
Type 'N'
Rx IF signal, L- band
BNC
Rx IF signal, 70/140 MHz band
Connector Type
Description
Type 'N'
Tx IF signal, L- band
BNC
Tx IF signal, 70/140 MHz band
3–3
MN-0000036 (Ref MN/CDM625.IOM)
Direction
In
Direction
Out
Revision 1
