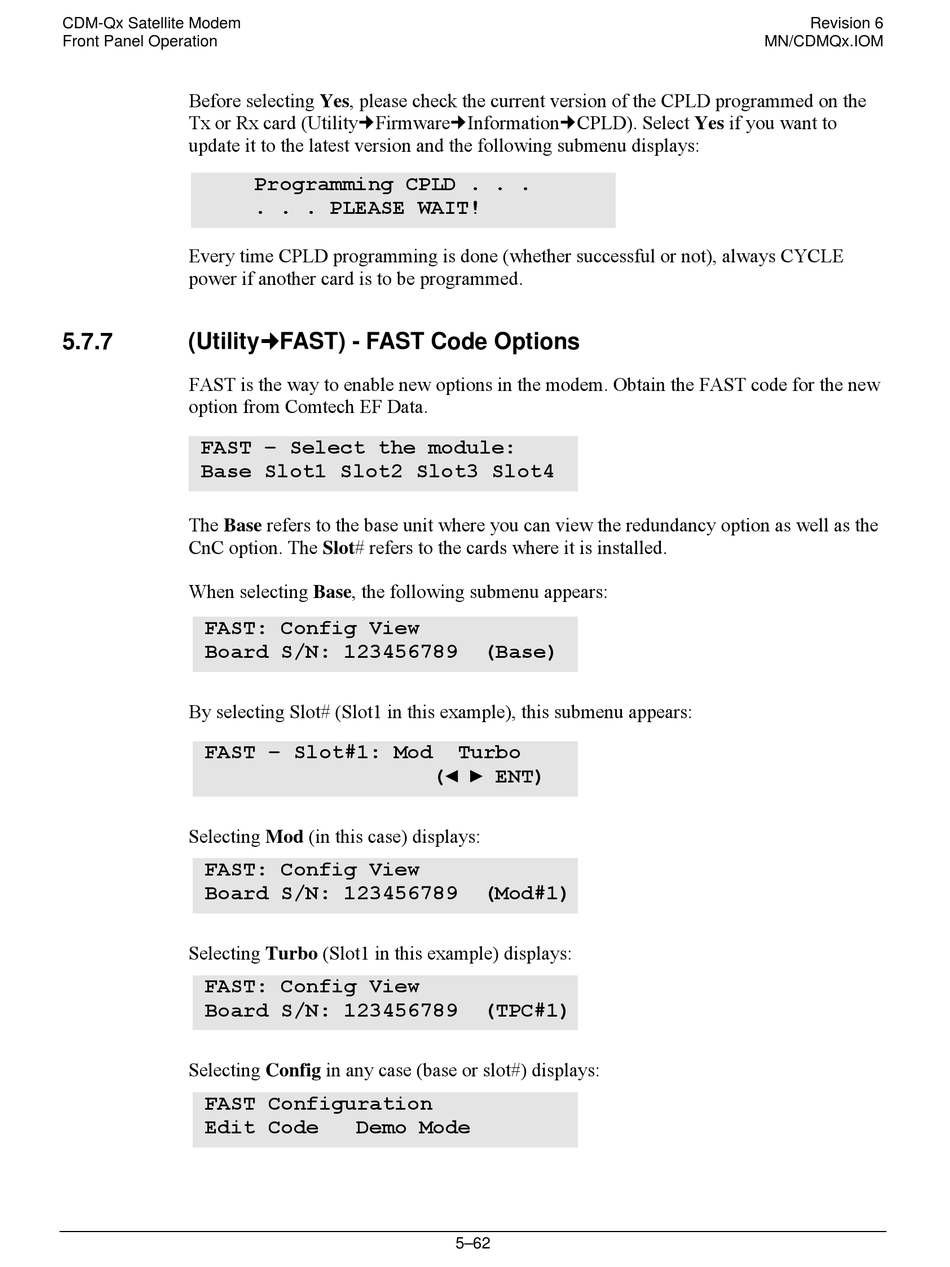

Front Panel Operation
Before selecting Yes, please check the current version of the CPLD programmed on the
Tx or Rx card (Utility%Firmware%Information%CPLD). Select Yes if you want to
update it to the latest version and the following submenu displays:
Every time CPLD programming is done (whether successful or not), always CYCLE
power if another card is to be programmed.
5.7.7
(Utility%FAST) - FAST Code Options
FAST is the way to enable new options in the modem. Obtain the FAST code for the new
option from Comtech EF Data.
FAST – Select the module:
Base Slot1 Slot2 Slot3 Slot4
The Base refers to the base unit where you can view the redundancy option as well as the
CnC option. The Slot# refers to the cards where it is installed.
When selecting Base, the following submenu appears:
FAST: Config View
Board S/N: 123456789
By selecting Slot# (Slot1 in this example), this submenu appears:
FAST – Slot#1: Mod
Selecting Mod (in this case) displays:
FAST: Config View
Board S/N: 123456789
Selecting Turbo (Slot1 in this example) displays:
FAST: Config View
Board S/N: 123456789
Selecting Config in any case (base or slot#) displays:
FAST Configuration
Edit Code
Programming CPLD . . .
. . . PLEASE WAIT!
(◄ ► ENT)
Demo Mode
(Base)
Turbo
(Mod#1)
(TPC#1)
5–62
Revision 6
MN/CDMQx.IOM
