Example of interconnection
GeCon x Engine controller

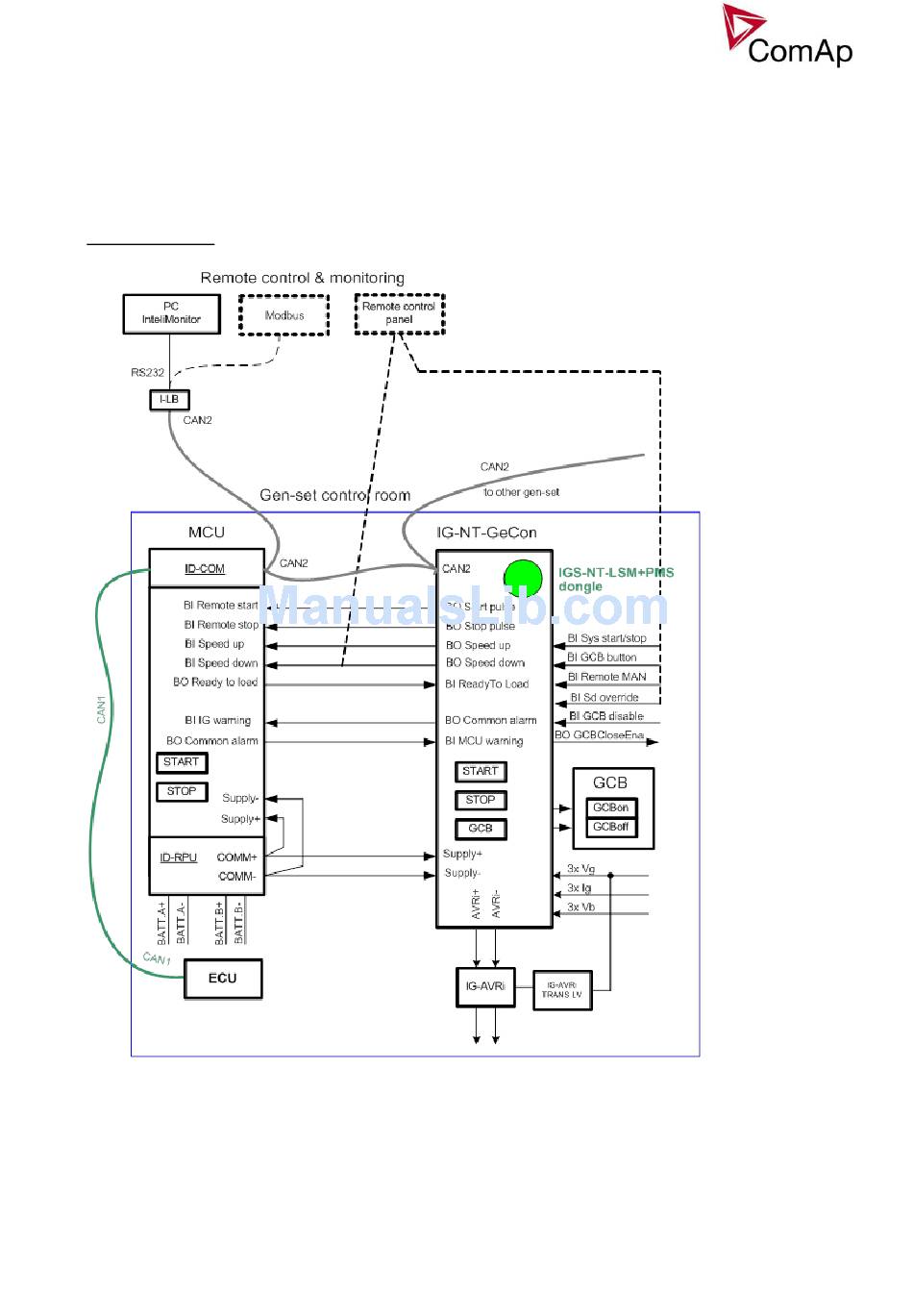

Schematic wiring:
Important signals/ interconnections:
From GeCon side:
BO: Start pulse, Stop pulse - for sending Start and Stop signals
Speed control (during synchronisation, regulation):
BO: Speed Up, Speed Down or Aout SG out
