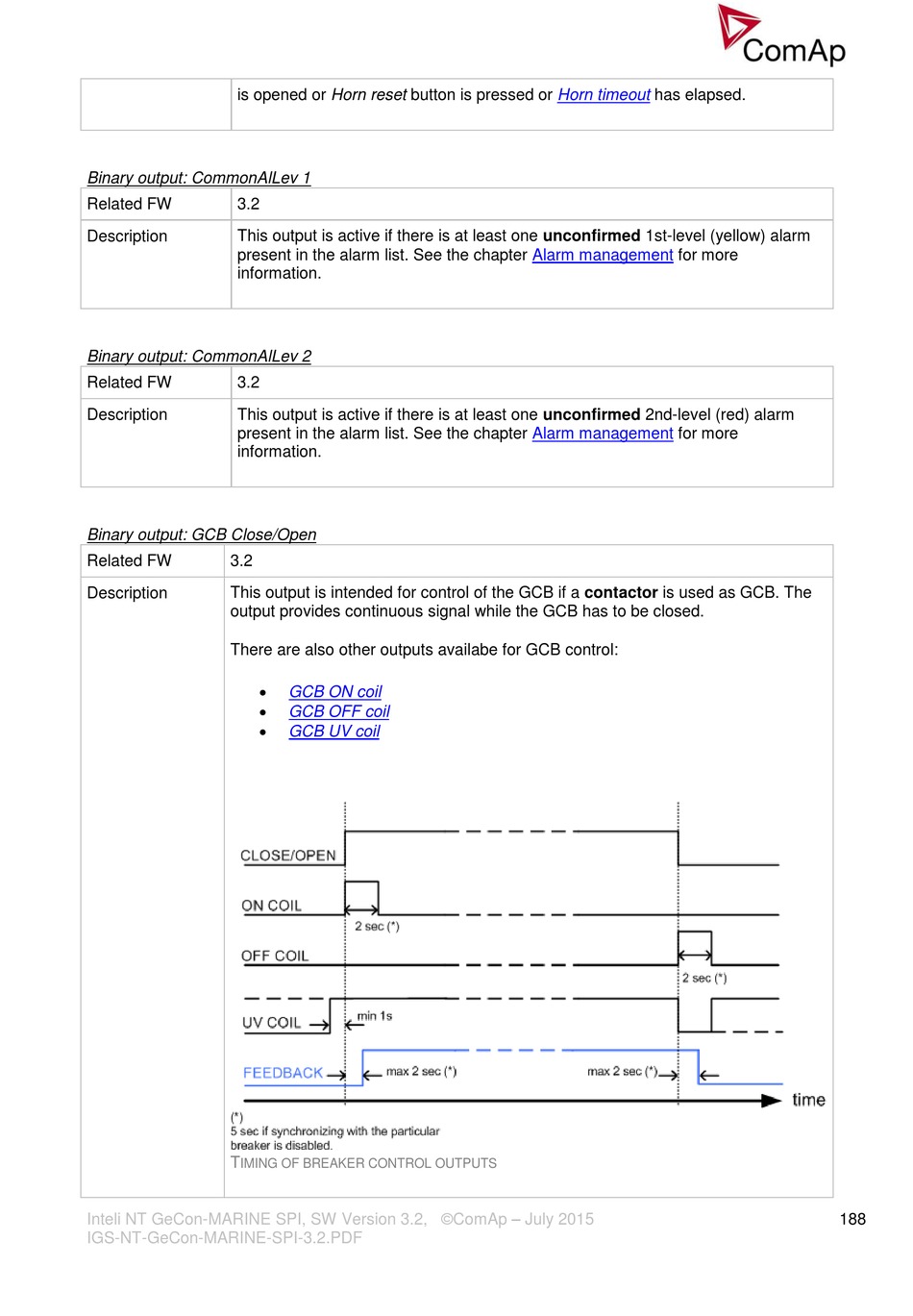

ComAp IG-NT GC Reference Manual page 188

is opened or Horn reset button is pressed or
Binary output: CommonAlLev 1
Related FW 3.2
Description This output is active if there is at least one unconfirmed 1st-level (yellow) alarm
present in the alarm list. See the chapter
information.
Binary output: CommonAlLev 2
Related FW 3.2
Description This output is active if there is at least one unconfirmed 2nd-level (red) alarm
present in the alarm list. See the chapter
information.
Binary output: GCB Close/Open
Related FW 3.2
Description This output is intended for control of the GCB if a contactor is used as GCB. The
output provides continuous signal while the GCB has to be closed.
There are also other outputs availabe for GCB control:
T
IMING OF BREAKER CONTROL OUTPUTS
Inteli NT GeCon-MARINE SPI, SW Version 3.2, ©ComAp – July 2015
IGS-NT-GeCon-MARINE-SPI-3.2.PDF

GCB ON coil

GCB OFF coil

GCB UV coil
Horn timeout has elapsed.
Alarm management for more
Alarm management for more
