ComAp IG-NT GC Reference Manual page 157

Binary input: CtrlHBeat sens
Related FW 3.2
Description This input is used at a redundant controller to sense the "heart beat" from the
main controller. The input is to be connected to the output
main controller.
If the redundant controller does not sense the heart beat from the main one, it will
activate the binary output
disconnects the dead main controller from the genset, connects the redundant
controller instead and activates it.
N
OTE
Learn more about redundancy in separate chapter
Binary input: ForceValueIn 1
Related FW 3.2
Description This input activates the Force value #1 block. If the input is active, the value of the
setpoint, to which the Force value #1 block is configured, will be overriden by value
of the alternative setpoint assigned to the Force value #1 block.
N :
OTE
If there are more than one force value blocks configured onto one setpoint then the
highest priority has the block with the lowest index (i.e. the first active block
according to the list displayed in GenConfig in the Force value window at the related
setpoint).
N :
OTE
Watch a training video about force value function here:
http://www.comap.cz/support/training/training-videos/.

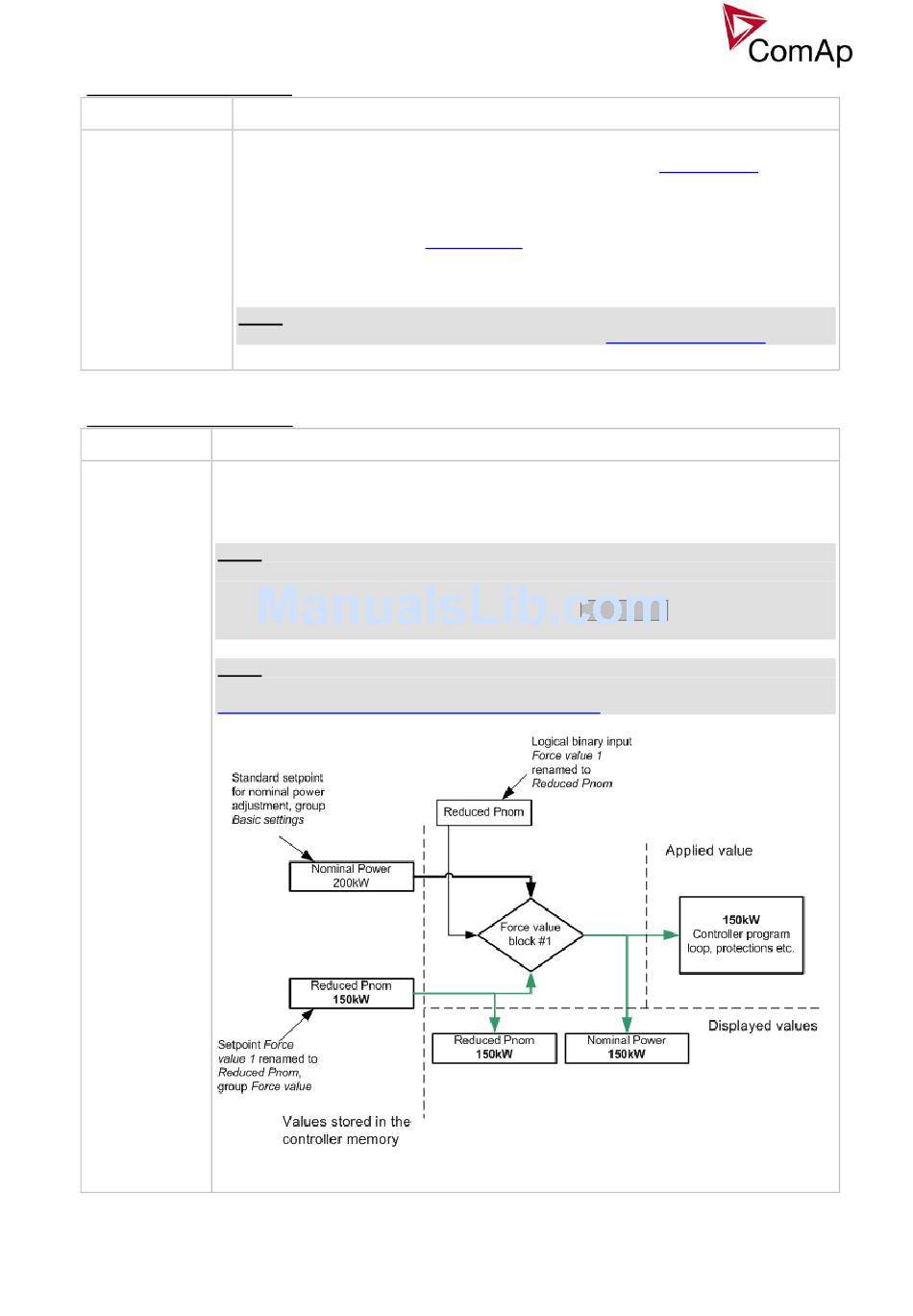

E
XAMPLE OF AN ACTIVE FORCE VALUE BLOCK
Inteli NT GeCon-MARINE SPI, SW Version 3.2, ©ComAp – July 2015
IGS-NT-GeCon-MARINE-SPI-3.2.PDF
CtrlHBeat
:
CtrlHeartBeat
FD, which has to be wired such a way, that it
Redundant
of the
controllers.
