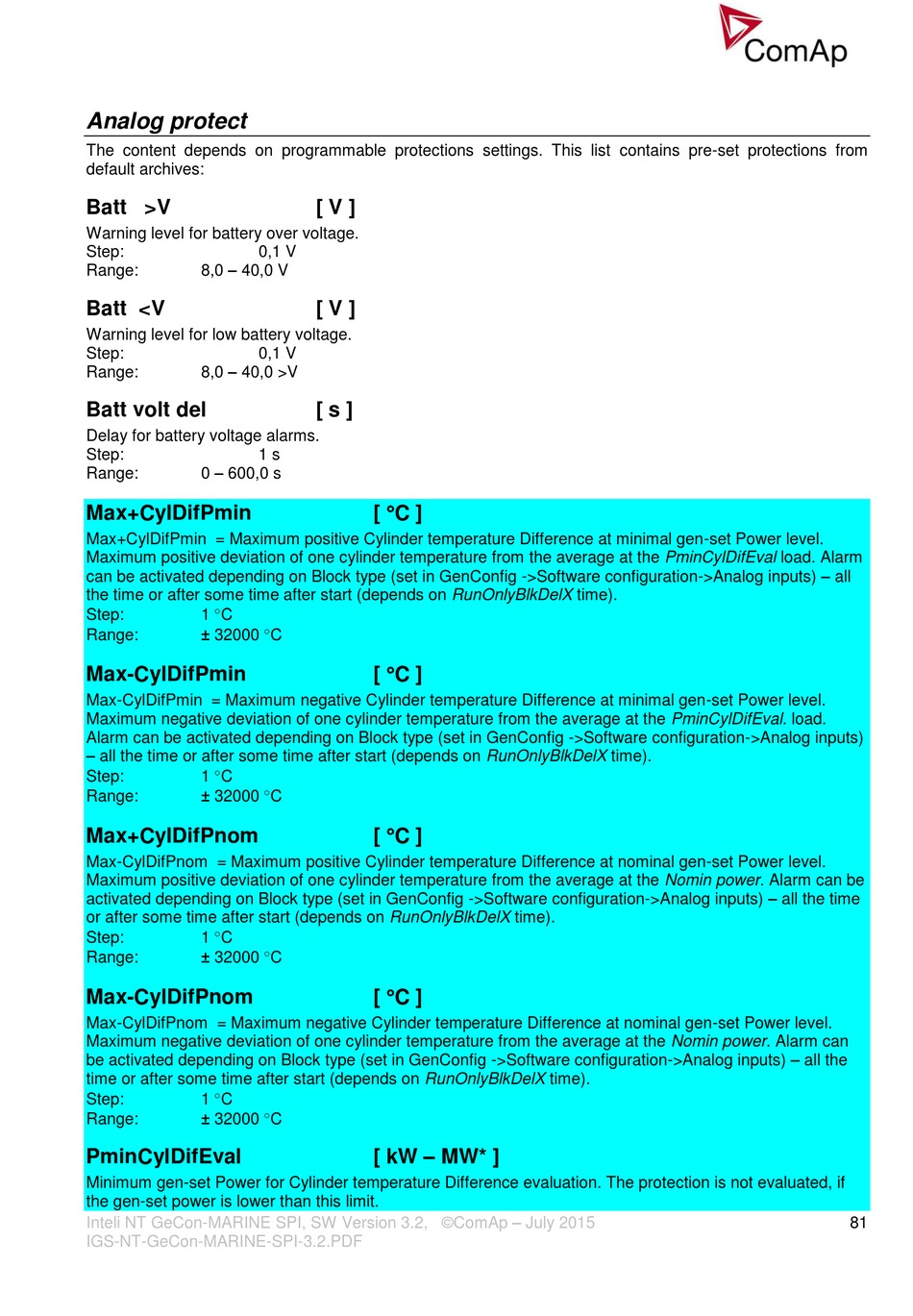

Analog protect

The content depends on programmable protections settings. This list contains pre-set protections from
default archives:
Batt >V
Warning level for battery over voltage.
Step:
8,0 – 40,0 V
Range:
Batt <V
Warning level for low battery voltage.
Step:
8,0 – 40,0 >V
Range:
Batt volt del
Delay for battery voltage alarms.
Step:
0 – 600,0 s
Range:
Max+CylDifPmin
Max+CylDifPmin = Maximum positive Cylinder temperature Difference at minimal gen-set Power level.
Maximum positive deviation of one cylinder temperature from the average at the PminCylDifEval load. Alarm
can be activated depending on Block type (set in GenConfig ->Software configuration->Analog inputs) – all
the time or after some time after start (depends on RunOnlyBlkDelX time).
1 C
Step:
± 32000 C
Range:
Max-CylDifPmin
Max-CylDifPmin = Maximum negative Cylinder temperature Difference at minimal gen-set Power level.
Maximum negative deviation of one cylinder temperature from the average at the PminCylDifEval. load.
Alarm can be activated depending on Block type (set in GenConfig ->Software configuration->Analog inputs)
– all the time or after some time after start (depends on RunOnlyBlkDelX time).
1 C
Step:
± 32000 C
Range:
Max+CylDifPnom
Max-CylDifPnom = Maximum positive Cylinder temperature Difference at nominal gen-set Power level.
Maximum positive deviation of one cylinder temperature from the average at the Nomin power. Alarm can be
activated depending on Block type (set in GenConfig ->Software configuration->Analog inputs) – all the time
or after some time after start (depends on RunOnlyBlkDelX time).
1 C
Step:
± 32000 C
Range:
Max-CylDifPnom
Max-CylDifPnom = Maximum negative Cylinder temperature Difference at nominal gen-set Power level.
Maximum negative deviation of one cylinder temperature from the average at the Nomin power. Alarm can
be activated depending on Block type (set in GenConfig ->Software configuration->Analog inputs) – all the
time or after some time after start (depends on RunOnlyBlkDelX time).
1 C
Step:
± 32000 C
Range:
PminCylDifEval
Minimum gen-set Power for Cylinder temperature Difference evaluation. The protection is not evaluated, if
the gen-set power is lower than this limit.
