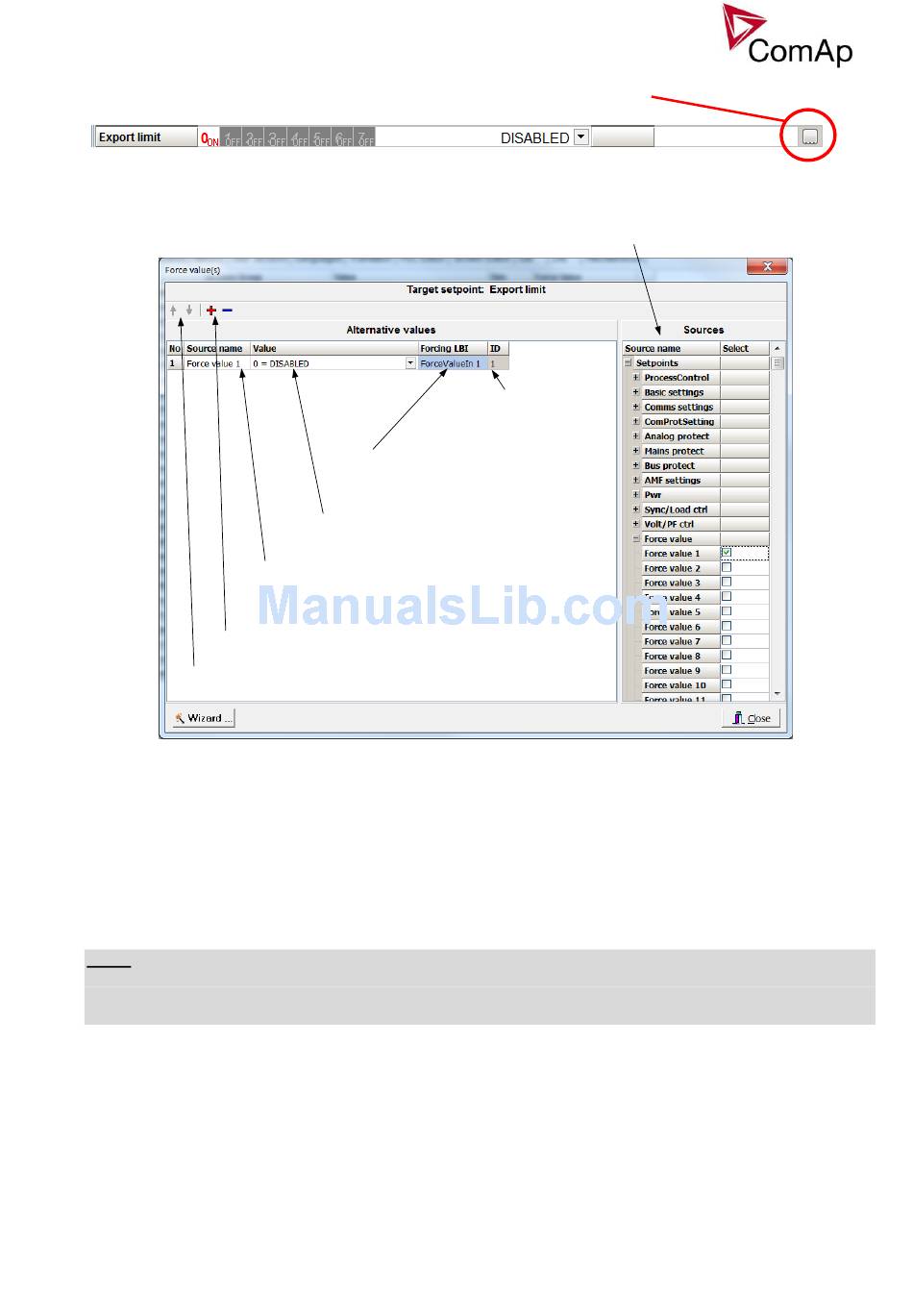

Setpoints that are available for forcing may be identified by Force value button on the right side in GenConfig
(see the figure below).
When the button is clicked, Force value dialog appears.
Change the name of the source setpoint
(available only for Force value 1-16 setpoints)
Add or remove Force value
Change position of Force value functions (priority)
For example if we add Force value:Force value 1 to be forced to ProcessControl:Export limit as value 0
(DISABLED) by Binary Input F
DISABLED by activation of F
Force value:ExportDisabled and Binary Input as well to e.g. D
(only the corresponding names).
It is possible to use several force value functions for one setpoint. If more than one forcing Binary Input is
active, the one with the highest position (lowest number in the Force value dialog) is used.
It is possible as well to use one Binary Input to force multiple setpoints (e.g. in case of complex function
change).
N :
OTE
It is possible only to force value or setpoint in other setpoint if their dimension and range are the same (e.g.
only value with dimension in hours and which is Integer 16 to a setpoint with dimension hours and which is
as well Integer 16). You may use PLC block Convert to change the dimension and range if needed.
