LOAD
MCB
ProcessControl: Load ctrl PtM = ANEXT BASELOAD
LOAD
MCB
ProcessControl : IM/ EX
LoadCtrlPtm = IM / EX
ProcessControl :
ProcessControl : I / E- Pm meas =

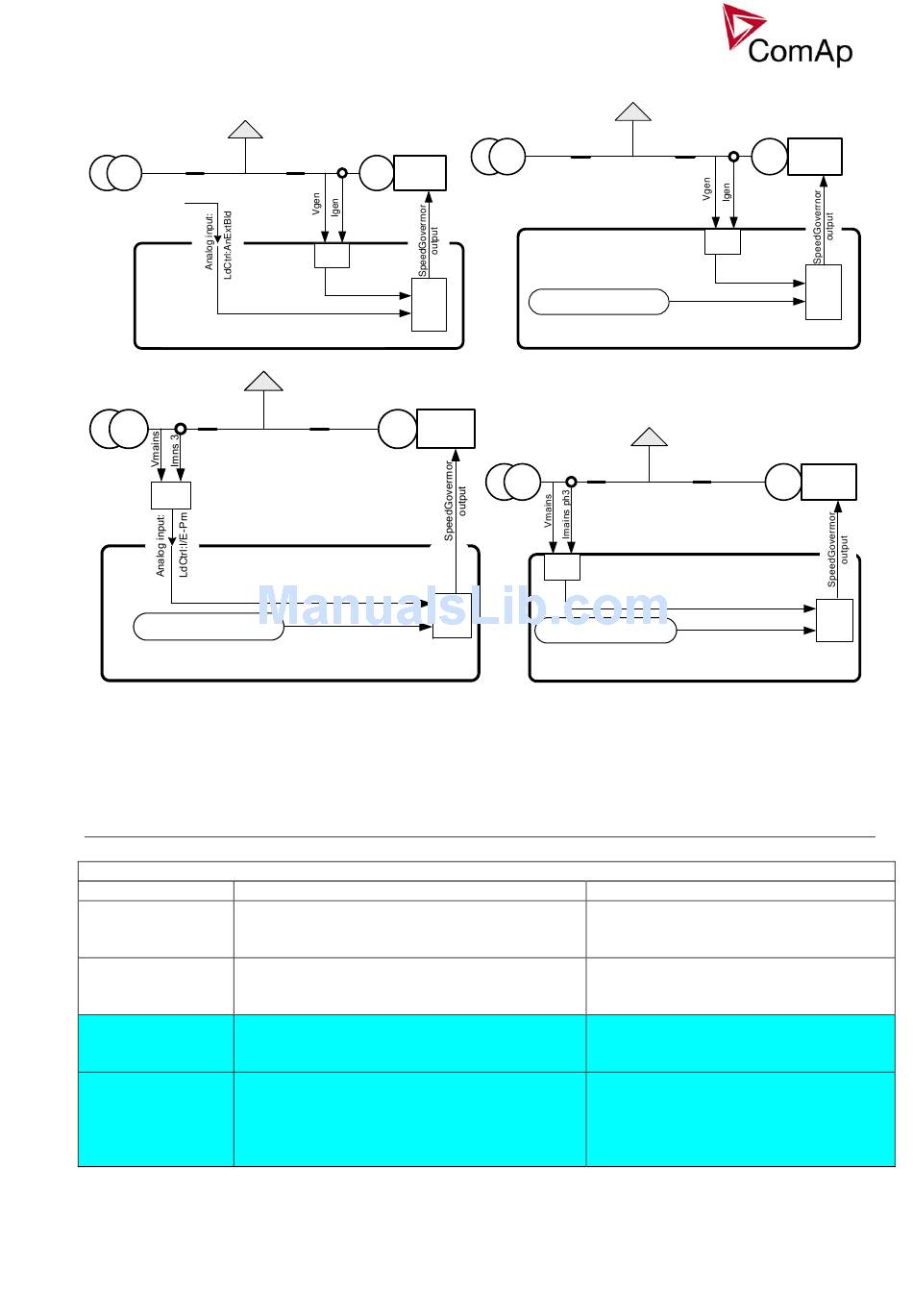

PF control modes

ProcCtrlSingle: PF ctrl PtM
Mode Function
BASEPF Gen-set power factor is maintained at
constant level adjusted by the setpoint
Base PF.
PF-IM/EX Gen-set power factor is controlled so, that the
mains power factor is maintained constant at
the level adjusted by setpoint Import PF
ANEXT BASEPF Gen-set power factor is maintained at
constant level given by the analog input
PFCtrl:AnExBPF
ANEXT PF-IM/EX Gen-set load is controlled so, that the mains
power factor is maintained constant at the
level given by the analog input PFCtrl:AnExI/E
– I/E power factor is measured by controller
on auxiliary CT input or by analog input.
Inteli NT GeCon-MARINE SPI, SW Version 3.2, ©ComAp – July 2015
IGS-NT-GeCon-MARINE-SPI-3.2.PDF
GCB
Speed
governor
Controller
Actual power
Requested power
GCB
governor
Controller
Actual I/E power
Requested I /E power
ANALOG INPUT
MCB
ProcessControl: Baseload
ProcessControl: Load ctrl PtM = BASELOAD
Speed
MCB
ProcessControl :
ProcessControl :
ProcessControl :
Setpoints
ProcCtrlSingle: PF ctrl PtM
ProcCtrlSingle: Import PF,
I/E Qm-meas
Analog input: PFCtrl:AnExBPF
ProcCtrlSingle: I/E Qm-meas
Analog input: PFCtrl:AnExI/E
LOAD
GCB
Controller
Actual power
Requested power
LOAD
GCB
Controller
Actual I/ E power
Requested I/E power
IM/EX
LoadCtrlPtm = IM / EX
I/E - Pm meas = IM3 CT INPUT
Speed
governor
Speed
governor
18
