ComAp IG-NT GC Reference Manual page 54

CB open command:
BO: CB close/open
BO: CB UV coil
BO: CB OFF coil
BI: CB fdb
BI: CB fdb neg
BO: CB status

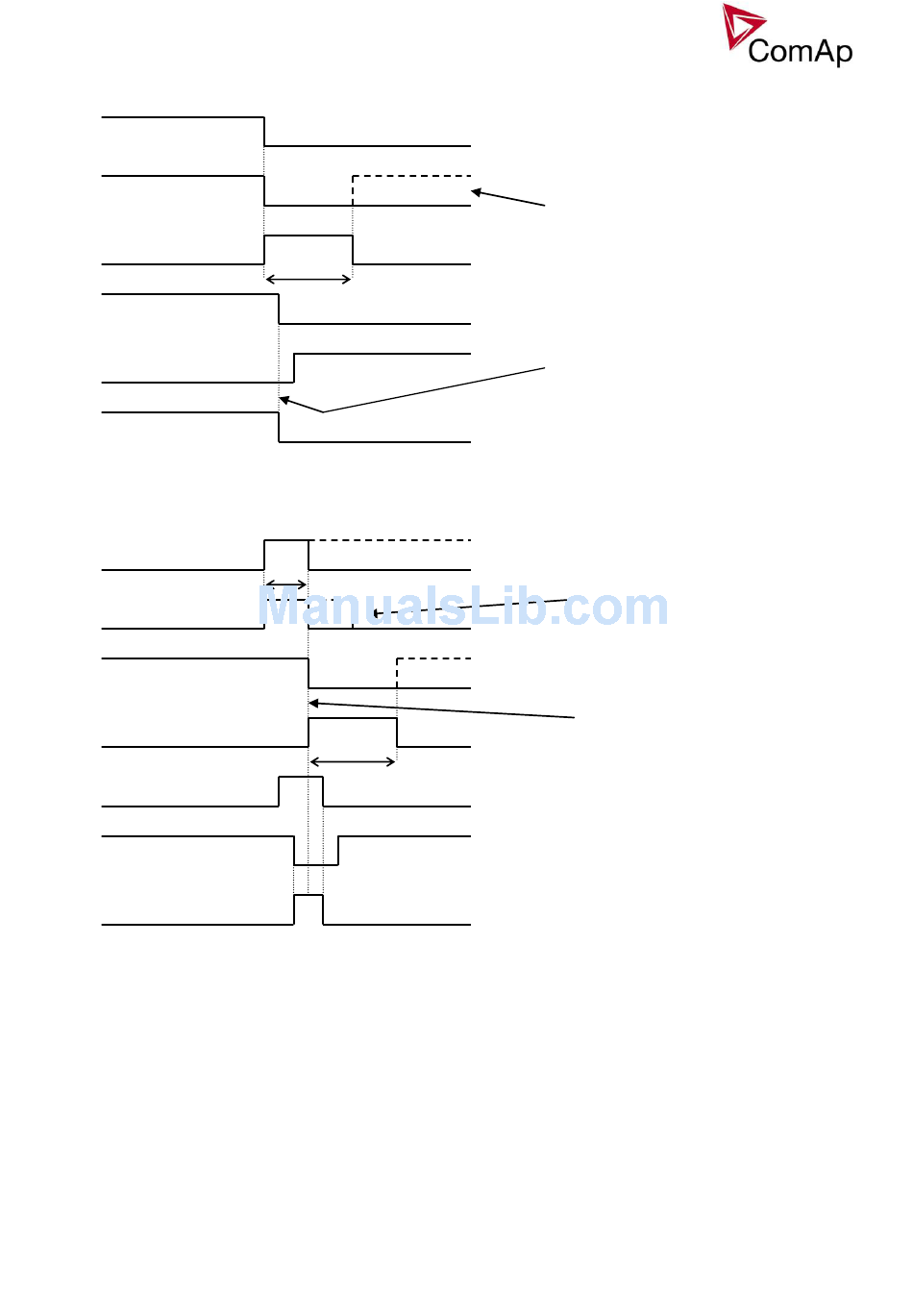

Transition closing -> opening (opening command is issued during closing pulse):
BO: CB close/open
BO: CB ON coil
BO: CB UV coil
BO: CB OFF coil
BI: CB fdb
BI: CB fdb neg
BO: CB status
Inteli NT GeCon-MARINE SPI, SW Version 3.2, ©ComAp – July 2015
IGS-NT-GeCon-MARINE-SPI-3.2.PDF
2s
<2s
2s
Further behavior of UV output
depends on the system status. In
case of transition to cooling stays
off, if the Cb was opened manually
and the engine keeps running, it
activates again after timeout
elapses.
During CB opening the CB status
LBO is deactivated with change of
the first feddback status
Closing pulse is shortened, opening
sequence is started immediatelly
CB opening by protection or manual
command (button pressed)
54
