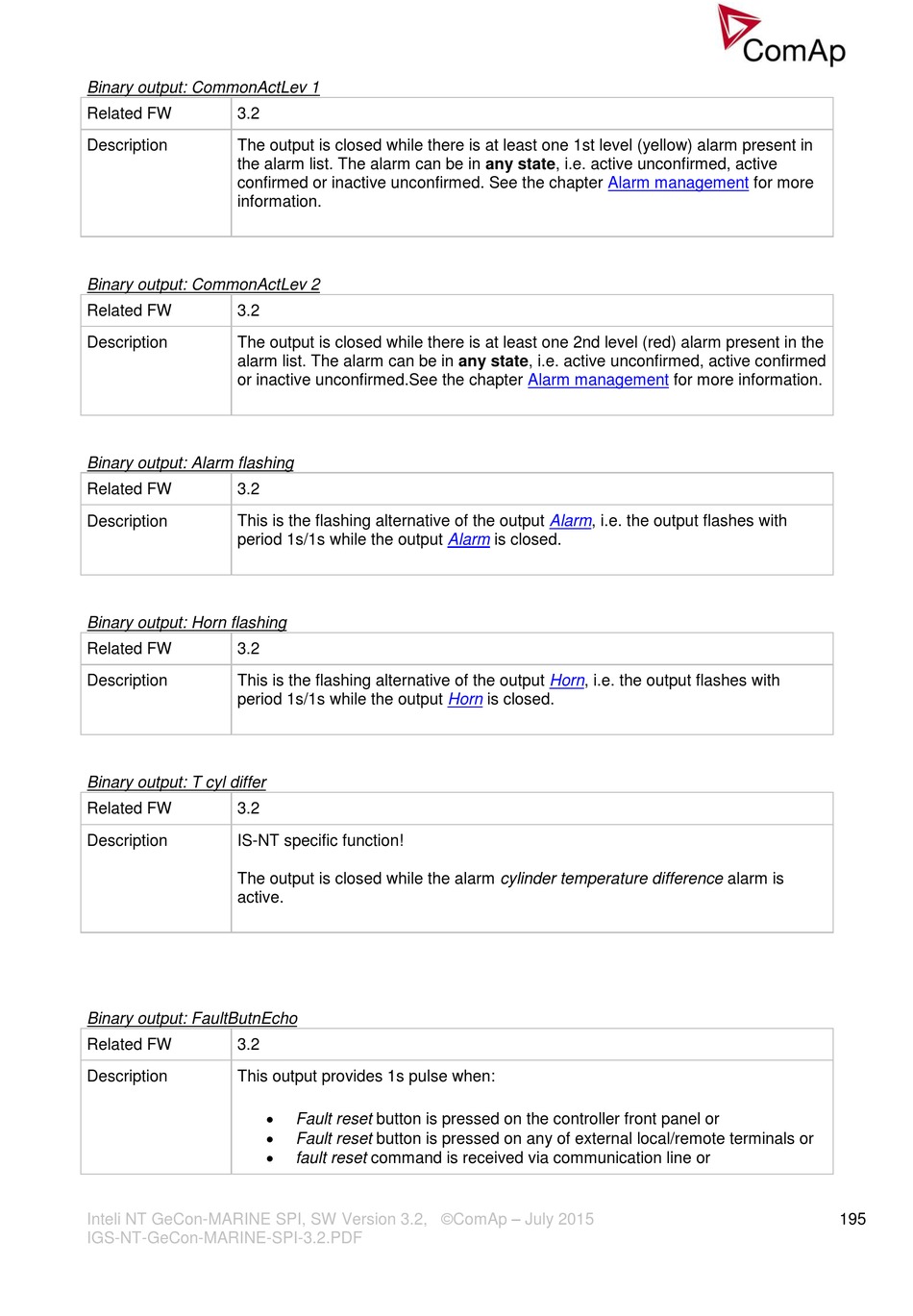

ComAp IG-NT GC Reference Manual page 195

Binary output: CommonActLev 1
Related FW 3.2
Description The output is closed while there is at least one 1st level (yellow) alarm present in
the alarm list. The alarm can be in any state, i.e. active unconfirmed, active
confirmed or inactive unconfirmed. See the chapter
information.
Binary output: CommonActLev 2
Related FW 3.2
Description The output is closed while there is at least one 2nd level (red) alarm present in the
alarm list. The alarm can be in any state, i.e. active unconfirmed, active confirmed
or inactive unconfirmed.See the chapter
Binary output: Alarm flashing
Related FW 3.2
Description This is the flashing alternative of the output Alarm, i.e. the output flashes with
period 1s/1s while the output
Binary output: Horn flashing
Related FW 3.2
This is the flashing alternative of the output Horn, i.e. the output flashes with
Description
period 1s/1s while the output
Binary output: T cyl differ
Related FW 3.2
Description IS-NT specific function!
The output is closed while the alarm cylinder temperature difference alarm is
active.
Binary output: FaultButnEcho
Related FW 3.2
Description This output provides 1s pulse when:
Inteli NT GeCon-MARINE SPI, SW Version 3.2, ©ComAp – July 2015
IGS-NT-GeCon-MARINE-SPI-3.2.PDF

Fault reset button is pressed on the controller front panel or

Fault reset button is pressed on any of external local/remote terminals or

fault reset command is received via communication line or
Alarm management
Alarm management
Alarm is closed.
Horn is closed.
for more
for more information.
195
