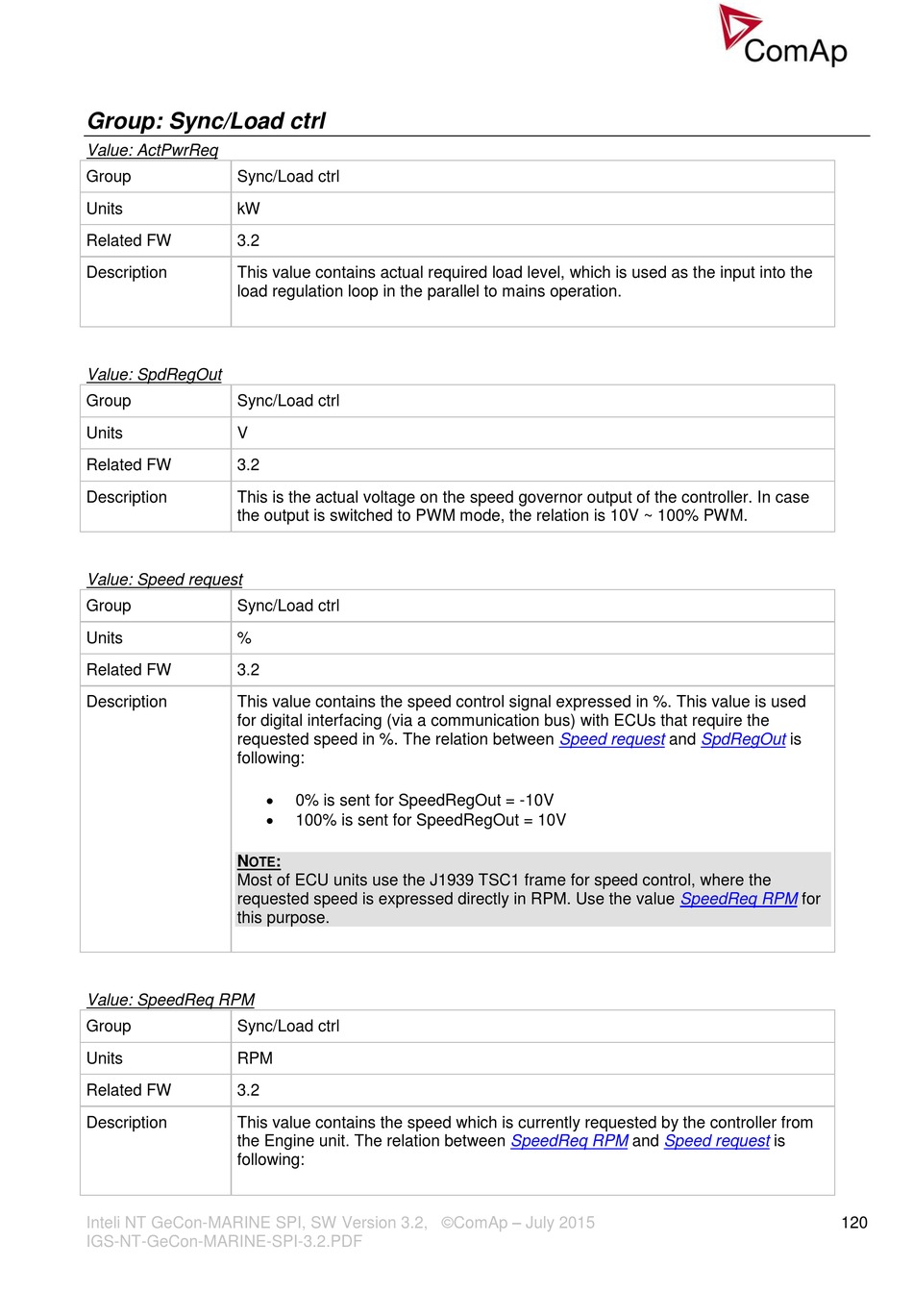

Group: Sync/Load ctrl

Value: ActPwrReq
Group Sync/Load ctrl
Units kW
Related FW 3.2
Description This value contains actual required load level, which is used as the input into the
load regulation loop in the parallel to mains operation.
Value: SpdRegOut
Group Sync/Load ctrl
Units V
Related FW 3.2
Description This is the actual voltage on the speed governor output of the controller. In case
the output is switched to PWM mode, the relation is 10V ~ 100% PWM.
Value: Speed request
Group Sync/Load ctrl
Units %
Related FW 3.2
Description This value contains the speed control signal expressed in %. This value is used
for digital interfacing (via a communication bus) with ECUs that require the
requested speed in %. The relation between
following:
N
OTE
Most of ECU units use the J1939 TSC1 frame for speed control, where the
requested speed is expressed directly in RPM. Use the value
this purpose.
Value: SpeedReq RPM
Group Sync/Load ctrl
Units RPM
Related FW 3.2
Description This value contains the speed which is currently requested by the controller from
the Engine unit. The relation between
following:
Inteli NT GeCon-MARINE SPI, SW Version 3.2, ©ComAp – July 2015
IGS-NT-GeCon-MARINE-SPI-3.2.PDF

0% is sent for SpeedRegOut = -10V

100% is sent for SpeedRegOut = 10V
:
Speed request and
SpeedReq RPM
SpeedReq RPM and Speed request
SpdRegOut is
for
is
