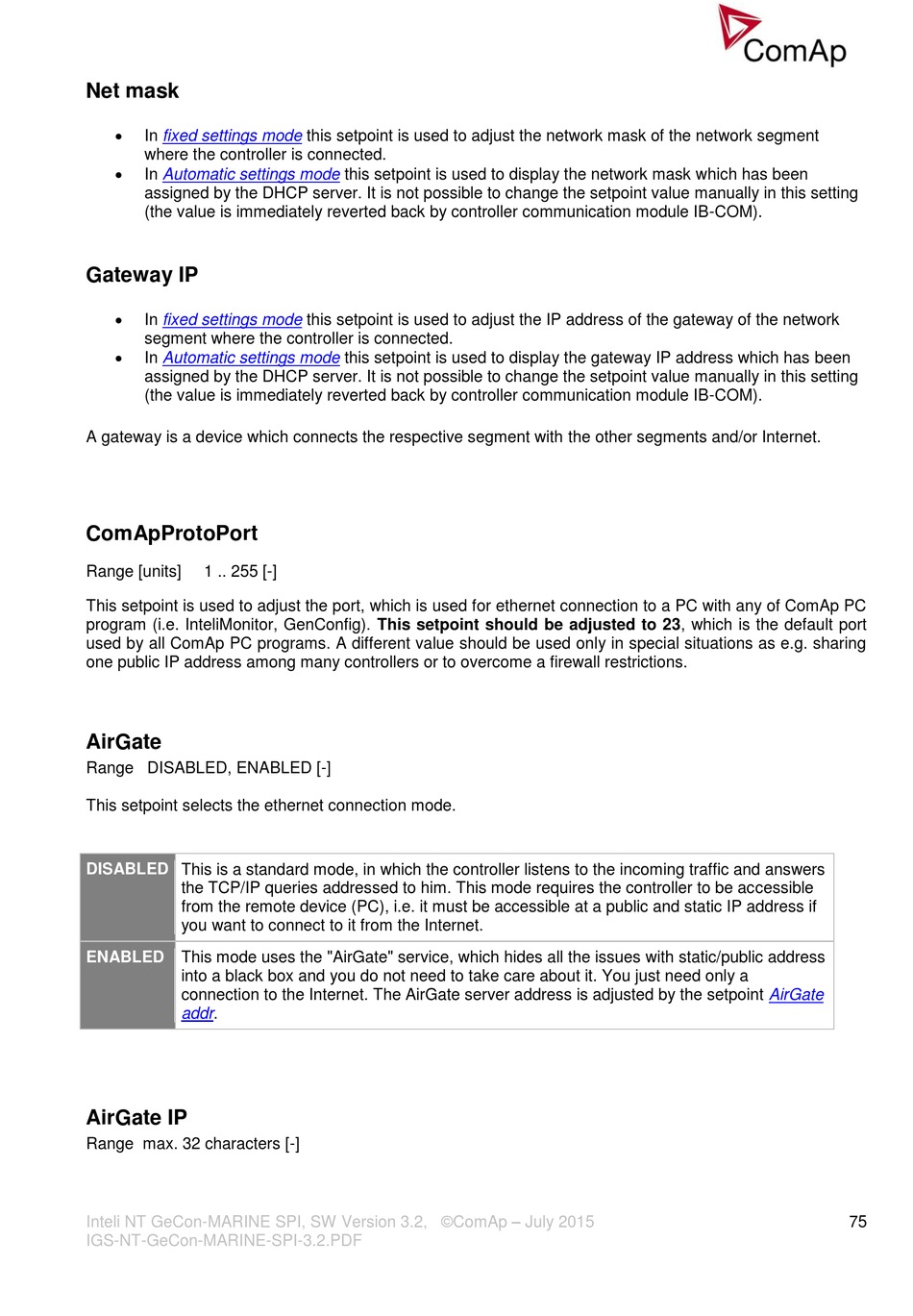

ComAp IG-NT GC Reference Manual page 75

Net mask

In fixed settings mode
where the controller is connected.

In Automatic settings mode
assigned by the DHCP server. It is not possible to change the setpoint value manually in this setting
(the value is immediately reverted back by controller communication module IB-COM).
Gateway IP

In fixed settings mode
segment where the controller is connected.

In Automatic settings mode
assigned by the DHCP server. It is not possible to change the setpoint value manually in this setting
(the value is immediately reverted back by controller communication module IB-COM).
A gateway is a device which connects the respective segment with the other segments and/or Internet.
ComApProtoPort
Range [units] 1 .. 255 [-]
This setpoint is used to adjust the port, which is used for ethernet connection to a PC with any of ComAp PC
program (i.e. InteliMonitor, GenConfig). This setpoint should be adjusted to 23, which is the default port
used by all ComAp PC programs. A different value should be used only in special situations as e.g. sharing
one public IP address among many controllers or to overcome a firewall restrictions.
AirGate
Range DISABLED, ENABLED [-]
This setpoint selects the ethernet connection mode.
DISABLED
This is a standard mode, in which the controller listens to the incoming traffic and answers
the TCP/IP queries addressed to him. This mode requires the controller to be accessible
from the remote device (PC), i.e. it must be accessible at a public and static IP address if
you want to connect to it from the Internet.
ENABLED
This mode uses the "AirGate" service, which hides all the issues with static/public address
into a black box and you do not need to take care about it. You just need only a
connection to the Internet. The AirGate server address is adjusted by the setpoint
addr.
AirGate IP
Range max. 32 characters [-]
Inteli NT GeCon-MARINE SPI, SW Version 3.2, ©ComAp – July 2015
IGS-NT-GeCon-MARINE-SPI-3.2.PDF
this setpoint is used to adjust the network mask of the network segment
this setpoint is used to display the network mask which has been
this setpoint is used to adjust the IP address of the gateway of the network
this setpoint is used to display the gateway IP address which has been
AirGate
75
