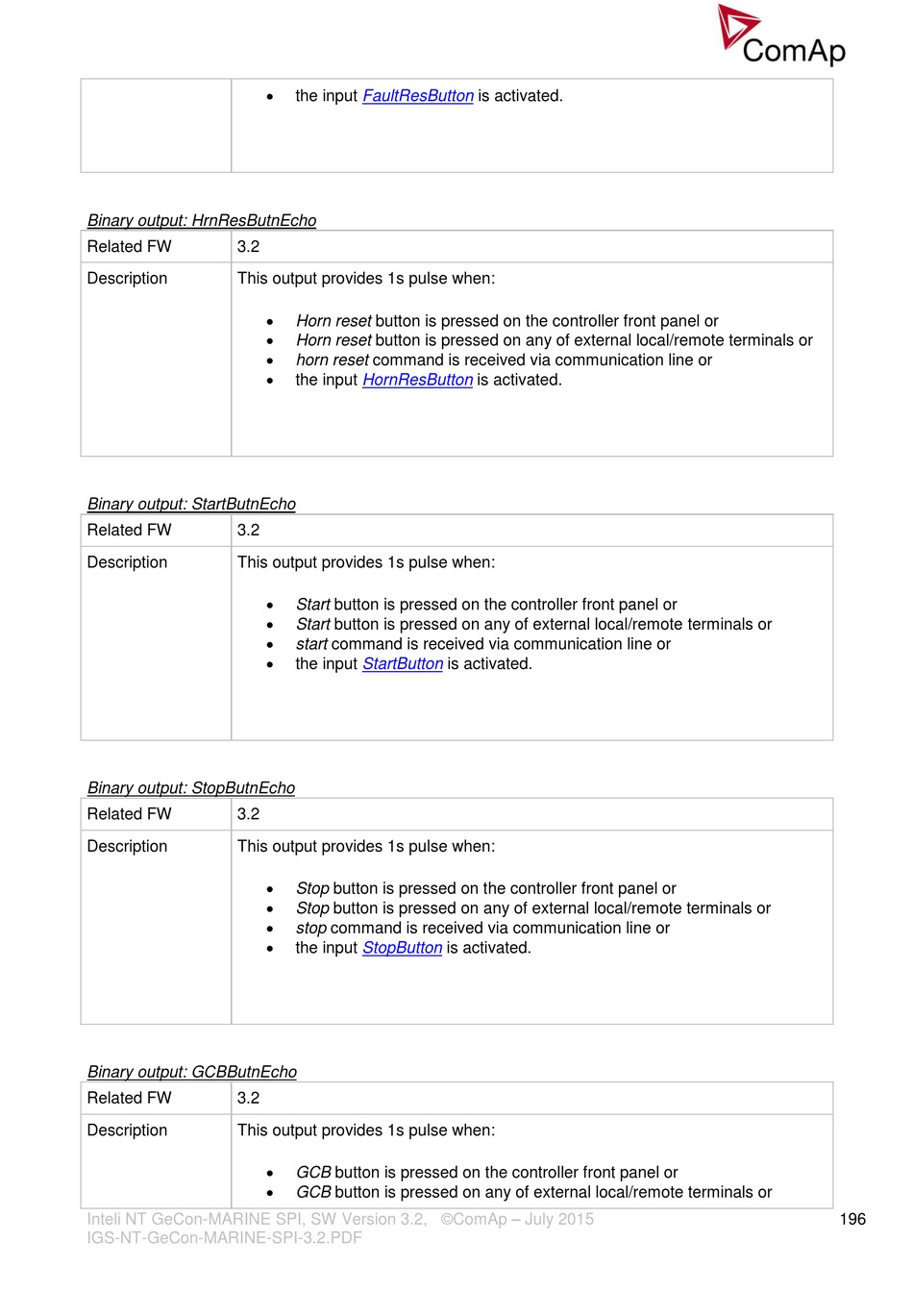

ComAp IG-NT GC Reference Manual page 196

Binary output: HrnResButnEcho
Related FW 3.2
Description This output provides 1s pulse when:
Binary output: StartButnEcho
Related FW 3.2
Description This output provides 1s pulse when:
Binary output: StopButnEcho
Related FW 3.2
Description This output provides 1s pulse when:
Binary output: GCBButnEcho
Related FW 3.2
Description This output provides 1s pulse when:
Inteli NT GeCon-MARINE SPI, SW Version 3.2, ©ComAp – July 2015
IGS-NT-GeCon-MARINE-SPI-3.2.PDF

the input FaultResButton

Horn reset button is pressed on the controller front panel or

Horn reset button is pressed on any of external local/remote terminals or

horn reset command is received via communication line or

the input HornResButton

Start button is pressed on the controller front panel or

Start button is pressed on any of external local/remote terminals or

start command is received via communication line or

the input StartButton

Stop button is pressed on the controller front panel or

Stop button is pressed on any of external local/remote terminals or

stop command is received via communication line or

the input StopButton

GCB button is pressed on the controller front panel or

GCB button is pressed on any of external local/remote terminals or
is activated.
is activated.
is activated.
is activated.
