Installation and Basic Configuration Guide
For information about the Syslog buffer and messages, see "Using Syslog" on page A-1.
Using the Web Management Interface for Basic Configuration Changes
The Web management interface enables you to easily make numerous configuration changes by entering or
changing information on configuration panels such as the one shown in Figure 6.1.

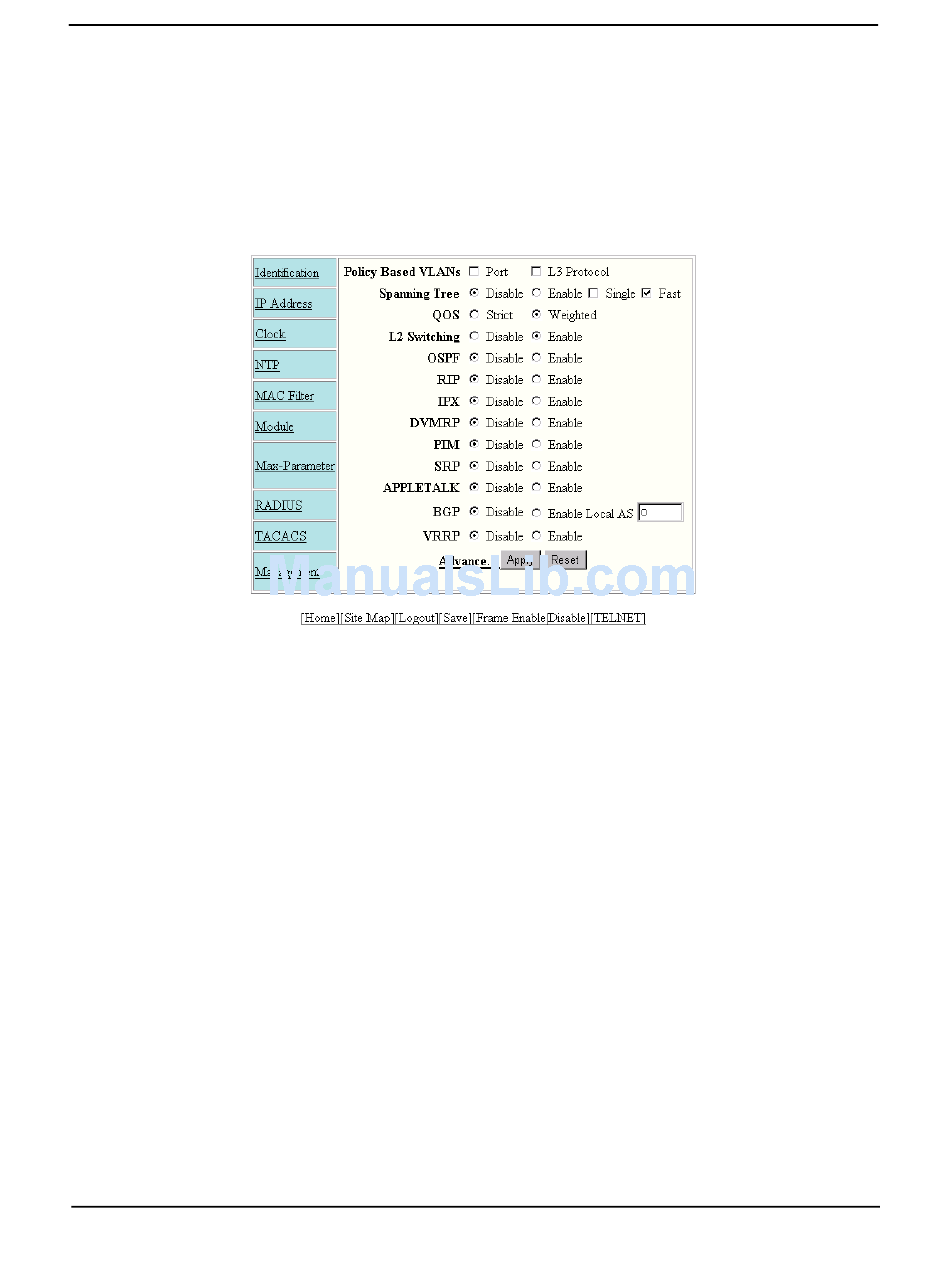

Figure 6.1 System configuration panel for an HP
You can perform the following configuration tasks from the System configuration panel:
• Enter system administration information.
• Assign IP sub-net (interface) addresses and masks.
• Configure Domain Name Server (DNS) Resolver.
• Define a MAC address filter.
• Set the system clock.
• Configure the device to use a Simple Network Time Protocol (SNTP) server.
• Enable port-based and/or Layer 3 protocol VLANs.
• Enable or disable protocol—OSPF, RIP, IPX, DVMRP, PIM, VRRP, BGP4, AppleTalk.
• Enable or disable Spanning Tree Protocol.
• Enable or disable SNMP operation and configure SNMP community strings, trap receivers, and other
parameters.
• Enable or disable IEEE 802.1q VLAN tagging.
• Enable or disable Layer 2 switching.
• Enable or disable Telnet.
• Change the aging period (switch age time) for entries in the address table.
• Assign a mirror port.
• Modify system parameters.
6 - 2
Routing Switch
