10-64 Body

ROADSIDE EMERGENCY EQUIPMENT

Tire Jack and Optional Triangle Warning Kit
Hold-Down Bracket Replacement
(For Two-Passenger Model)
Removal
1. Remove two wingnuts, washers, and hold-down brackets
(Figure 10-124).
2. Remove tire jack and triangle warning kit.
3. Remove two studs from bracket.
Installation
1. Place tire jack and triangle warning kit in place
(Figure 10-124).
2. Install two studs on bracket.
3. Install two hold-down brackets on studs with two washers
and wing nuts.
HOLD-DOWN BRACKET
STUD
TIRE JACK
BRACKET

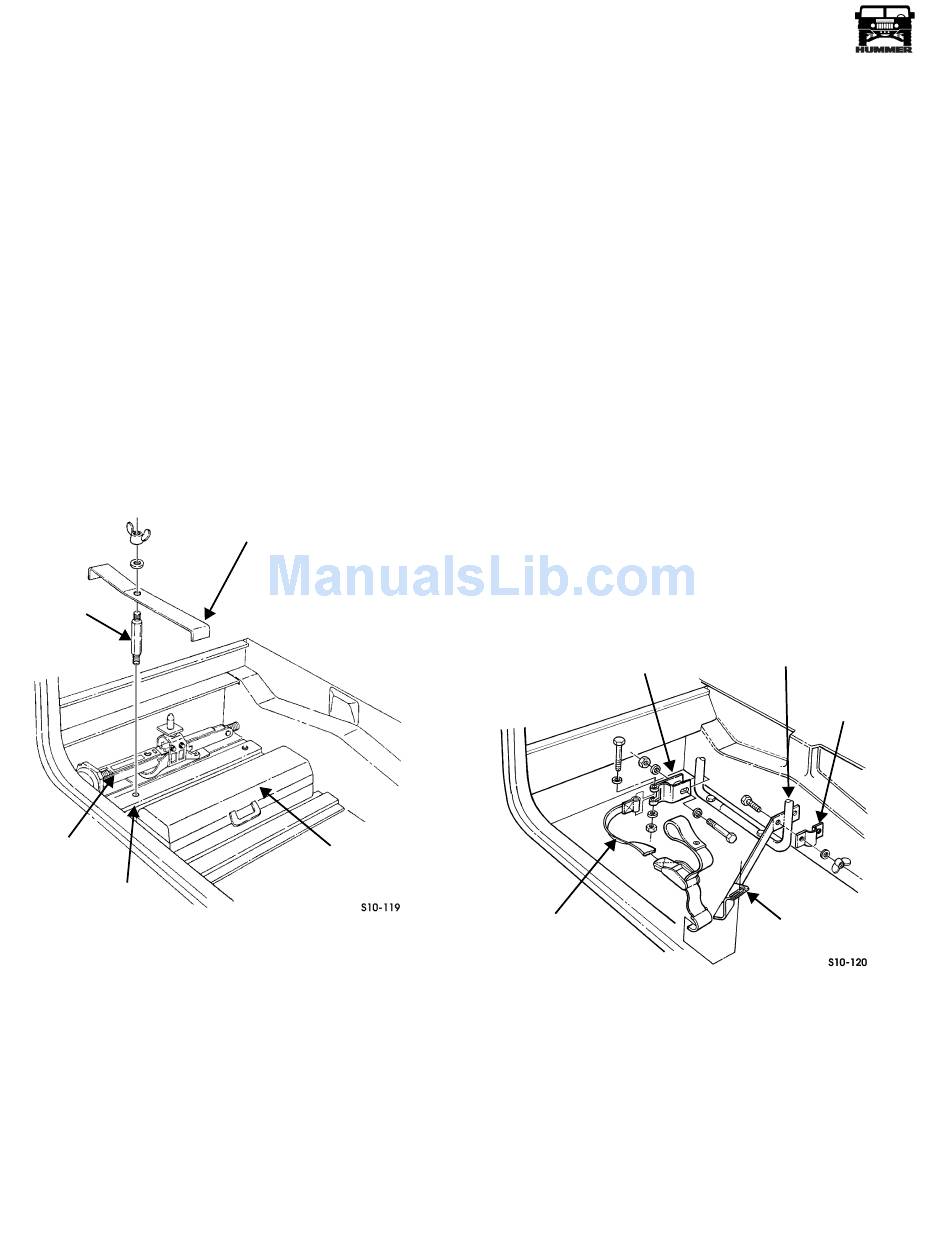

Figure 10-124: Emergency Equipment Hold-Down
Bracket - Two-Passenger Vehicle
Tire Jack and Optional Triangle Warning Kit
Hold-Down Replacement
(Four-Passenger Vehicle, Station Wagon,
and Open Body)
Removal
1.
2.
3.
4.
Installation
1.
2.
3.
4.
TRIANGLE
WARNING KIT
(OPTIONAL)
Figure 10-125: Emergency Equipment Hold-Down
Bracket Replacement — Four-Passenger Vehicle
Remove triangle warning kit and tire jack from under right
rear seat.
Remove two wing nuts, washers, screws, clamp bracket,
and hold-down bracket from seat support (Figure 10-125).
Remove nut, washer, screw, washer, and strap bracket
from seat support.
Remove nut, washer, screw, washer, and strap from strap
bracket.
Secure strap to strap bracket with screw, two washers, and
nut (Figure 10-125).
Secure strap bracket to seat support with screw, two
washers, and nut.
Secure hold-down bracket and clamp bracket to seat
support with two screws, washers, and wing nuts.
Position tire jack and triangle warning kit in place, and
secure with strap.
STRAP BRACKET
STRAP
®
SEAT SUPPORT
CLAMP
BRACKET
HOLD-DOWN
BRACKET
