11. Position joint inner housing over bearing assembly.
NOTE: Ensure all ball bearings are in the tracks of the inner
joint.
12. Secure retainer ring in groove of inner joint housing.
13. Fill inner joint with grease from grease packet.
14. Move inner boot on shaft until boot seats in groove of
shaft and inner joint housing.
15. Secure inner boot on shaft and housing with clamps.
Tighten clamps with crimping tool J–22610.
16. Slide halfshaft splines into geared hub.
17. Apply thread-locking compound to halfshaft retaining bolt
and secure halfshaft to geared hub with lockwasher and
halfshaft retaining bolt. Tighten halfshaft retaining bolt to
37 lb-ft (50 N•m) (Figure 9-45).
18. Install washer and access plug into geared hub. Tighten
access plug to 8-13 lb-ft (11-18 N•m).
NOTE: Ensure all six bolt holes in the rotor align with holes
in output flange. Make sure mounting holes and bolts are
cleared of old Loctite.
19. Apply Loctite 272 to six bolts. Secure halfshaft to rotor
with twelve lockwashers and bolts. Tighten bolts to 48 lb-
ft (65 N•m).
20. Install wheel.
05745159
Axles, Suspension, and Frame
AXLE VENT LINE REPLACEMENT
NOTE: Axle vent line replacement procedures are basically
the same. This procedure covers the rear axle vent line.
Removal
1. Disconnect vent line from axle fitting and tee fitting and
remove vent line (Figure 9-50).
2. Remove two line clips and vent line from brake line.
3. Disconnect vent line from two tee fittings and remove vent
line.
LINE CLIPS
TEE FITTING
VENT LINE

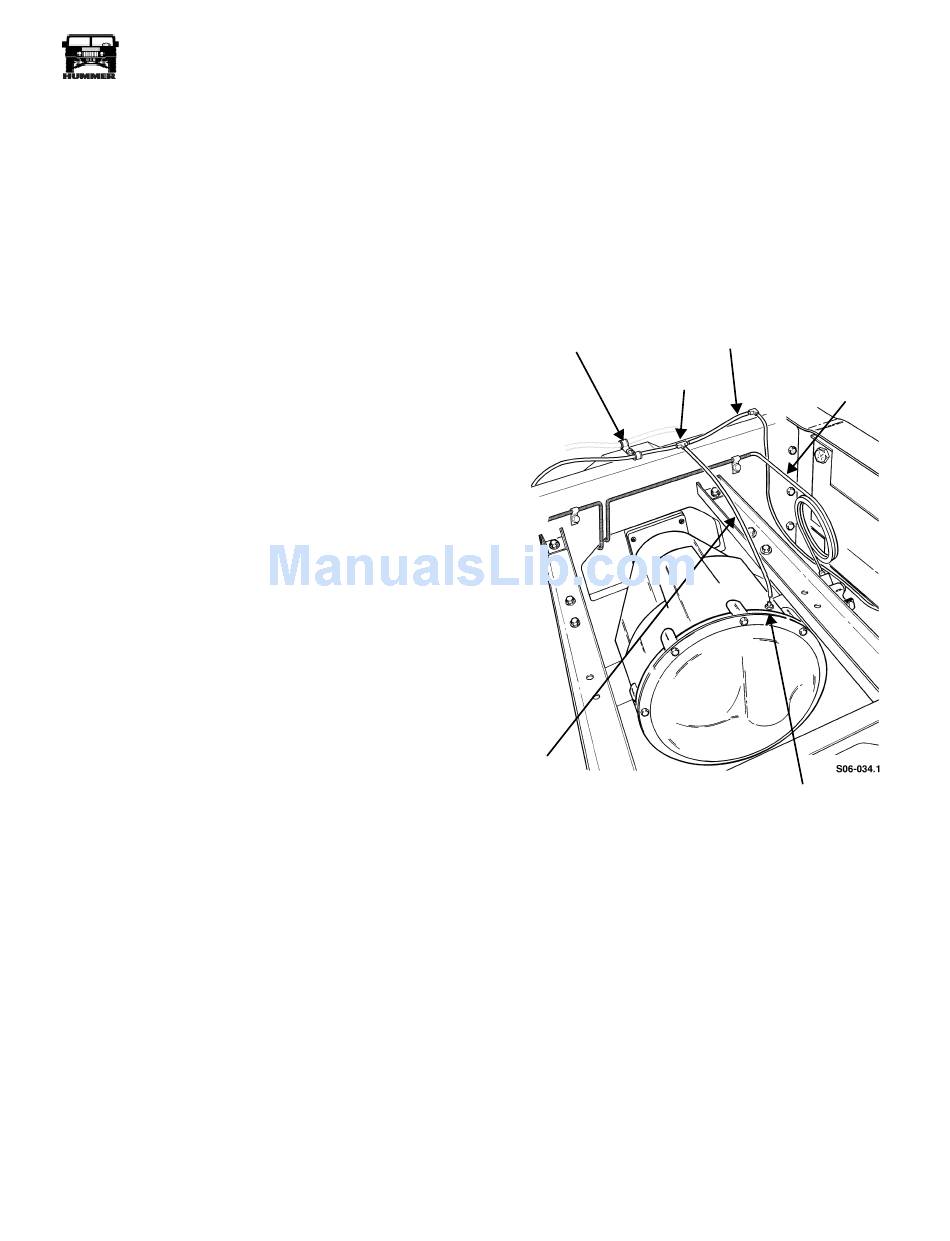

Figure 9-50: Axle Vent Line Location
Installation
1. Install vent line and connect to two tee fittings
(Figure 9-50).
2. Secure vent line to brake line with two line clips.
3. Connect vent line to axle fitting and tee fitting.
9-23
VENT LINE
BRAKE LINE
AXLE FITTING
