Brake System 7-31
®
LEVER RETAINER
AND BOOT
THRUST SCREW
CENTERING PIN
O-RING
SPACER
BLEEDER SCREW CAP
PLUG
BLEEDER SCREW
LEVER
RETURN
SPRING
PARKING
BRAKE
O-RING
LEVER
ACTUATOR
ACTUATOR SHAFT
SHAFT
DUST SEAL
O-RING
CABLE
HOUSING
CALIPER
BEARING
RACE
ACTUATOR SHAFT
THRUST
BEARING
THRUST SCREW
BEARING PLATE
ACTUATOR SHAFT
THRUST SCREW
RETAINING
BEARINGS
SPRING SHIELD
RING
THRUST SCREW
RETAINING RING
THRUST SCREW
SPRING
WAVE WASHER
BEARING RACE
THRUST BEARING
CONE CLUTCH
PISTON SEAL
CALIPER PISTON
O-RING
PISTON RETAINING SCREW
PISTON DUST BOOT

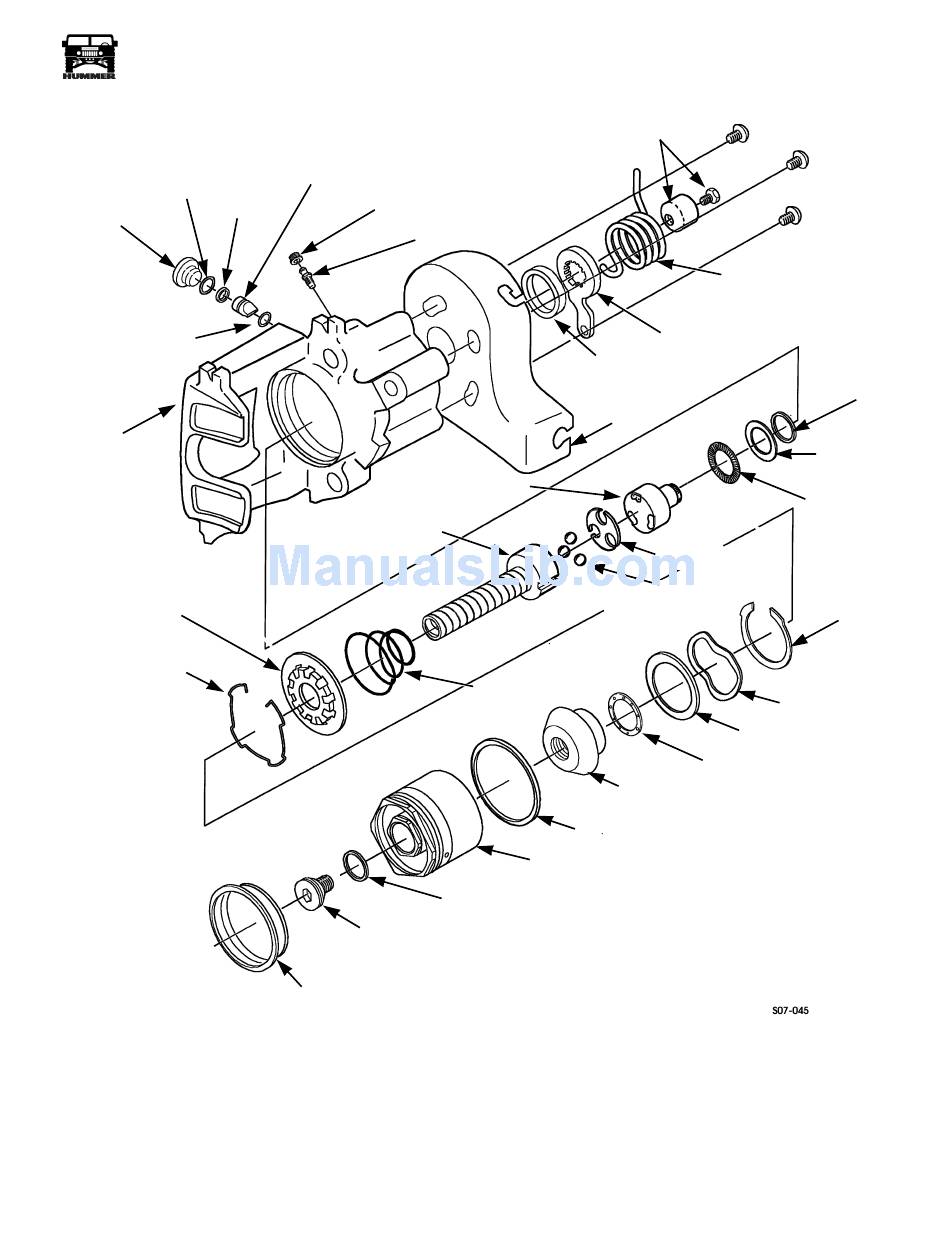

Figure 7-37: Rear Caliper
