Hummer H1 Service Manual page 810

Section 12 Electrical System
______________________________________________________
®
MAXIFUSE
#1 40A
EXTERIOR
STARTER
RELAY
STARTER
SOLENOID
05745159
NEUTRAL
SAFETY
SWITCH
C2-12
C4-1

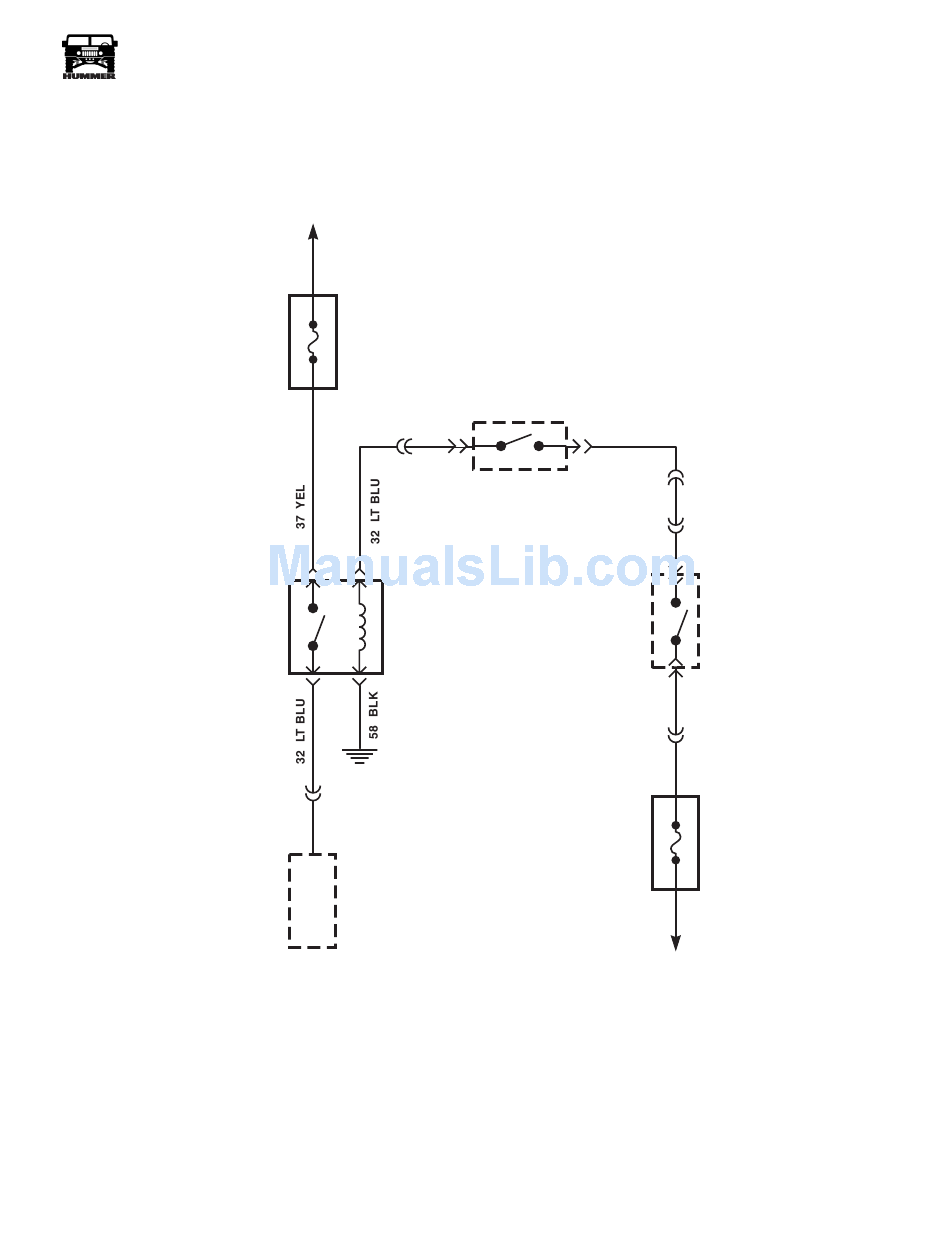

Figure 2-71: Starter System Schematic
Electrical System
33 WHT
C2-13
C1-6
IGNITION
SWITCH
C1-7
MAXIFUSE
#8 40A
EXTERIOR
TO
BATTERY
9-S12-087.2
12-39
4-1-00
