Hummer H1 Service Manual page 834

______________________________________________________
®
05745159
TO
REMOTE
ENTRY
MODULE
FUSE
1D
20 AMP
EXTERIOR
FUSE
BOX
TO
BATT
HORN ADAPTER
HORN ADAPTER
00-S12-007

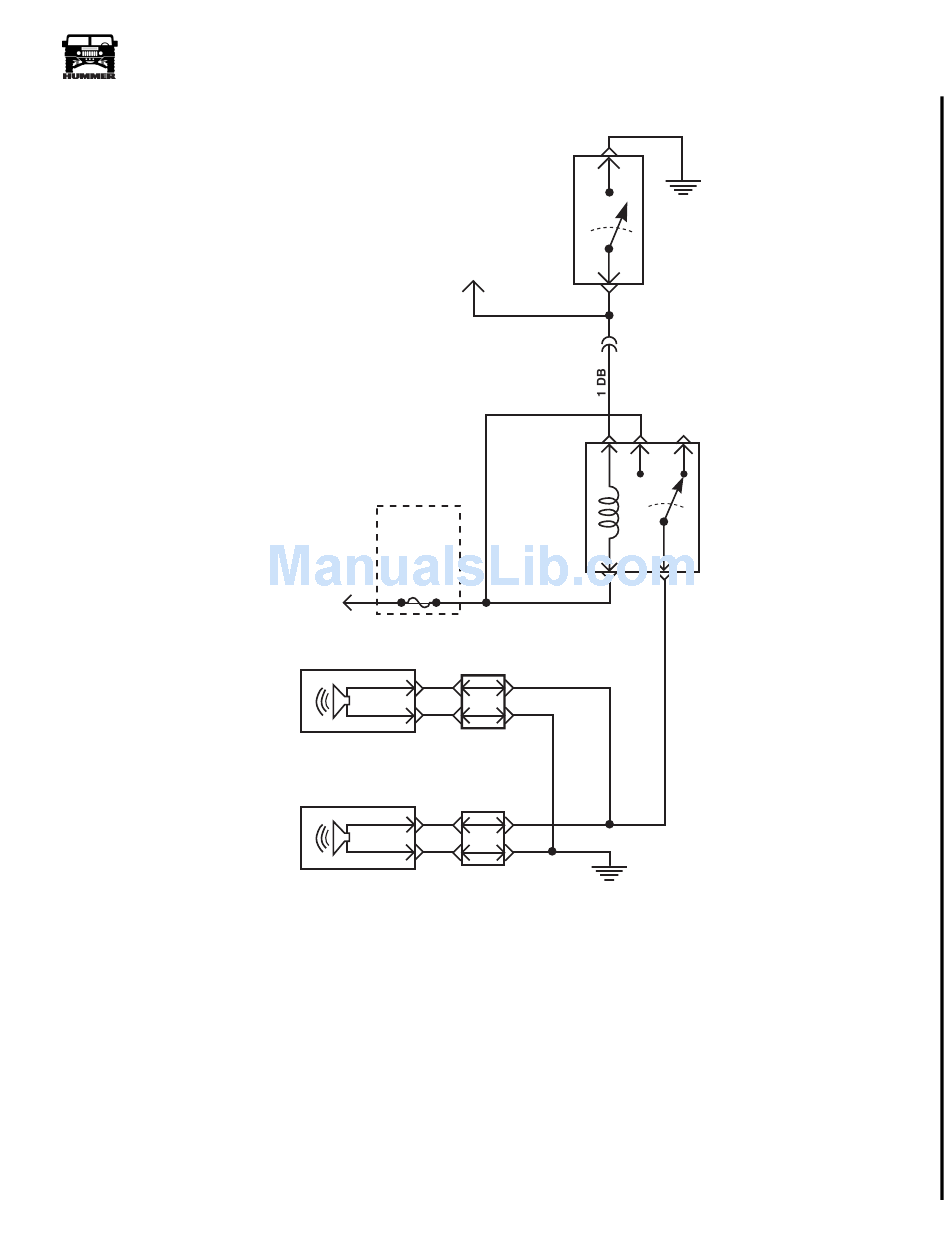

Figure 2-82: Horn Schematic
Electrical System
460 BK
HORN
SWITCH
C39-C
C1-62
7 RD
3F 3E
HORN RELAY
EXTERIOR
FUSE BOX
1E 1F
7 RD
6 WH
58 BK
G2
12-63
G4
4-1-00
