RIGHT INTERMEDIATE BODY MOUNT BRACKET

REPLACEMENT
Removal
1. Remove right intermediate body mount (Section 10).
2. Remove three bolts, washers, and body mount bracket
from frame rail (Figure 9-135).
LOWER
CUSHION

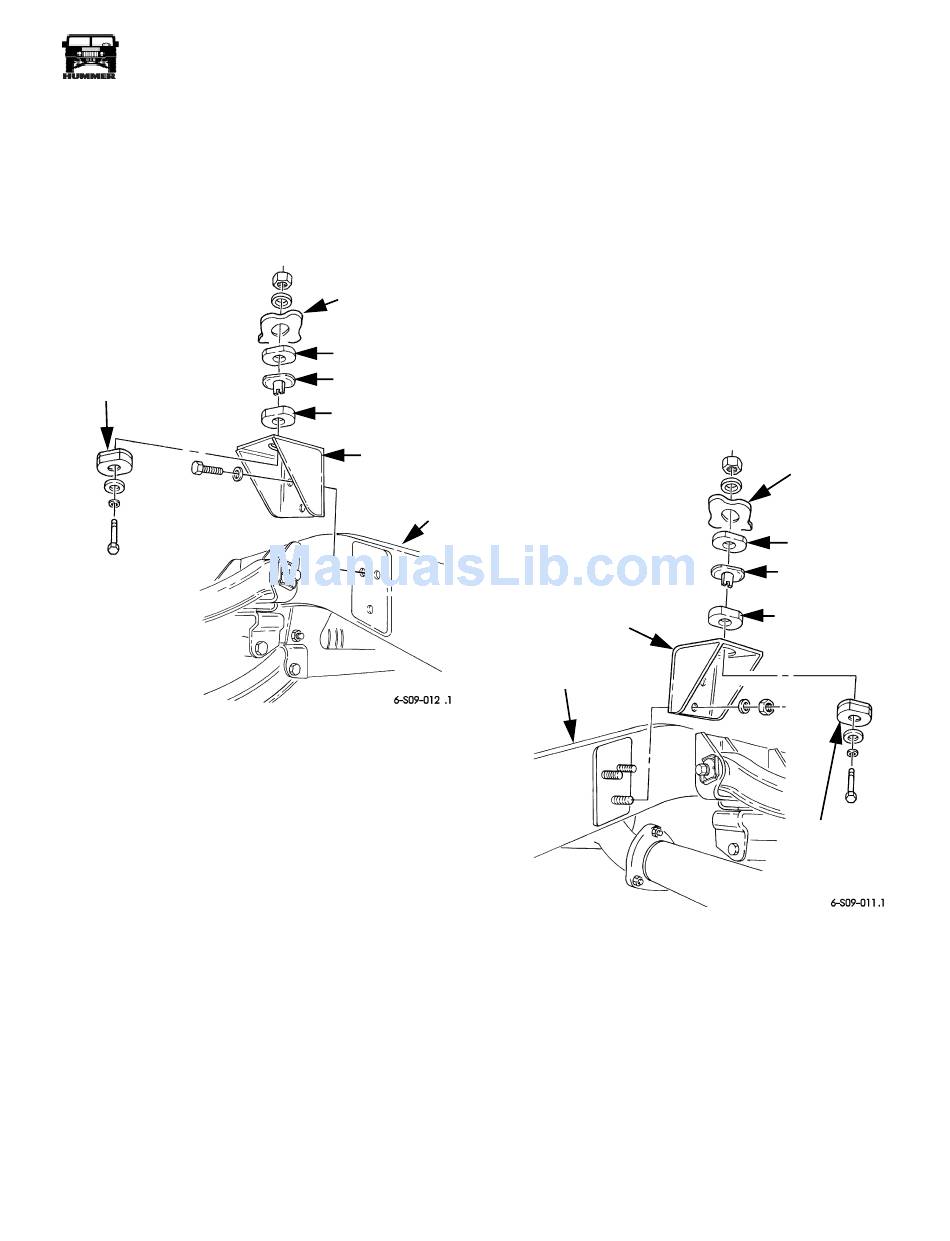

Figure 9-135: Right Intermediate Body Mount
Bracket Replacement
Installation
1. Apply thread-locking compound to three bolts and install
body mount bracket on frame rail with three washers and
bolts. Tighten bolts to 90 lb-ft (122 N•m) (Figure 9-135).
2. Install right intermediate body mount (Section 10).
05745159

LEFT INTERMEDIATE BODY MOUNT BRACKET

REPLACEMENT
Removal
1.
2.
3.
Installation
BODY
1.
SPACER
SLEEVE
2.
3.
UPPER
CUSHION
BODY
MOUNT
BRACKET
FRAME
RAIL
Figure 9-136: Left Intermediate Body Mount Bracket
Axles, Suspension, and Frame
Remove left intermediate body mount (Section 10).
Remove tailpipe hanger (Section 11).
Remove three locknuts, washers, and body mount bracket
from frame rail (Figure 9-136).
Install body mount bracket on three bolts and frame rail
with three washers and locknuts. Tighten locknuts to 90 lb-
ft (122 N•m) (Figure 9-136).
Install tailpipe hanger (Section 11).
Install left intermediate body mount (Section 10).
BODY
MOUNT
BRACKET
FRAME
RAIL
Replacement
9-57
BODY
SPACER
SLEEVE
UPPER
CUSHION
LOWER
CUSHION
