8.17 PCI Backplane

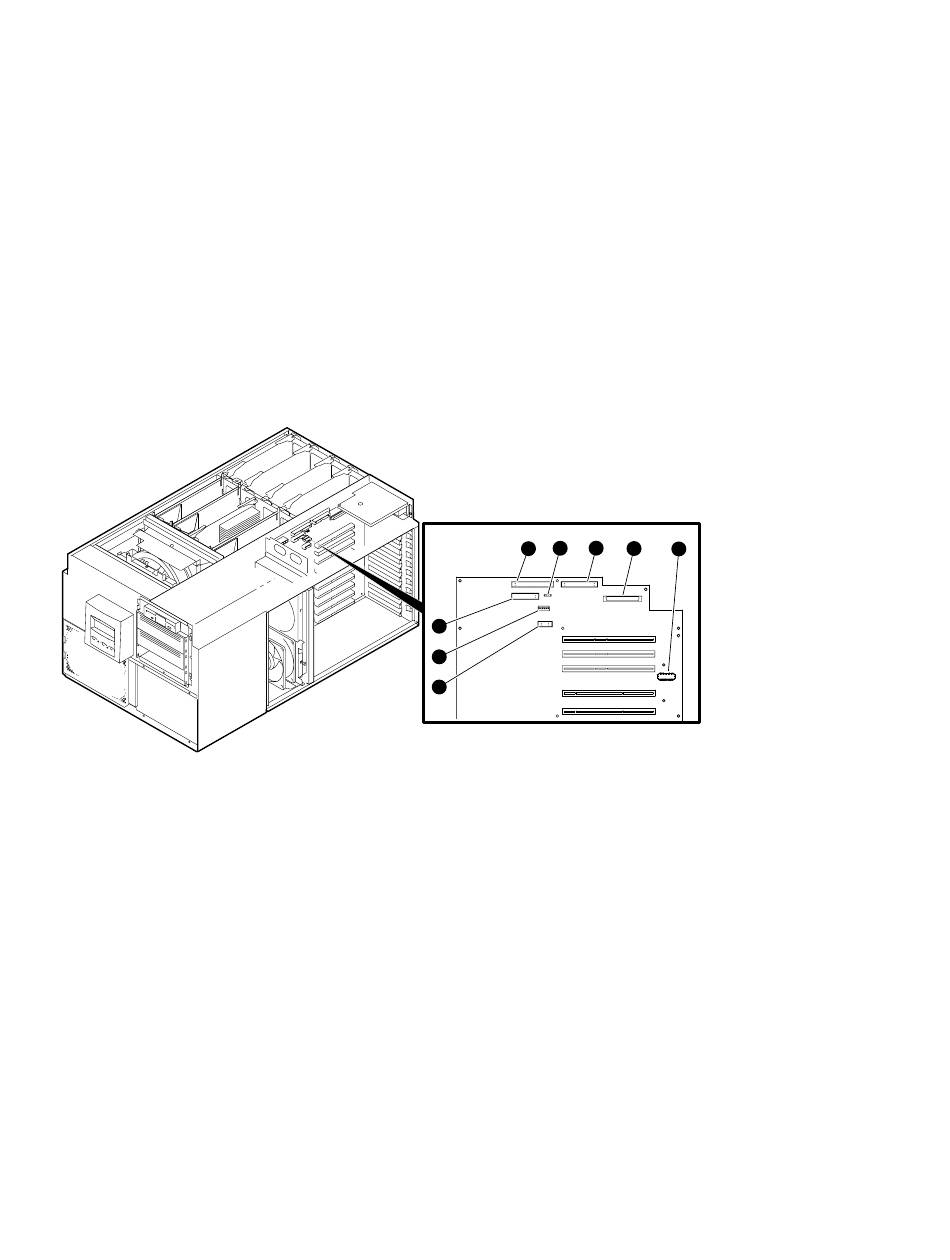

Figure 8–27 Cables Connected to PCI Backplane
Cable
17-05021-01
17-03970-04
17-04400-06
70-31349-01
17-04785-01
17-04786-01
17-03971-07
17-05042-01
5
6
7
Connects To:
CD-ROM
Floppy
I/O controller module
Speaker
Fans
Cover sensors
OCP
Hot swap module
FRU Removal and Replacement
1 4 2 3 8
PK0279
8-57
