Caution:
Wear safety goggles when drilling anchor holes. For all drilling, use the appropriate tools
and follow local codes. Obey all safety and warning precautions provided by the hammer
drill and anchor bolt manufacturers.
3. Using a carbide-tipped drill bit, hammer drill the holes to 100 mm.
Note:
The holes must be drilled straight and perpendicular to the floor surface for the anchors
to be installed correctly.
4. Remove debris from the holes with a blowout bulb or compressed air. Use a vacuum to
dispose of the debris.

Installing Anchor Brackets on 84 inch Cabinet

The 84 inch cabinet is equipped with four double wheel casters. The cabinet is shipped with the
seismic brackets in a raised position that allows for a 1/2 inch clearance. These brackets can be
removed to allow movement of the cabinet up or down on an incline.
The brackets must be reinstalled on the cabinet in the extended position to secure the MPS 1000 to
the concrete floor. There are ten 3/4 inch bolts that must be removed and replaced when the
brackets are repositioned in the extended position.
These bolts require a 3/4 inch wrench to install and must be torqued to 60 ft-lb of tension.

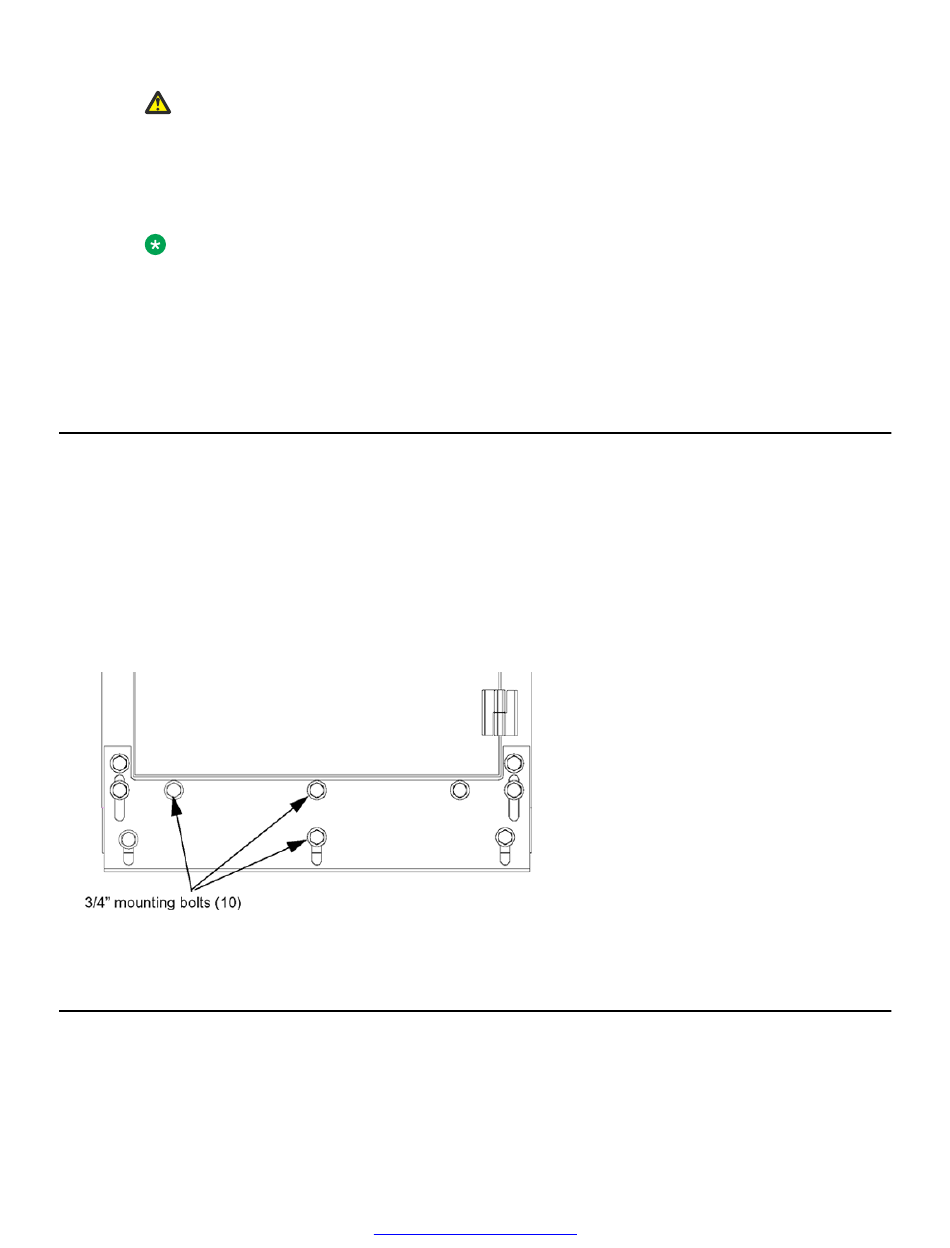

Figure 27: Cabinet Base Pattern

Installing Anchors

The following tools and material are required to install the anchors:
• 4 (A0874040) expansion anchors
