Setting Up the Async Ports
Ports 3 and 4 are set to 38400 baud and are used with the high-speed ttyb ports on Sparc based
machines.
Copying Port Parameters

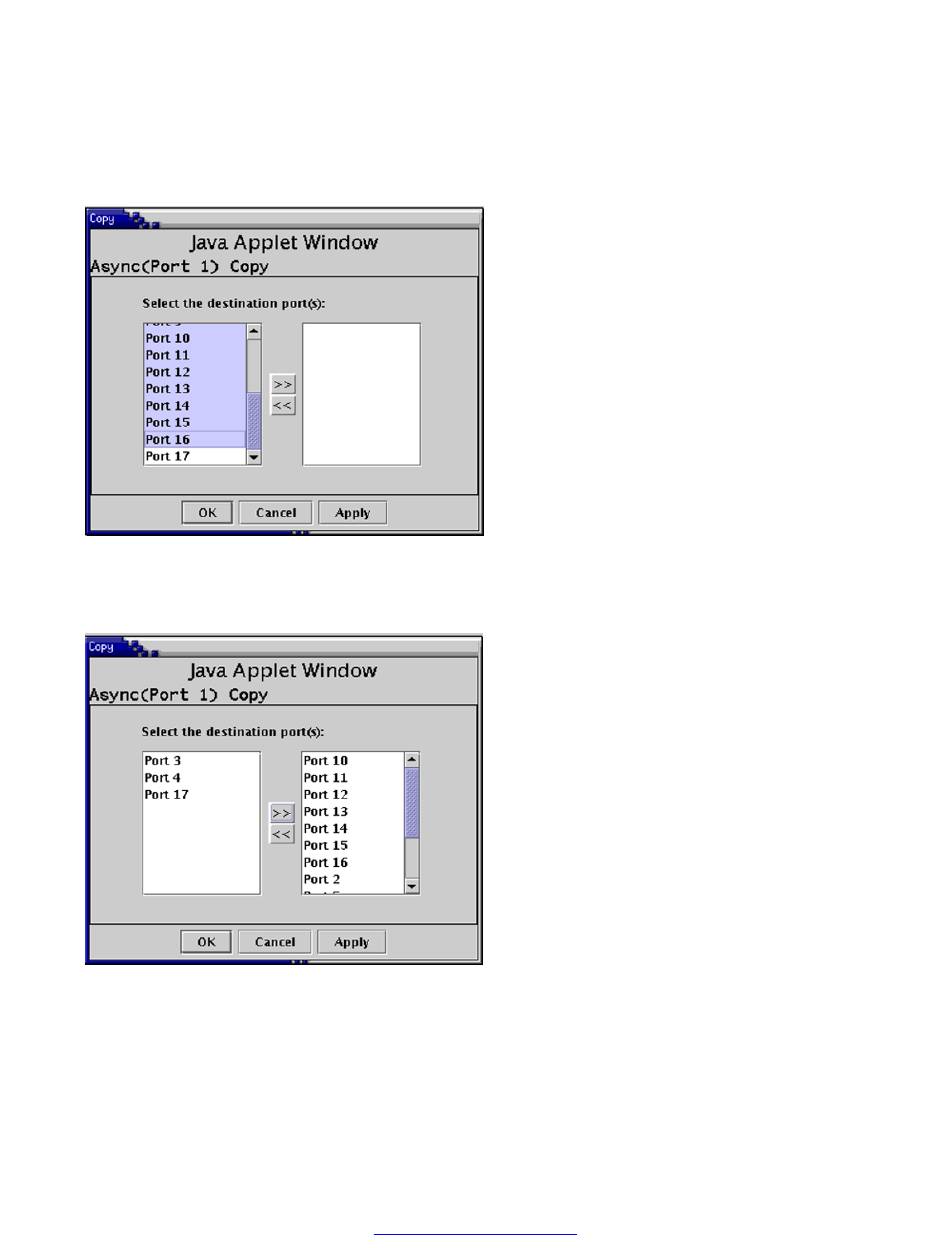

Click Copy and the following dialog box appears.
Copy the parameters to multiple ports by selecting the desired ports on the left and clicking the >>
button. Observe that ports 3, 4 and 17 are not copied.
Click Apply at the bottom of the Copy window. Compare your results with the following dialog box.
Ports 3 and 4 are configured as shown in the following window.
