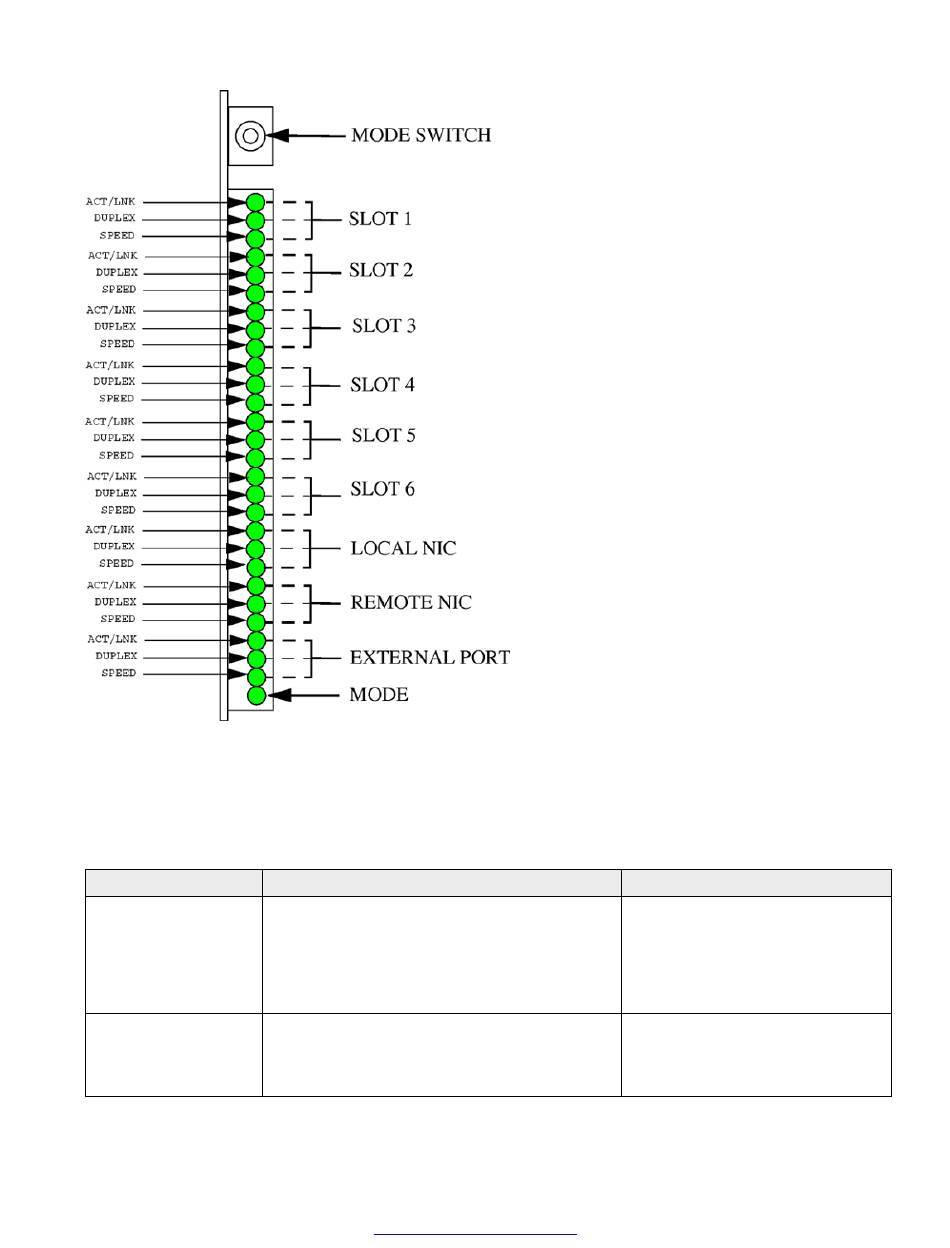

Figure 53: ESC 2000 LED Layout ACT/LNK
In addition to the status of both switches, you can select a mode to display the switch load activity in
a bar graph format on the LEDs. Use the Mode Switch to select LED mode. The states controlled by
the mode switch are shown in the following table.
Mode Switch State
1
2
October 2014
LED Status
Switch A port status
• Link/Activity
• Duplex setting (full/half)
• Speed (10/100)
Switch B port status
• Link/Activity
• Duplex setting (full/half)
Avaya Media Processing Server 1000 Hardware Installation and Maintenance
Comments? infodev@avaya.com
ESC 2000 LED Status Interface
Mode Indication Led
Mode Led off
Mode Led on
