Operation and Administration

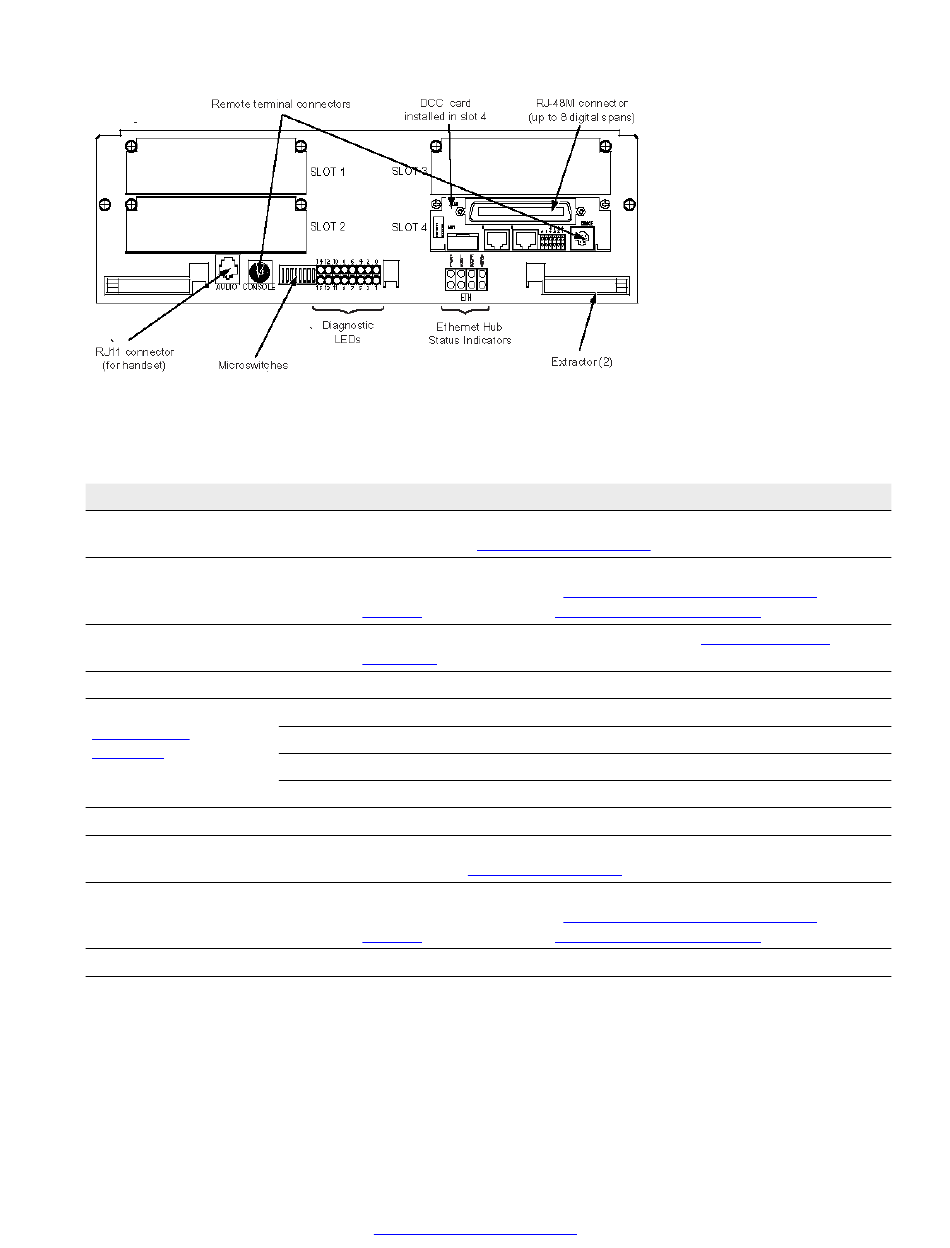

Figure 51: TMS Front Panel DCC Card
Table 11: TMS Front Panel Connectors and Indicators
Item
AUDIO connector
CONSOLE connector
LEDs 0 - 15
Microswitches
HUB LEDs, see
Ethernet Hub
Indicators on page 163.
Span connector
Remote terminal connector
Other connectors and indicators
Avaya Media Processing Server 1000 Hardware Installation and Maintenance
162
Description
RJ11 jack for connecting a telephone handset to audibly monitor an
MPS line. (See
RS232 (9-pin DIN) port for connecting a debug terminal. Used for boot
ROM and diagnostics. See
Settings on page 139 and
Provide diagnostic indications on startup. See
Sequence on page 148.
Reserved for future enhancement.
COL Indicates errors or collisions in HUB.
LNK Indicates link status.
FDX Indicates full duplex mode status.
ACT Indicates activity status.
DCC Front Panel
RJ48M 50-pin connector connects up to eight digital spans (T1 or E1)
to PSTN. See
RS232 (9-pin DIN) port for connecting a debug terminal. Used for boot
ROM and diagnostics. See
Settings on page 139 and
Reserved for future enhancement.
