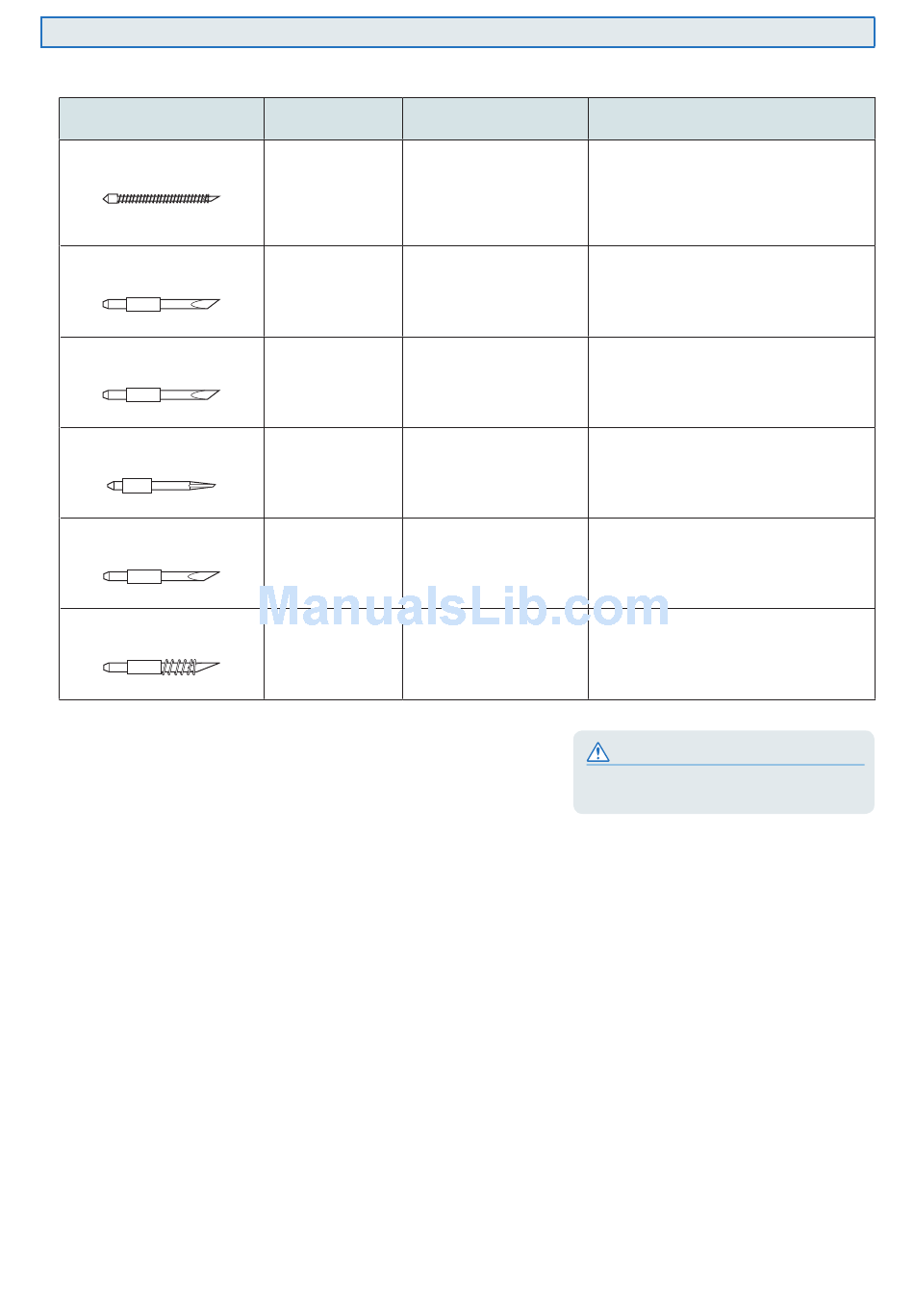

Blade Application and Features

cutter blades have a variety of features. Select the optimal cutter blade to suit the medium to be cut.
Individual
Blade part no. and
type
CB09UA
CB15U
CB15UA
CB15UB
CB15U-K30
CB15U-K20-SP
Diameter
part no.
0.9 mm PHP32-CB09N-HS
1.5 mm PHP32-CB15N-HS
1.5 mm PHP32-CB15N-HS
1.5 mm PHP32-CB15N-HS
1.5 mm PHP32-CB15N-HS
1.5 mm PHP31-CB15B-HS
2-3
Plunger
Applications and features
Standard blade for cutting color
adhesive media. Suitable for cutting
media up to 0.25 mm thick.
Maximum cutting distance of
approximately 4000 m.
For cutting media which is too thick
for the CB09UA blade to handle.
Suitable for cutting media from 0.25
mm to 0.5 mm thick.
For cutting high intensity refective
media.
For cutting small characters on mono-
vinyl chloride media. Suitable for
cutting small size characters that are
less than 10 mm.
For thick media. The sharply angled
point provides a longer cutting edge.
Suitable for cutting material from 0.5
mm to 1.5 mm thick.
For cutting sandblast rubber.
CAUTION
T o avoid bodily injury, handle cutter blades with
care.
