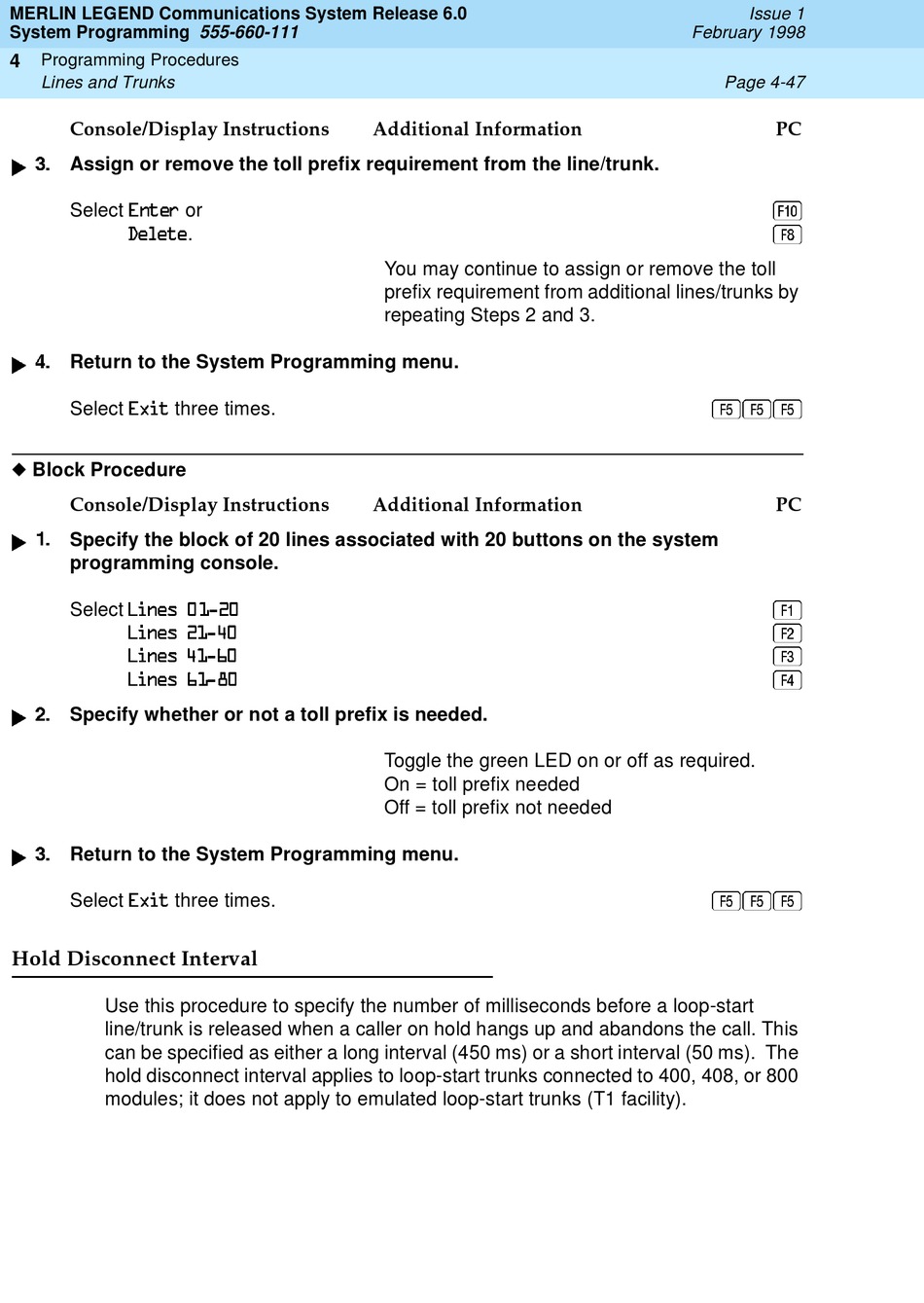

Lucent Technologies MERLIN LEGEND Release 6.0 System Programming Manual page 517

MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Programming Procedures
Lines and Trunks
Console/Display Instructions
Assign or remove the toll prefix requirement from the line/trunk.
!
Select
Return to the System Programming menu.
!
Select three times.
Block Procedure
Console/Display Instructions
Specify the block of 20 lines associated with 20 buttons on the system
!
programming console.
Select
Specify whether or not a toll prefix is needed.
!
Return to the System Programming menu.
!
Select three times.
Hold Disconnect Interval
Use this procedure to specify the number of milliseconds before a loop-start
line/trunk is released when a caller on hold hangs up and abandons the call. This
can be specified as either a long interval (450 ms) or a short interval (50 ms). The
hold disconnect interval applies to loop-start trunks connected to 400, 408, or 800
modules; it does not apply to emulated loop-start trunks (T1 facility).
or
.
Additional Information
You may continue to assign or remove the toll
prefix requirement from additional lines/trunks by
repeating Steps 2 and 3.
Additional Information
Toggle the green LED on or off as required.
On = toll prefix needed
Off = toll prefix not needed
4
Issue 1
February 1998
Page 4-47
