MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Common Administrative Procedures
Data Features

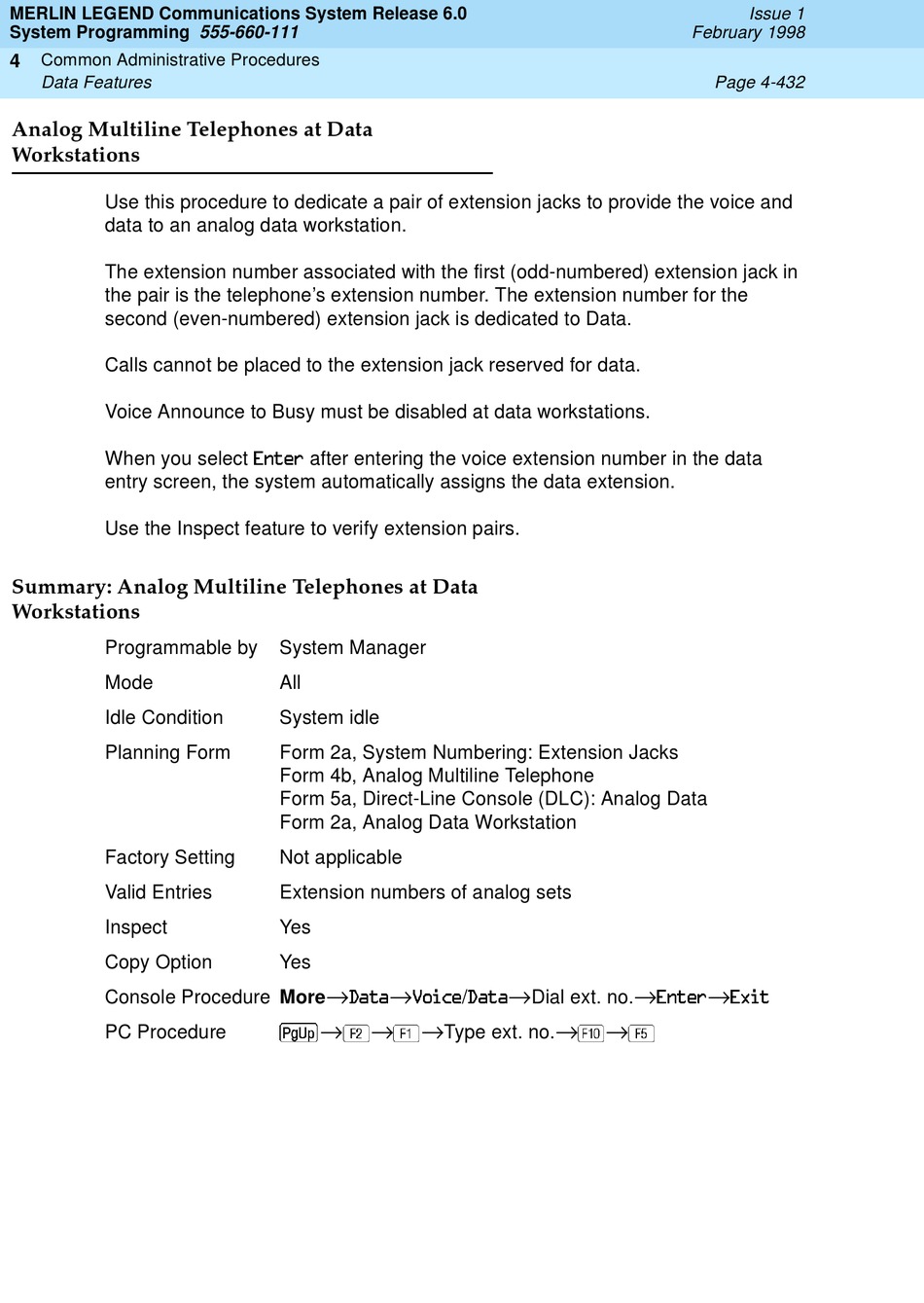

Analog Multiline Telephones at Data
Workstations
Use this procedure to dedicate a pair of extension jacks to provide the voice and
data to an analog data workstation.
The extension number associated with the first (odd-numbered) extension jack in
the pair is the telephone's extension number. The extension number for the
second (even-numbered) extension jack is dedicated to Data.
Calls cannot be placed to the extension jack reserved for data.
Voice Announce to Busy must be disabled at data workstations.
When you select
entry screen, the system automatically assigns the data extension.
Use the Inspect feature to verify extension pairs.
Summary: Analog Multiline Telephones at Data
Workstations
Programmable by
Mode
Idle Condition
Planning Form
Factory Setting
Valid Entries
Inspect
Copy Option
Console Procedure More
PC Procedure
after entering the voice extension number in the data
System Manager
All
System idle
Form 2a, System Numbering: Extension Jacks
Form 4b, Analog Multiline Telephone
Form 5a, Direct-Line Console (DLC): Analog Data
Form 2a, Analog Data Workstation
Not applicable
Extension numbers of analog sets
Yes
Yes

Ä Ã
Type ext. no.
4
4
 Ç
/ Dial ext. no.
Issue 1
February 1998
Page 4-432
