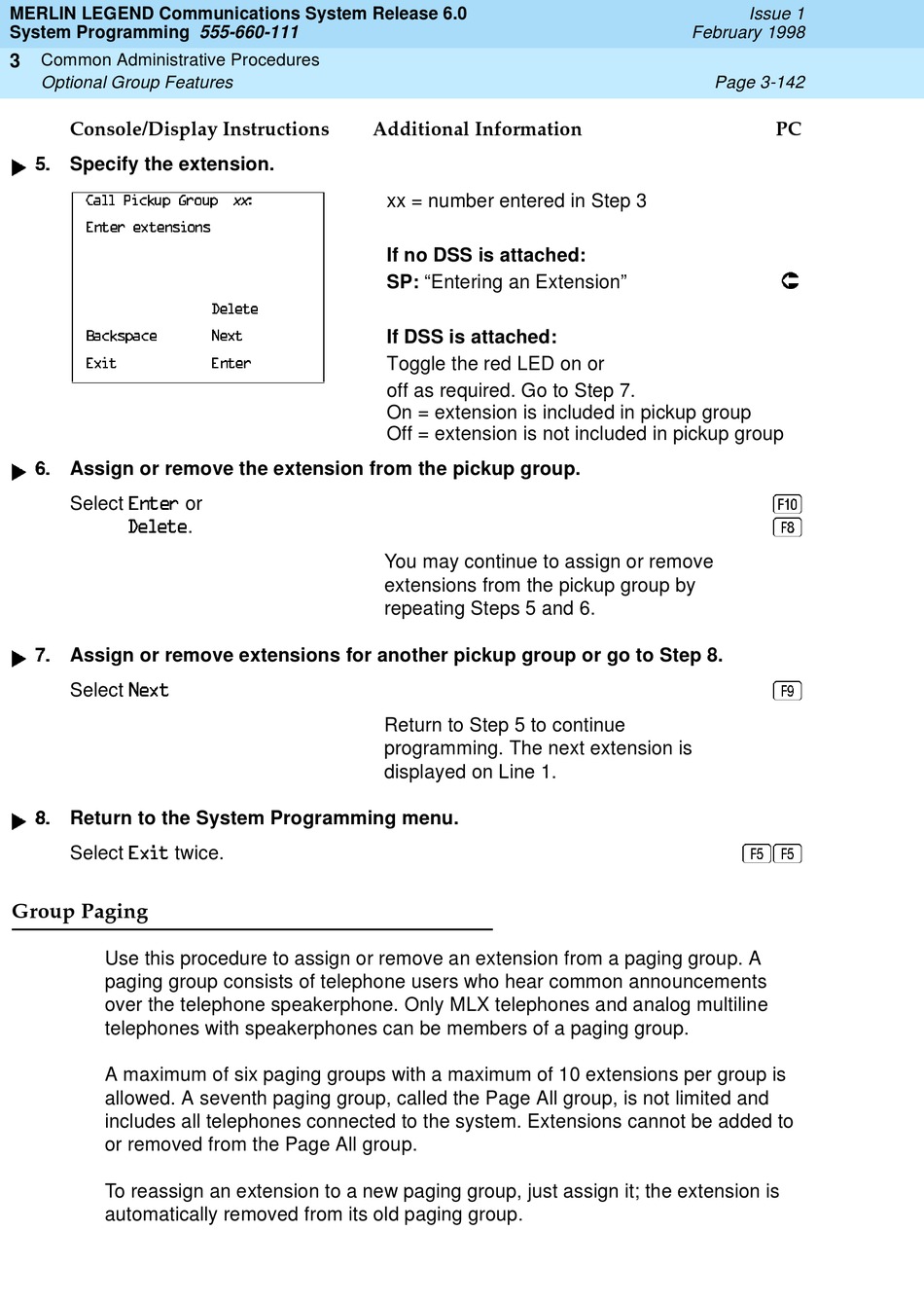

Lucent Technologies MERLIN LEGEND Release 6.0 System Programming Manual page 320

MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
3 Common Administrative Procedures
Optional Group Features
Console/Display Instructions
Specify the extension.
!
Assign or remove the extension from the pickup group.
!
Select
Assign or remove extensions for another pickup group or go to Step 8.
!
Select
Return to the System Programming menu.
!
Select twice.
Group Paging
Use this procedure to assign or remove an extension from a paging group. A
paging group consists of telephone users who hear common announcements
over the telephone speakerphone. Only MLX telephones and analog multiline
telephones with speakerphones can be members of a paging group.
A maximum of six paging groups with a maximum of 10 extensions per group is
allowed. A seventh paging group, called the Page All group, is not limited and
includes all telephones connected to the system. Extensions cannot be added to
or removed from the Page All group.
To reassign an extension to a new paging group, just assign it; the extension is
automatically removed from its old paging group.
YY
or
.
Additional Information
xx = number entered in Step 3
If no DSS is attached:
SP: "Entering an Extension"
If DSS is attached:
Toggle the red LED on or
off as required. Go to Step 7.
On = extension is included in pickup group
Off = extension is not included in pickup group
You may continue to assign or remove
extensions from the pickup group by
repeating Steps 5 and 6.
Return to Step 5 to continue
programming. The next extension is
displayed on Line 1.
3
Issue 1
February 1998
Page 3-142
