MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
3 Common Administrative Procedures
Optional Extension Features

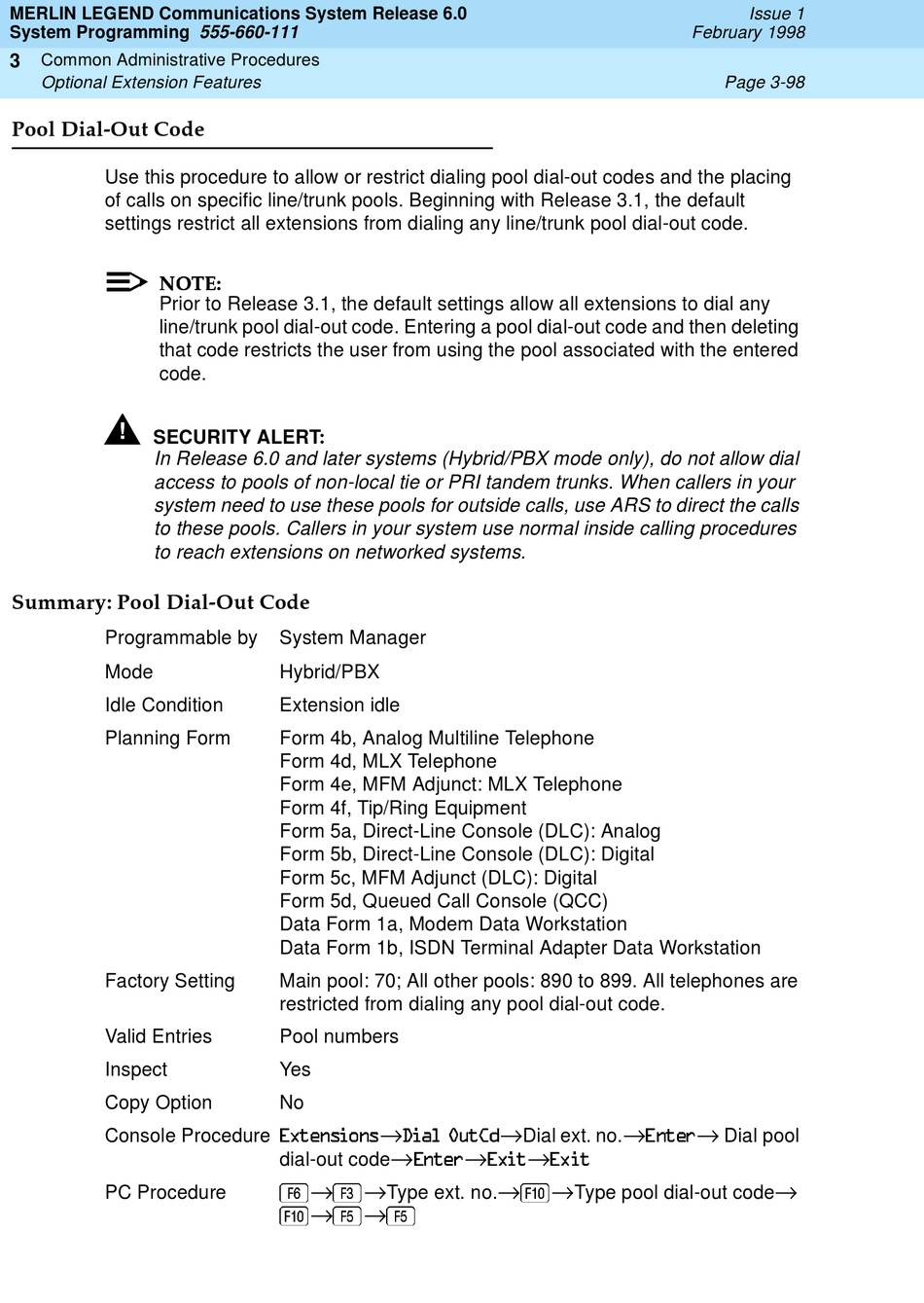

Pool Dial-Out Code
Use this procedure to allow or restrict dialing pool dial-out codes and the placing
of calls on specific line/trunk pools. Beginning with Release 3.1, the default
settings restrict all extensions from dialing any line/trunk pool dial-out code.
NOTE: NOTE: NOTE:
Prior to Release 3.1, the default settings allow all extensions to dial any
line/trunk pool dial-out code. Entering a pool dial-out code and then deleting
that code restricts the user from using the pool associated with the entered
code.
!
SECURITY ALERT
In Release 6.0 and later systems (Hybrid/PBX mode only), do not allow dial
access to pools of non-local tie or PRI tandem trunks. When callers in your
system need to use these pools for outside calls, use ARS to direct the calls
to these pools. Callers in your system use normal inside calling procedures
to reach extensions on networked systems.
Summary: Pool Dial-Out Code
Programmable by
Mode
Idle Condition
Planning Form
Factory Setting
Valid Entries
Inspect
Copy Option
Console Procedure @‘‡r†v‚†
PC Procedure
:
System Manager
Hybrid/PBX
Extension idle
Form 4b, Analog Multiline Telephone
Form 4d, MLX Telephone
Form 4e, MFM Adjunct: MLX Telephone
Form 4f, Tip/Ring Equipment
Form 5a, Direct-Line Console (DLC): Analog
Form 5b, Direct-Line Console (DLC): Digital
Form 5c, MFM Adjunct (DLC): Digital
Form 5d, Queued Call Console (QCC)
Data Form 1a, Modem Data Workstation
Data Form 1b, ISDN Terminal Adapter Data Workstation
Main pool: 70; All other pools: 890 to 899. All telephones are
restricted from dialing any pool dial-out code.
Pool numbers
Yes
No
9vhyÃPˆ‡8q
È Å
@‡r…
dial-out code
 Ç Ç
Type ext. no.
3
3
@‡r…
Dial ext. no.

@‘v‡ @‘v‡
Type pool dial-out code
Issue 1
February 1998
Page 3-98
Dial pool
