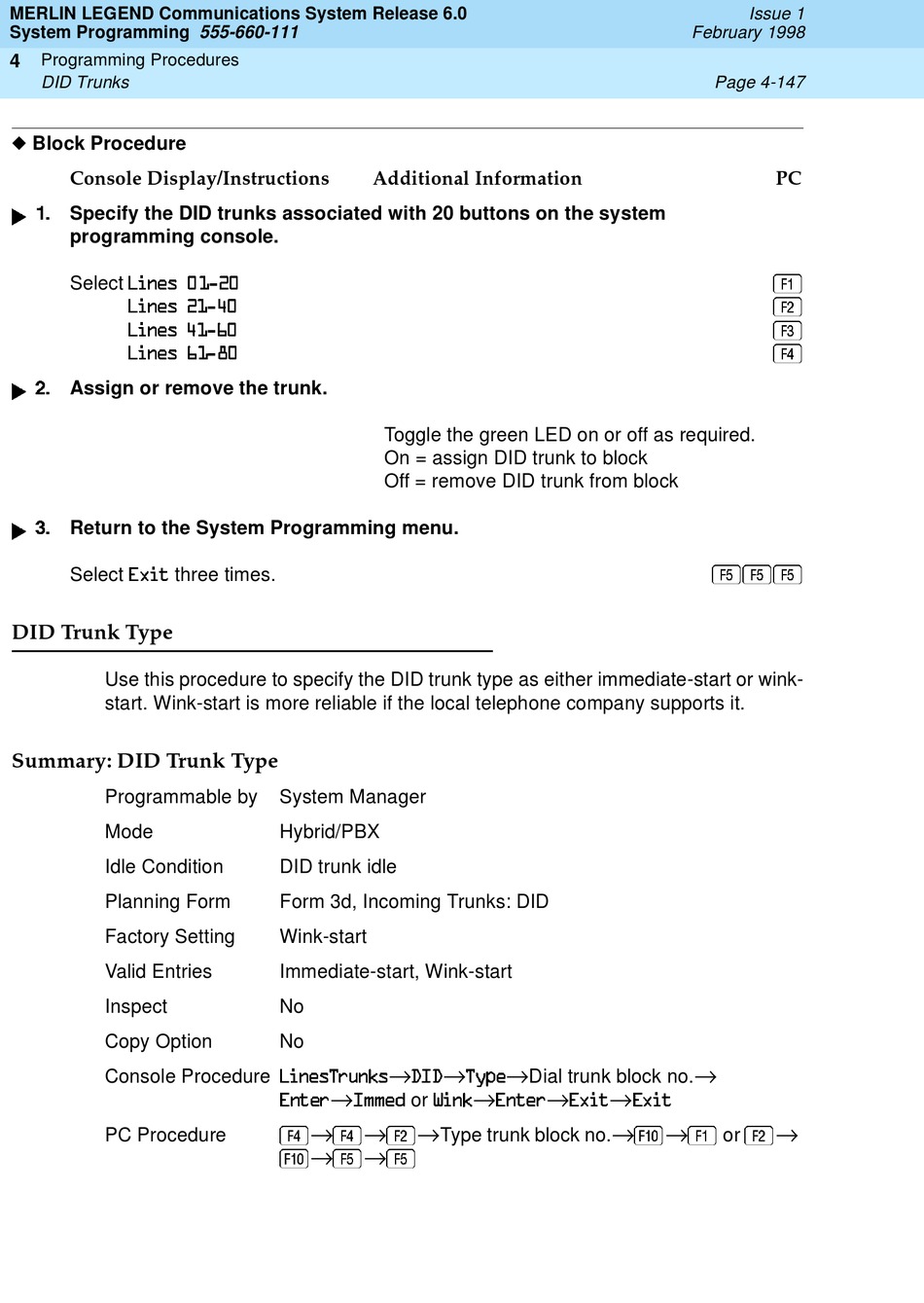

Lucent Technologies MERLIN LEGEND Release 6.0 System Programming Manual page 617

MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Programming Procedures
DID Trunks
Block Procedure
Console Display/Instructions
Specify the DID trunks associated with 20 buttons on the system
!
programming console.
Select Gvr†Ã !
Assign or remove the trunk.
!
Return to the System Programming menu.
!
Select three times.
DID Trunk Type
Use this procedure to specify the DID trunk type as either immediate-start or wink-
start. Wink-start is more reliable if the local telephone company supports it.
Summary: DID Trunk Type
Programmable by
Mode
Idle Condition
Planning Form
Factory Setting
Valid Entries
Inspect
Copy Option
Console Procedure
PC Procedure
Additional Information
Toggle the green LED on or off as required.
On = assign DID trunk to block
Off = remove DID trunk from block
System Manager
Hybrid/PBX
DID trunk idle
Form 3d, Incoming Trunks: DID
Wink-start
Immediate-start, Wink-start
No
No
Æ Æ Ä
or
 Ç Ç
Type trunk block no.
4
4
Dial trunk block no.
 Ã
Issue 1
February 1998
Page 4-147
PC
à Ä
Å Æ
ÇÇÇ
Ä
or
