MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Programming Procedures
Lines and Trunks
Console/Display Instructions

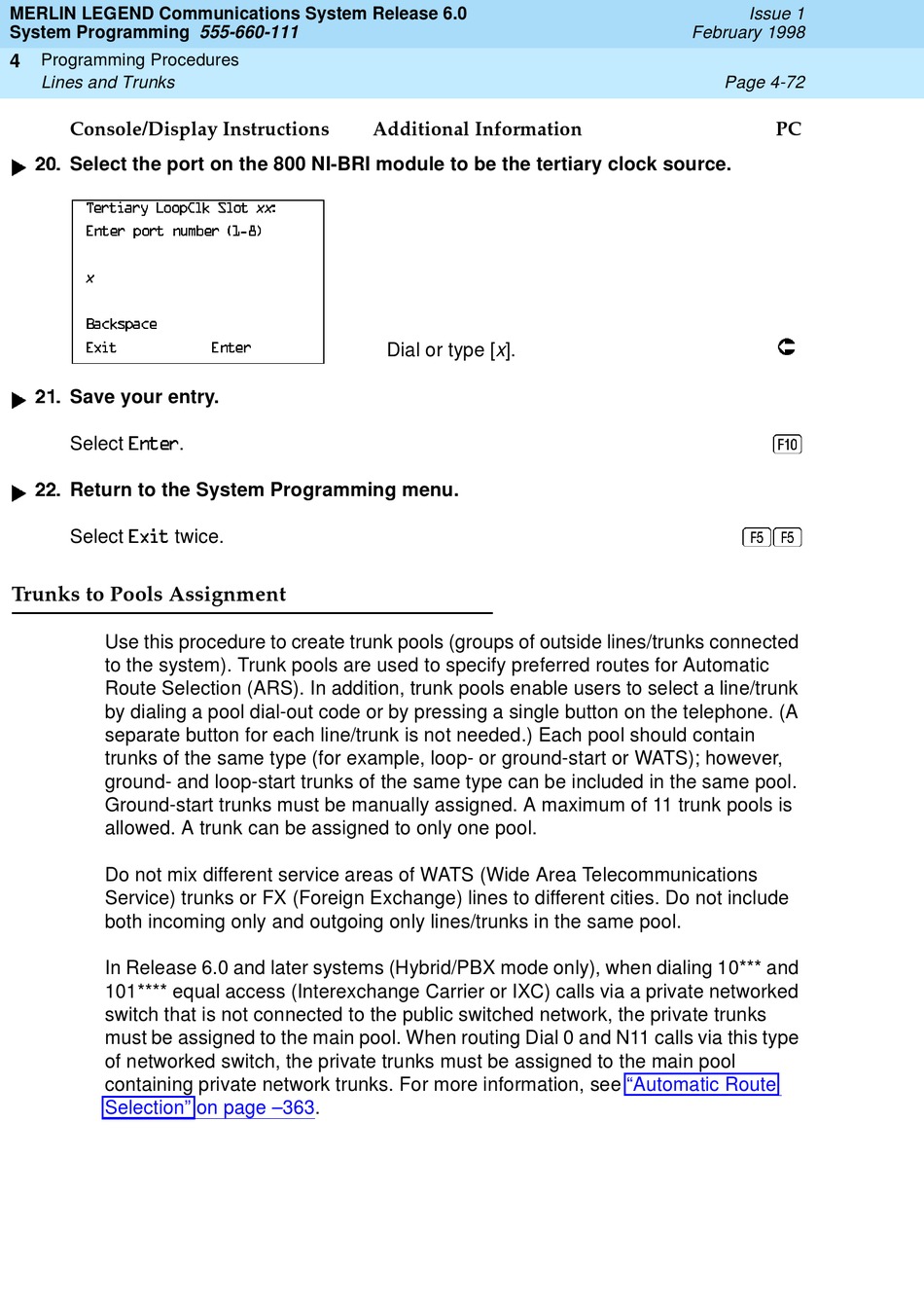

Select the port on the 800 NI-BRI module to be the tertiary clock source.
!
Ur…‡vh…’ÃG‚‚ƒ8yxÃTy‚‡ÃYY)
@‡r…Â…‡Ãˆ€ir…à '
Y
7hpx†ƒhpr
@‘v‡
Save your entry.
!
(QWHU
Select .
Return to the System Programming menu.
!
([LW
Select twice.
Trunks to Pools Assignment
Use this procedure to create trunk pools (groups of outside lines/trunks connected
to the system). Trunk pools are used to specify preferred routes for Automatic
Route Selection (ARS). In addition, trunk pools enable users to select a line/trunk
by dialing a pool dial-out code or by pressing a single button on the telephone. (A
separate button for each line/trunk is not needed.) Each pool should contain
trunks of the same type (for example, loop- or ground-start or WATS); however,
ground- and loop-start trunks of the same type can be included in the same pool.
Ground-start trunks must be manually assigned. A maximum of 11 trunk pools is
allowed. A trunk can be assigned to only one pool.
Do not mix different service areas of WATS (Wide Area Telecommunications
Service) trunks or FX (Foreign Exchange) lines to different cities. Do not include
both incoming only and outgoing only lines/trunks in the same pool.
In Release 6.0 and later systems (Hybrid/PBX mode only), when dialing 10*** and
101**** equal access (Interexchange Carrier or IXC) calls via a private networked
switch that is not connected to the public switched network, the private trunks
must be assigned to the main pool. When routing Dial 0 and N11 calls via this type
of networked switch, the private trunks must be assigned to the main pool
containing private network trunks. For more information, see
Selection" on page
Additional Information
@‡r…
–363.
Dial or type [ x ].
4
Issue 1
February 1998
Page 4-72
PC
Ã
ÇÇ
"Automatic Route
