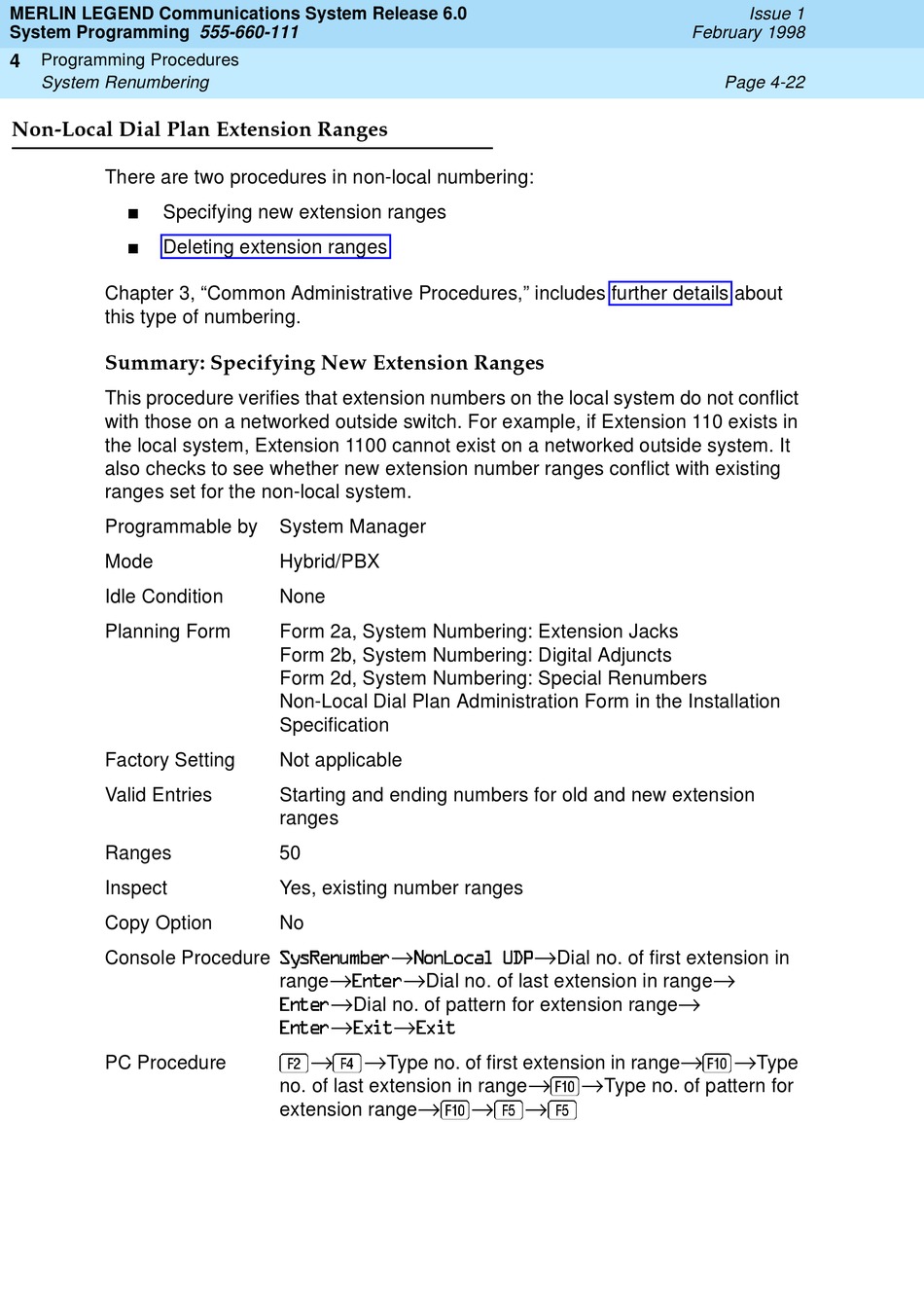

Lucent Technologies MERLIN LEGEND Release 6.0 System Programming Manual page 492

MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Programming Procedures
System Renumbering
Non-Local Dial Plan Extension Ranges
There are two procedures in non-local numbering:
Specifying new extension ranges
Deleting extension ranges
Chapter 3, "Common Administrative Procedures," includes further details about
this type of numbering.
Summary: Specifying New Extension Ranges
This procedure verifies that extension numbers on the local system do not conflict
with those on a networked outside switch. For example, if Extension 110 exists in
the local system, Extension 1100 cannot exist on a networked outside system. It
also checks to see whether new extension number ranges conflict with existing
ranges set for the non-local system.
Programmable by
Mode
Idle Condition
Planning Form
Factory Setting
Valid Entries
Ranges
Inspect
Copy Option
Console Procedure
PC Procedure
System Manager
Hybrid/PBX
None
Form 2a, System Numbering: Extension Jacks
Form 2b, System Numbering: Digital Adjuncts
Form 2d, System Numbering: Special Renumbers
Non-Local Dial Plan Administration Form in the Installation
Specification
Not applicable
Starting and ending numbers for old and new extension
ranges
50
Yes, existing number ranges
No
range Dial no. of last extension in range
Dial no. of pattern for extension range
Ä Æ
Type no. of first extension in range
 Ç Ç
no. of last extension in range
extension range
4
Dial no. of first extension in

Type no. of pattern for
Issue 1
February 1998
Page 4-22
4

Type
