MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
3
Common Administrative Procedures
Optional Extension Features

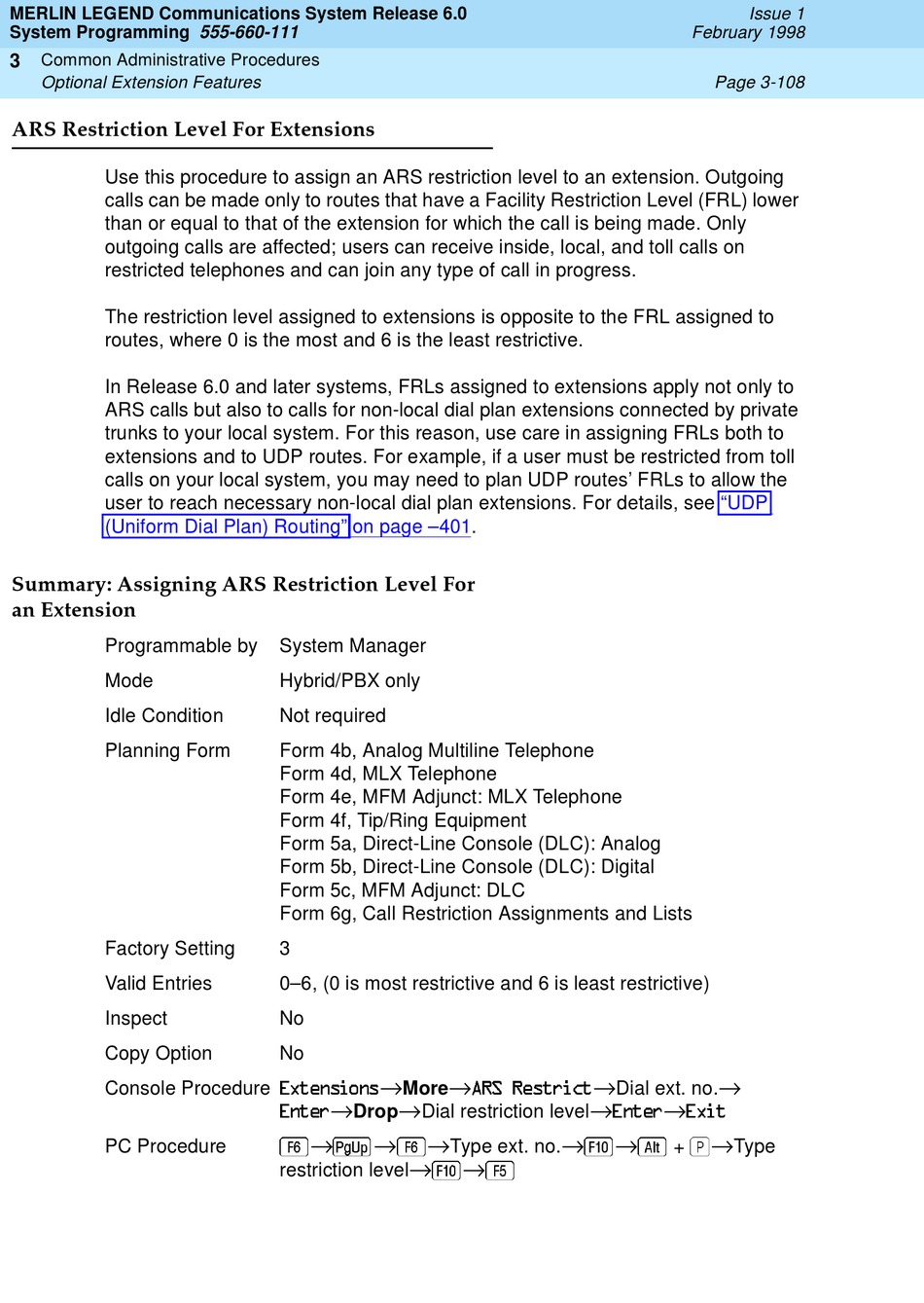

ARS Restriction Level For Extensions
Use this procedure to assign an ARS restriction level to an extension. Outgoing
calls can be made only to routes that have a Facility Restriction Level (FRL) lower
than or equal to that of the extension for which the call is being made. Only
outgoing calls are affected; users can receive inside, local, and toll calls on
restricted telephones and can join any type of call in progress.
The restriction level assigned to extensions is opposite to the FRL assigned to
routes, where 0 is the most and 6 is the least restrictive.
In Release 6.0 and later systems, FRLs assigned to extensions apply not only to
ARS calls but also to calls for non-local dial plan extensions connected by private
trunks to your local system. For this reason, use care in assigning FRLs both to
extensions and to UDP routes. For example, if a user must be restricted from toll
calls on your local system, you may need to plan UDP routes' FRLs to allow the
user to reach necessary non-local dial plan extensions. For details, see
(Uniform Dial Plan) Routing" on page
Summary: Assigning ARS Restriction Level For
an Extension
Programmable by
Mode
Idle Condition
Planning Form
Factory Setting
Valid Entries
Inspect
Copy Option
Console Procedure @rv
PC Procedure
–401.
System Manager
Hybrid/PBX only
Not required
Form 4b, Analog Multiline Telephone
Form 4d, MLX Telephone
Form 4e, MFM Adjunct: MLX Telephone
Form 4f, Tip/Ring Equipment
Form 5a, Direct-Line Console (DLC): Analog
Form 5b, Direct-Line Console (DLC): Digital
Form 5c, MFM Adjunct: DLC
Form 6g, Call Restriction Assignments and Lists
3
0–6, (0 is most restrictive and 6 is least restrictive)
No
No
More
È È
@r
Drop
Dial restriction level
Ç
Type ext. no.
restriction level
3
3
6STÃSr
vp
Dial ext. no.
U
@r
Issue 1
February 1998
Page 3-108
"UDP
@v
+
Type
